• Model NO.：937h
• Type：Small Loader
• Transport Package：Nude
• Specification：1.7cbm
• Trademark：CHANGLIN
• Origin：Jiangsu China
• HS Code：84295100

Basic Info.

Model NO. 937h Type Small Loader Transport Package Nude Specification 1.7cbm Trademark CHANGLIN Origin Jiangsu China HS Code 84295100

Product Description

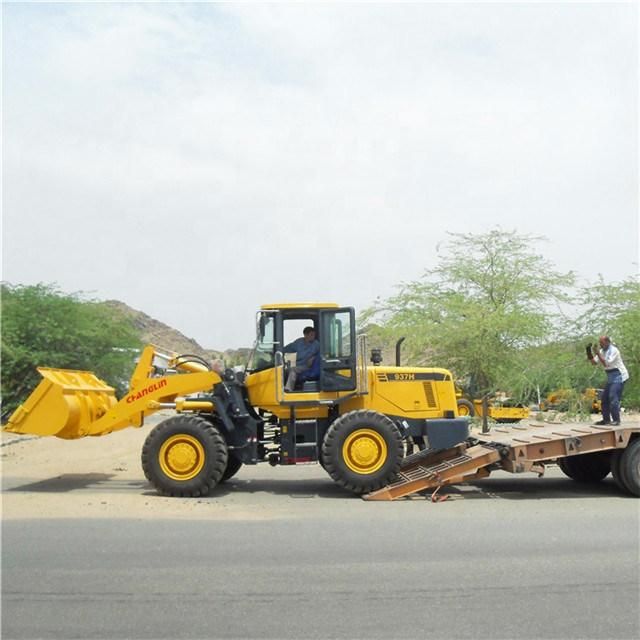

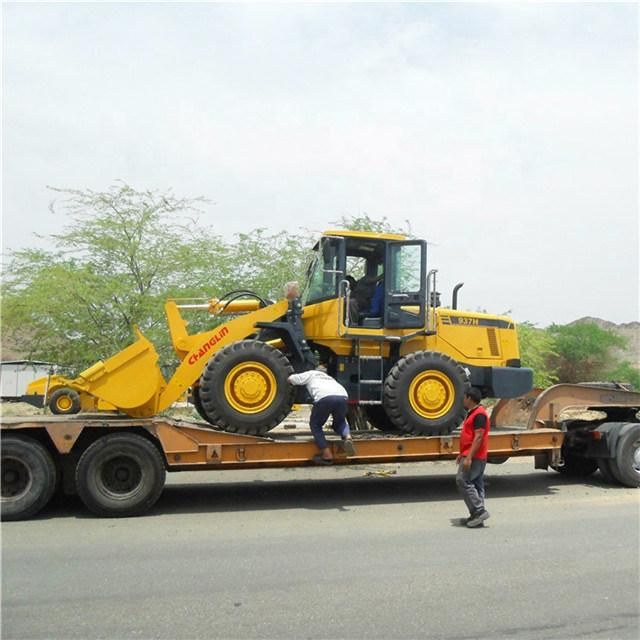

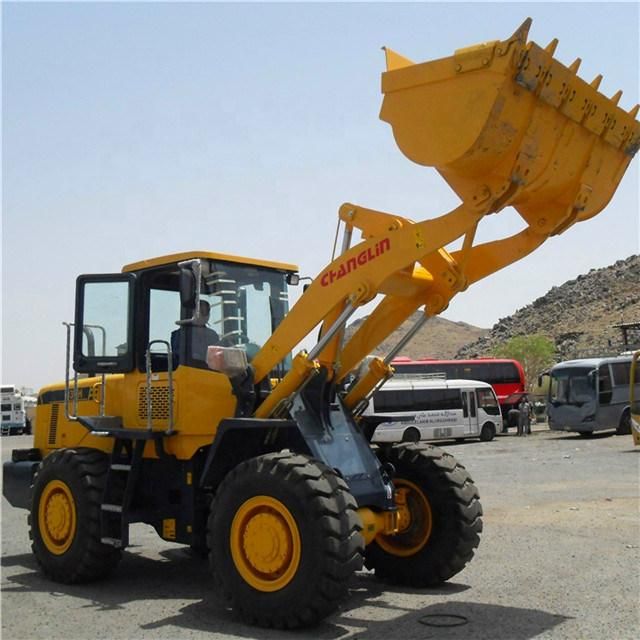

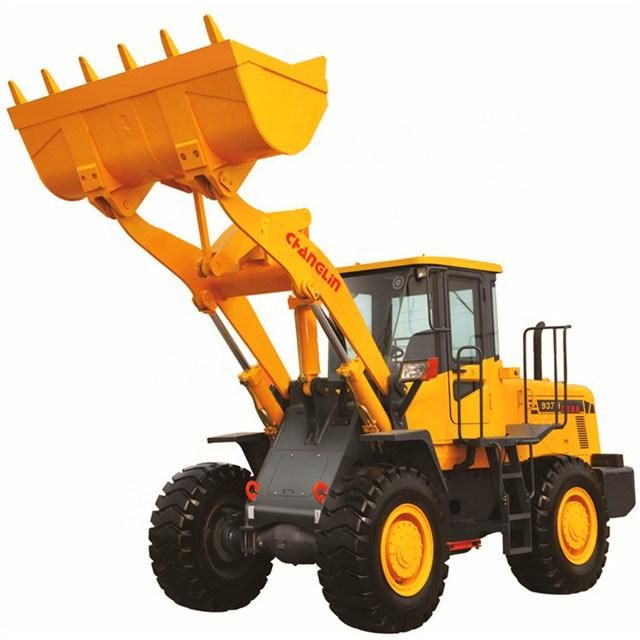

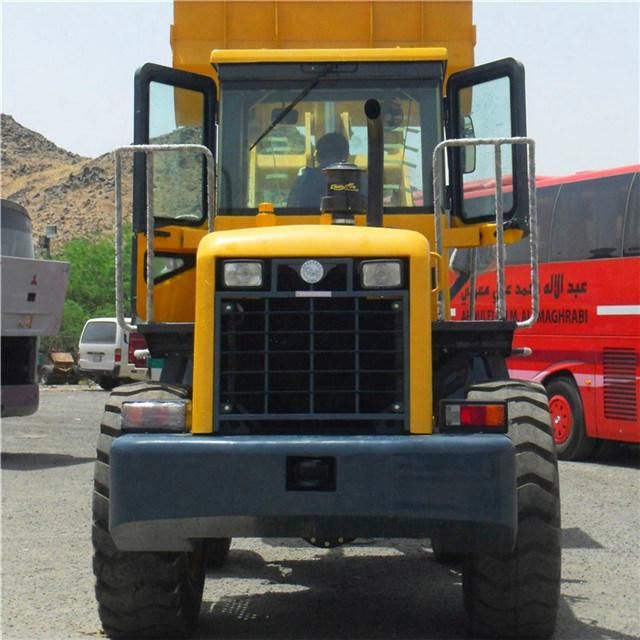

Chinese Changlin 3ton 937h Front Wheel Loader Price
Product description

1)Adopting the  strong power, low fuel consumption.

2)Bivariate system uses a unique sub-structure, easy maintenance and smooth power transmission.

3)Unit time for loading and unloading of materials Σt = t1 + t2 + t3 = 9.2s.

4)The state-of-the-art hydraulic system design, not only to improve the work system's ability to shovel, but also  the oil temperature of the hydraulic system ,so that prolong the service life of the hydraulic components.

5)Can be equipped with automatic hammer,snow-shoving board, coal buckte,rock bucket,high-dump device are available.

Parameter

Main Specification	Unit
Bucket Capacity	m3	1.7
Rated Load	kg	3000
Max. Digging Force	kn	96
Max. Traveling Force	kn	105
Operating Weight	kg	10200
Model of Engine		TD226B/YuchaiYC6B125
Rated Power	kw	92
Rated Speed	r/min	2200
Max. Torque	N.m	500
Forward Travelling Speed	km/h	6.6/13.8/30.1
Reverse Travelling Speed	km/h	8.2/17/29
Max. Grade Ability		27°
Steering Angle		±38°
Mini Steering Radius	mm	4885
Lifting Time	s	5.1
Lowering Time	s	3.0
Dumping Time	s	1.1
Standard Tyre		17.5-25-12PR
Dumping Clearance (45°)	mm	2934
Dumping Reach (45°)	mm	1043
Dimension(L*W*H)	mm	6923*2305*3136
