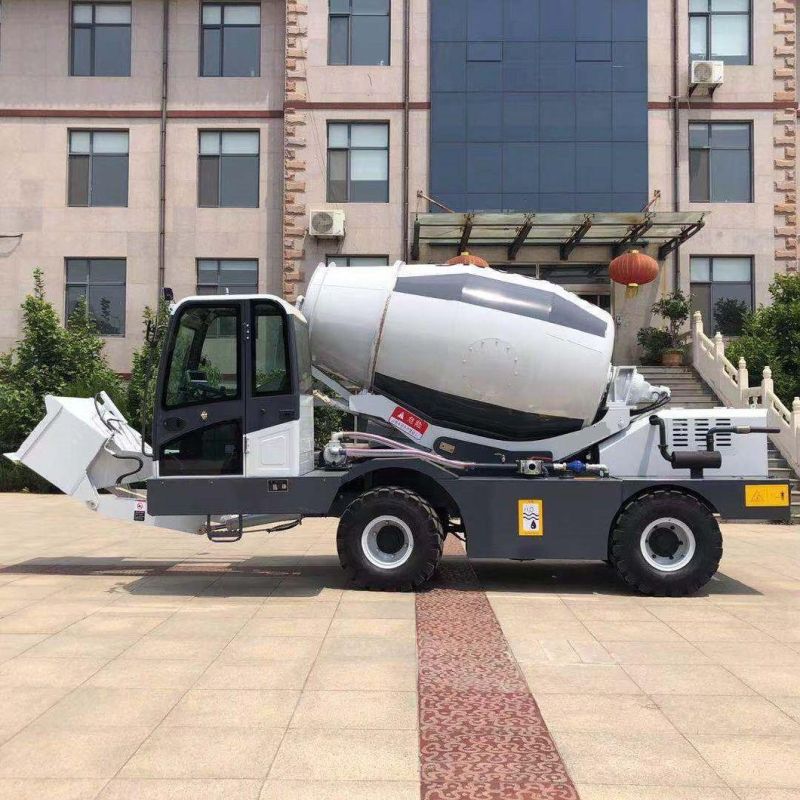

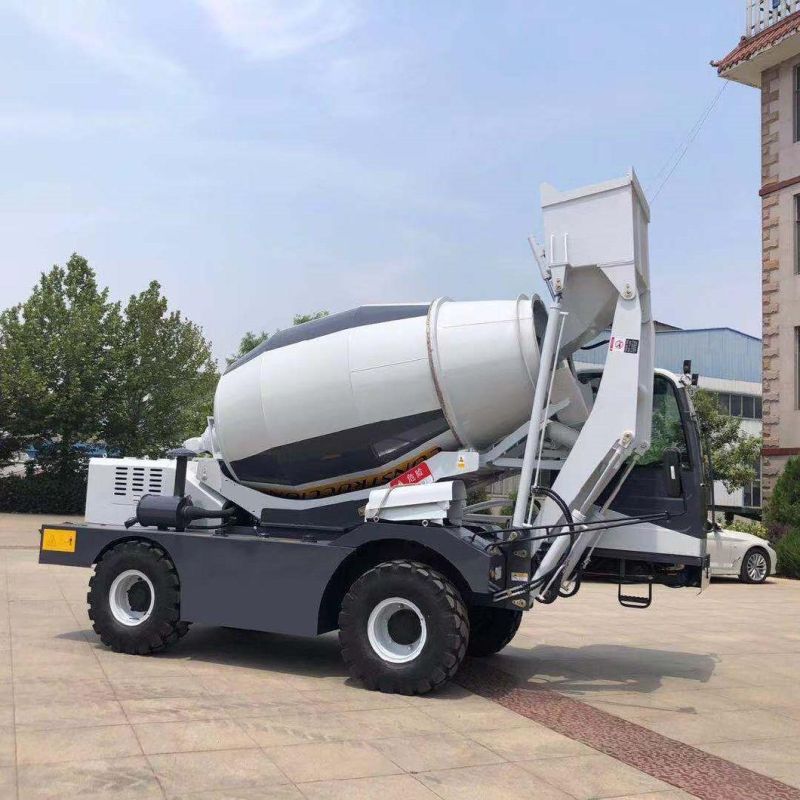

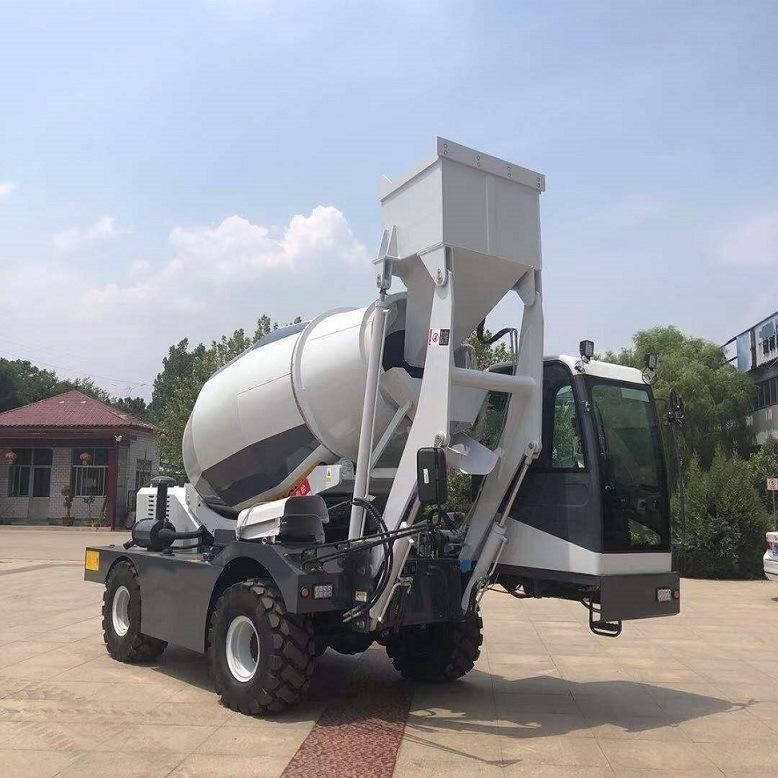

Strong 2.5m3 Self Loading Concrete Mixer (HQ2.5) for Sale
Weifang Haiqin Top Machinery Co., Ltd.- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Cylinder Type
- Productivity：25m²,h
- Feeding Height：1370mm
Base Info
- Vibrating Amplitude：2.0mm
- Certification：ISO9001: 2000, CE, SGS, Rops&Fops
- Condition：New
- Color：According to Buyers
- Size：6500mm*2400mm*3180mm
- Engine Power：78kw
- Concrete Output：2.5m3
- Transport Package：Nude Package
- Specification：ISO, SGS
- Trademark：Haiqin
- Origin：Shandong, China
- HS Code：87054000
- Production Capacity：8000 Units , Year
Description
Basic Info.
Vibrating Amplitude 2.0mm Certification ISO9001: 2000, CE, SGS, Rops&Fops Condition New Color According to Buyers Size 6500mm*2400mm*3180mm Engine Power 78kw Concrete Output 2.5m3 Transport Package Nude Package Specification ISO, SGS Trademark Haiqin Origin Shandong, China HS Code 87054000 Production Capacity 8000 Units / YearProduct Description
Haiqin Brand Self-Loading Mobile Concrete Mixer (HQ2.5) introduction .| 4.5m³ | |
| Concrete output | 2.5m³. |
| Loading ratio | 55% |
| Rotary drum | Discharge mouth height 1.5 meters.Level turn 270 ° (options) |
| Production capacity | 4 batches in an hour.10 cubic meters per hour |
| ENGINE | Yunnei ENGINE, diesel, water cooling, 4 cylinders.2,200 revolutions per minute, rated power 78KW. (options) |
| transmission way | Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4. |
| Climbing ability | 30% |
| speed | Low speed 0-25 km/h, high speed 0-45 km/h. |
| CAB | Ultra wide deluxe cab . ROPS type. |
| hydraulic system | Open feed, two gear pump participate in action. |
| joystick | A four-way hydraulic pilot with an electric control button controls the bucket. |
| bucket | 350L, hydraulic gate. |
| chute | Equipped with two removable shaft pins to increase the discharge length. |
| Water supply system | Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer (optional). |
| brake | inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub. |
| Turn | Hydraulic steering, front wheel steering. |
tyre | 23.5/70-16wire tires |
| power system | 24V |
OIL TANK/water tank | 300L water tank. Diesel tank: 110 litres.Hydraulic tank: 110 litres. |
weight | 6600KG |
| L*W*H | 6500MM*2400MM*3180MM |
wheelbase | 2.05M |
metering | Electronic weighing system (optional). |
