• Model NO.：SEM921
• Type：Medium-sized Grader
• Transport Package：Nude Package, Suitable for Shipment
• Trademark：sem
• Origin：Shandong
• HS Code：8429510000
• Production Capacity：1000

Basic Info.

Model NO. SEM921 Type Medium-sized Grader Transport Package Nude Package, Suitable for Shipment Trademark sem Origin Shandong HS Code 8429510000 Production Capacity 1000

Product Description

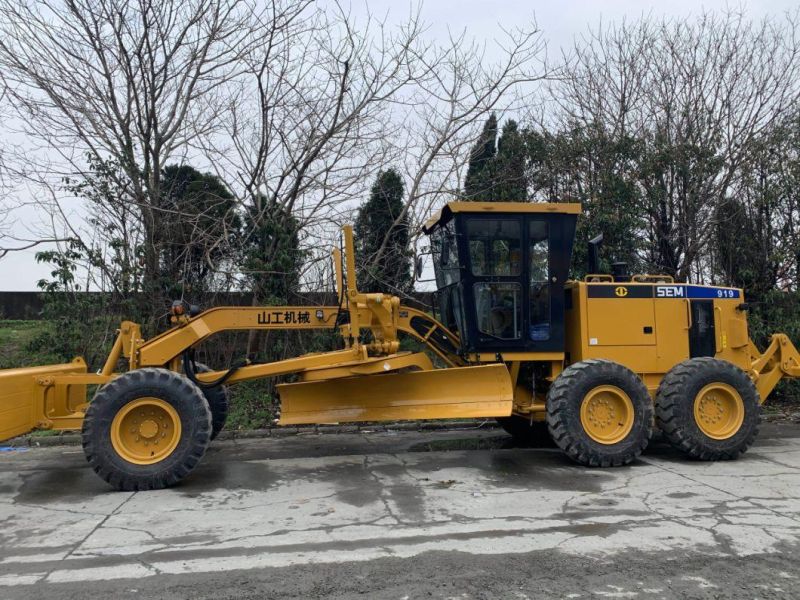

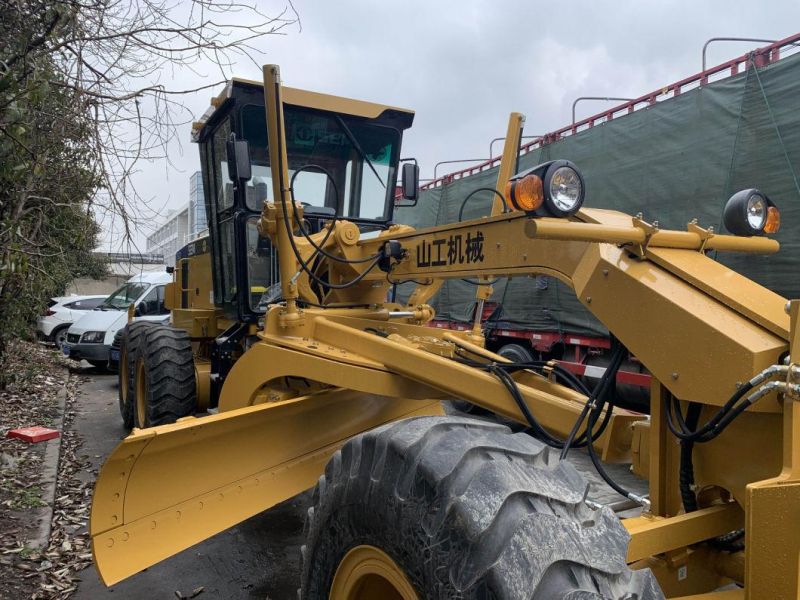

Sem921 921 919 Motor Grader in Stock
Product Description

• Landscaping, building, sewer/water tie-in, local utility construction Ready mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel
• Highway, street, tunnel, airport, residential commercial

Parameter

Item	SEM919	SEM921
Overall weight (kg)	15070	15930
weight - front axle(kg)	4236	4744
weight - back axle(kg)	10834	11186
Front / back axle load distribution	28% /72%	30% /70%
Overall dimension(mm)	8703*2630*3360	8854*2630*3360
Max. Tractive Force(KN)	≥78	≥85
Max. forward speed(km/h)	40	40
Max. backward speed(km/h)	25	25
Engine	Shangchai	Shangchai
Model	SC9DK190.1G3	SC9DK220G3
Rated power(kw)	140	162
Rated revolution(rpm)	2200.0	2200.0
Displacement(L)	8.8	8.8
Transmission	Hangzhou advance gearbox	Hangzhou advance gearbox
Gear	6 in the front 6 and 3 in the back	6 in the front 6 and 3 in the back

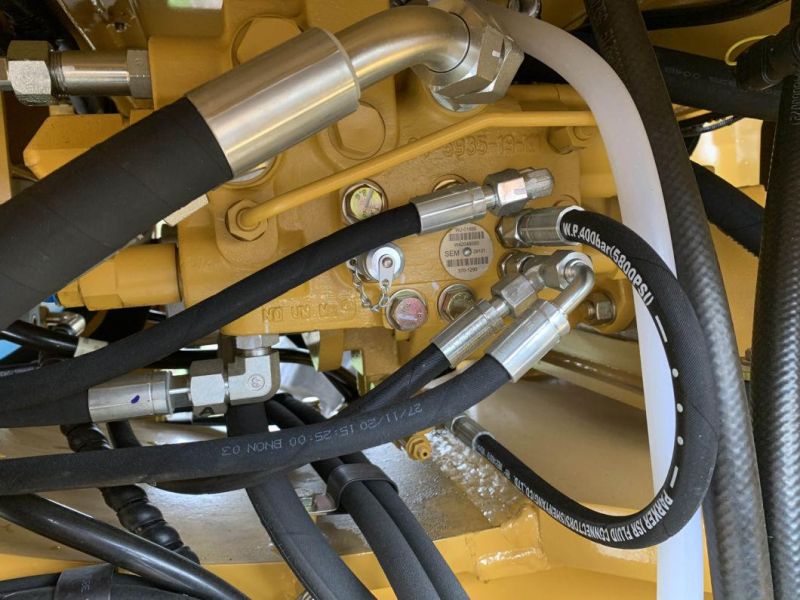

Hydraulic system	load sensing, proportional priority with pressure compensation	load sensing, proportional priority with pressure compensation
Working pump	Variable Piston Pump	Variable Piston Pump
Working valve	Proportional priority with pressure compensation	Proportional priority with pressure compensation
Tire	Diagonal tire with inner tube	Diagonal tire with inner tube
Layer/pattern	12pr, E2/L2	12pr, E2/L2
Model	17.5-25	12pr, E2/L2
Max. articulation angle(°)	±20	±20
Min. turning radius(m)	≤7.8	≤7.8
Shovel floating	Standard	Standard
Shovel length(m)	4.0	4.3
