• Model NO.：SWEA220
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Brand：Sinoway
• Model：Swea220
• Engine Power：110kw
• Pontoons Length：8.5 M
• Pontoon Height：1.7 M
• Boom Reach：10 M
• Chain Number：Three
• Compartment：Three
• on-Site Service：Available
• After Warranty Service：Available
• Spare Parts Supply：Available
• Unique Selling Point：Easy Maintenance
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：50PCS,Month

Basic Info.

Model NO. SWEA220 Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Brand Sinoway Model Swea220 Engine Power 110kw Pontoons Length 8.5 M Pontoon Height 1.7 M Boom Reach 10 M Chain Number Three Compartment Three on-Site Service Available After Warranty Service Available Spare Parts Supply Available Unique Selling Point Easy Maintenance Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 50PCS/Month

Product Description

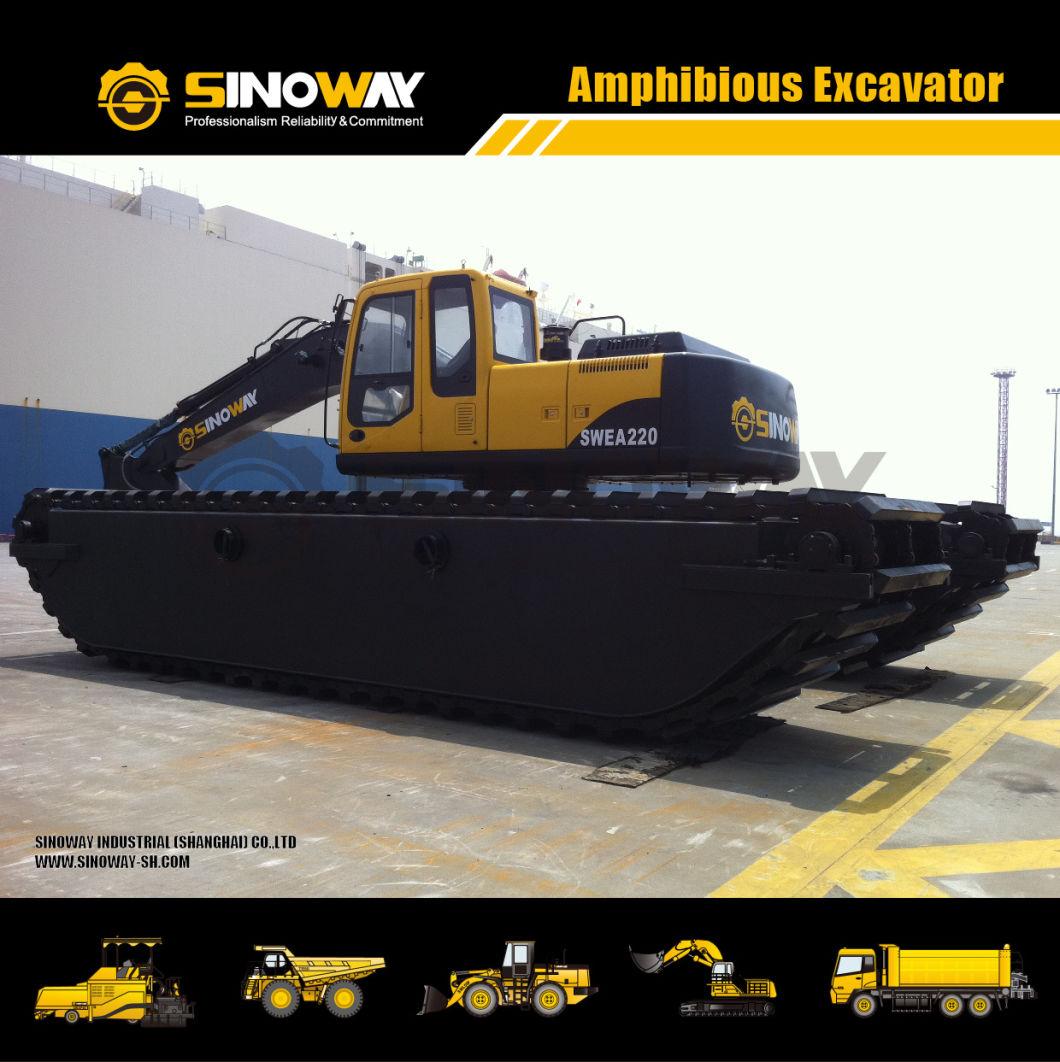

SINOWAY Marsh Excavator

Highlights

Durable Hydraulic Undercarriage Pontoons
The hydraulic undercarriage pontoons are extremely important to an amphibious excavator, Sinoway is pride of his abundant experience on manufacturing pontoons that last. According to your application requirement and working conditions, we areable to design and produce an amphibious excavator specially for your working area covering swamps, salty land, off-shore, river area and so forth.

Well protected hydraulics
hydraulic hosed are well protected by the full sealed container which minimize the possibility of damage these parts when working in swamp or water area.

Three-piece welding
The pontoons are now welded with three-piece steel sheet structure in stead of normal four-piece, two bent steel plates are connected on the top, thus the eliminating of long welding seam makes the whole pontoon even durable and neater.

Heavy duty chain link and wearproof liner
Sinoway swamp buggy comes with steel track cleats with specially design to against wearing and distortion. The material of the track plates is wear.proof steel plate, with extra toughness, special stud plate structure inside the track cleat to make it strong enough to supporting the pontoons and upper excavator.

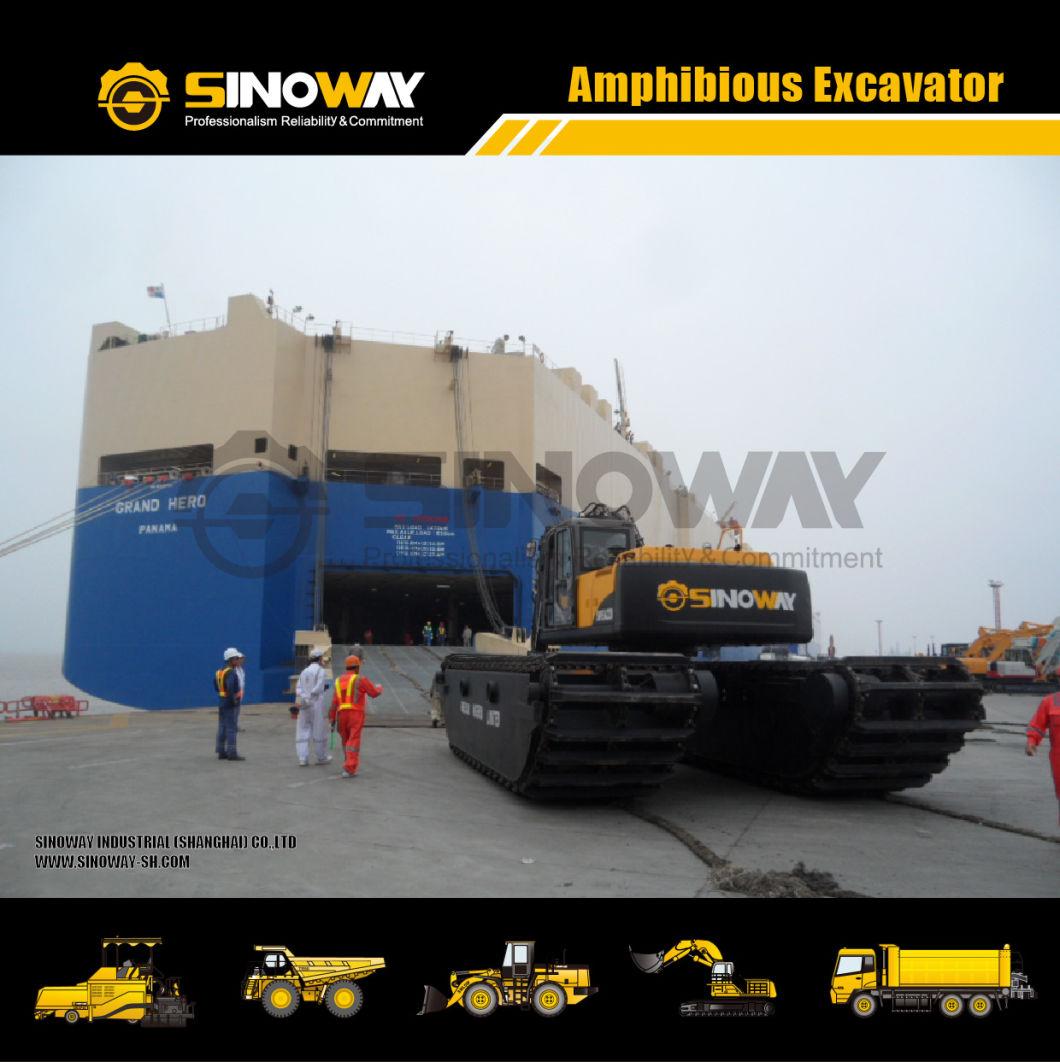

Machine Show


Machine Introduction




Specifications

Engine
Model	Isuzu/Cummins/Doosan
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	110KW
Main Technical Specification
Operating weight	30000Kg
Standard bucket capacity	0.9m3
Slewing speed	11rpm
Dimensions
Overall length	11200mm
Overall width	5350mm
Overall height	3900mm
Ground clearance	1192mm
Length of pontoon	8000mm
Width of pontoon	1500mm
Height of pontoon	1500mm
A: Max. cutting height	10577mm
B: Max. dumping height	7810mm
C: Max. digging depth	5704mm
D: Max. reach	10000mm
