22meters PC350/PC400/PC450 CE-Approved Excavator Long Arm Kits
Dongguan Haide Machinery Co., Ltd.- Warranty:12months
- Type:Crawler Excavator
- Usage:Mining Excavator
- Bucket:Backhoe
- Transmission:Hydraulic Transmission
- Drive Type:Internal Combustion Drive
Base Info
- Model NO.:long arm
- Bucket Capacity:0.6m3
- Size:Medium-Sized
- Certification:CE, ISO9001: 2000, SGS
- Condition:New
- Material:Q345b (S355)+Q690d(S690ql)
- Boom Length:12000mm
- Arm Length:10000mm
- Max Dig Depth:16500mm
- Max. Extensive Scope:21500mm
- Max. Dig Height:18500mm
- Folding Height:3400mm
- Suit Excavator Tonnage:35ton Ecavator
- Extra Counter Weight:4ton
- Transport Package:Bubble Film
- Specification:CE, SGS, ISO9001: 2000
- Trademark:GD-Haide
- Origin:Dongguan City, Guangdong Province
- HS Code:843149
- Production Capacity:1000set,Year
Description
Basic Info.
Model NO. long arm Bucket Capacity 0.6m3 Size Medium-Sized Certification CE, ISO9001: 2000, SGS Condition New Material Q345b (S355)+Q690d(S690ql) Boom Length 12000mm Arm Length 10000mm Max Dig Depth 16500mm Max. Extensive Scope 21500mm Max. Dig Height 18500mm Folding Height 3400mm Suit Excavator Tonnage 35ton Ecavator Extra Counter Weight 4ton Transport Package Bubble Film Specification CE, SGS, ISO9001: 2000 Trademark GD-Haide Origin Dongguan City, Guangdong Province HS Code 843149 Production Capacity 1000set/YearProduct Description

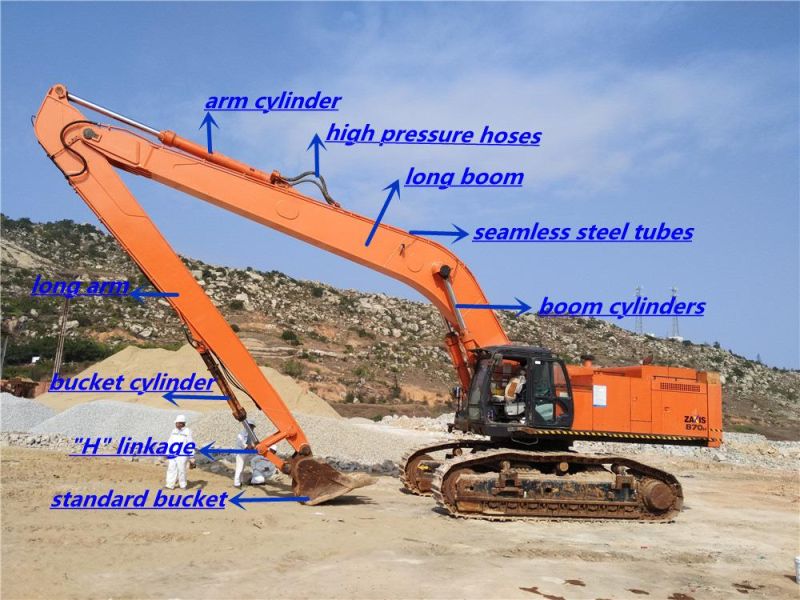

22Meters PC350/PC400/PC450 Excavator Long Reach Boom for saleExcavator long reach boom and arm
(1)Specifications and Standard Supply:
Long boom | One unit | Long arm | One unit |
Bucket cylinder | One unit | Standard bucket | One unit |
pins | 8 units | "H" linkage | One set |
High pressure hoses | 4 units | Steel tube | 4 units |
Boom cylinder | Use original cylinders | Arm cylinder | Use original cylinder |
(2)Working Dimension:

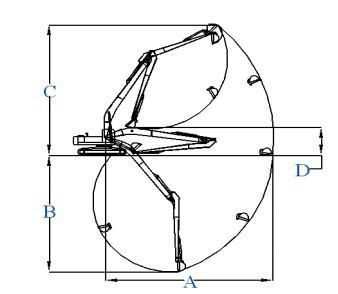

Model | LDB120 | LDB200 | LDB220 | LDB200 | LDB300 | LDB350 | LDB400 | LDB450 | |
Total length (mm) | 13000 | 15380 | 15380 | 18000 | 18000 | 20000 | 22000 | 24000 | |
Weight (kg) | 3000 | 4000 | 4200 | 4900 | 5200 | 6000 | 6500 | 7000 | |
B | Max dig depth (mm) | 9000 | 11340 | 11370 | 13000 | 13000 | 15000 | 16500 | 18000 |
A | Max extensive Scope (mm) | 12500 | 15100 | 15100 | 17500 | 17600 | 19600 | 21600 | 23600 |
C | Max dig height (mm) | 11300 | 12510 | 12610 | 13720 | 13720 | 14920 | 16100 | 17300 |
D | Folding height (mm) | 2900 | 2980 | 3040 | 3210 | 3210 | 3210 | 3400 | 3400 |
Bucket volume (m3) | 0.3 | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 | |
Excavator Tonnage(ton) | 10-16 | 20-22 | 22-25 | 20-25 | 30 | 35 | 40 | 45 |

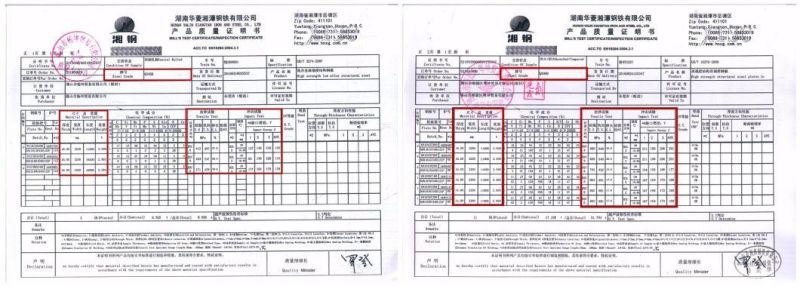

1.Material :
A.)All Q345B Steel for standard long reach boom.
B.)Heavy duty long reach and excavator tonnage above 40ton :Q690D high strength steel plates.
Q345B steel same as S355 steel in Europe.
Q690D steel same as Weldox700 steel in Europe.

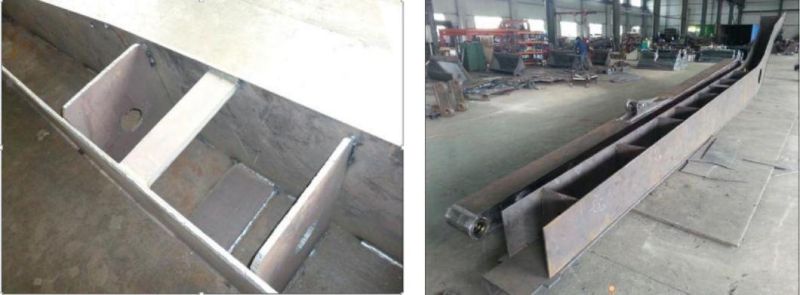

2.Internal view(spaced by vertical and horizontal reinforcement plate at regular interval)

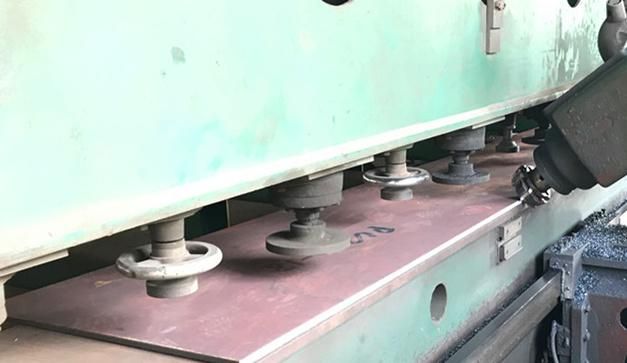

3.All steel plate are beveled by beveling machine before welding.
4.Welding:
A.) Welded with mixed gas between argon and carbon dioxide. Argon content:80%.Carbon dioxide content:20%.

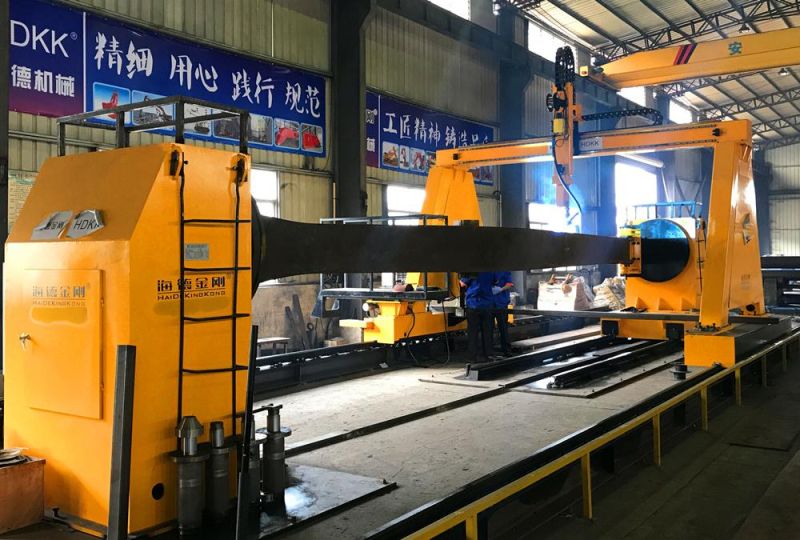

B.) Welded by robotic welding machine .
