Mini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V Engine

XIAMEN LTMG CO., LTD.
  • After-sales Service：Free Parts Within Warranty
  • Warranty：One Year
  • Type：Crawler Excavator
  • Usage：Mining Excavator, GM Excavator
  • Bucket：Shovel
  • Transmission：Hydraulic Transmission

Base Info

  • Model NO.：LTE08,LTE10,LTE12,LTE15,LTE17
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：0.025m3
  • Size：Small-Scale
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Wheel Base：770mm
  • Bucket Width：340mm
  • Max. Digging Height：2365mm
  • Max. Digging Radius on Ground：2560mm
  • Max.Digging Depth：1650mm
  • Travel Speed：1.5km,H
  • Engine：Chinese or Japan

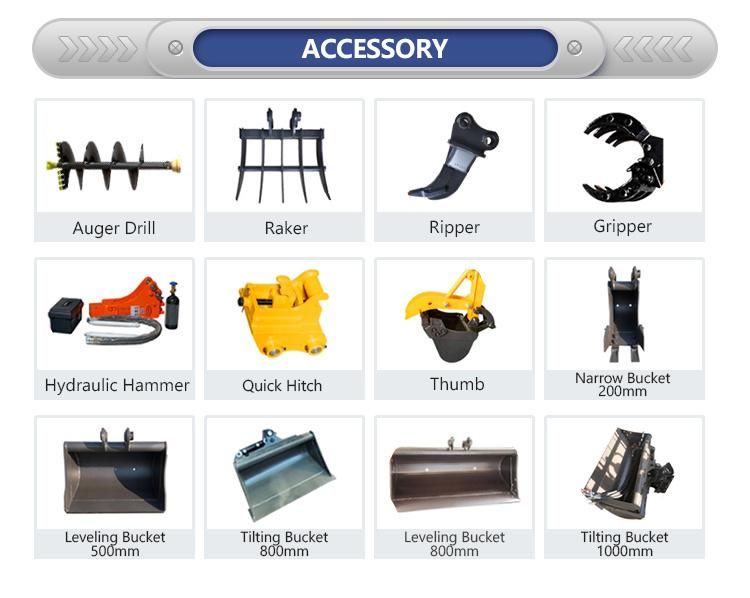

  • Optional：Hammer,Auger, Ripper, Forks, Grabber, etc
  • Operating Weight：800kg
  • Color：Customized
  • Transport Package：Nude, Fixed in Container
  • Specification：1877mm*896mm*1990mm
  • Trademark：LTMG
  • Origin：China
  • Production Capacity：500uints,Month

Description

Basic Info.

Model NO. LTE08/LTE10/LTE12/LTE15/LTE17 Drive Type Internal Combustion Drive Bucket Capacity 0.025m3 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Wheel Base 770mm Bucket Width 340mm Max. Digging Height 2365mm Max. Digging Radius on Ground 2560mm Max.Digging Depth 1650mm Travel Speed 1.5km/H Engine Chinese or Japan Optional Hammer,Auger, Ripper, Forks, Grabber, etc Operating Weight 800kg Color Customized Transport Package Nude, Fixed in Container Specification 1877mm*896mm*1990mm Trademark LTMG Origin China Production Capacity 500uints/Month

Product Description

Mini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V Engine
Mini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V EngineMini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V EngineMini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V EngineMini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V Engine

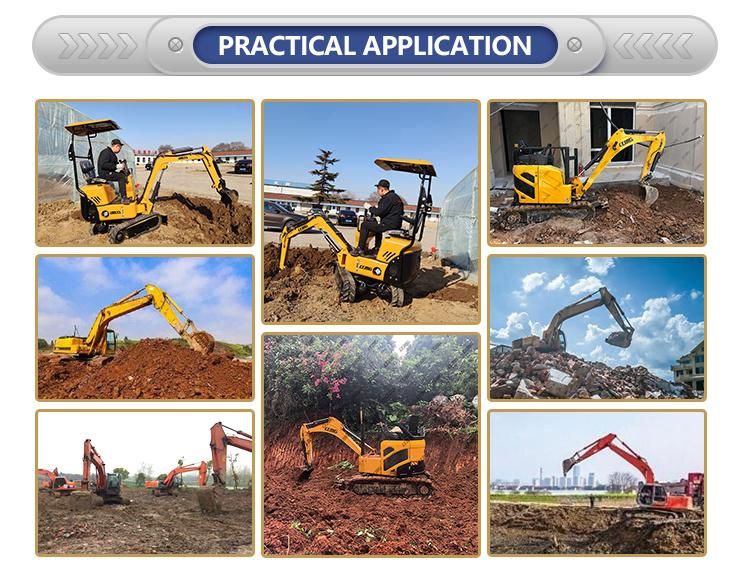

Mini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V Enginesmall excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
1.Optional engines, high efficiency, low vibration, low noise, ensuring enough power output, can used in all harsh environment, engien is easy to be started even if in severe cold environment.

2.Adopting high fuel efficiency, seeking green emission and high power output YANMAR engine, engine can meet to the emmission requirements from all countries by improving the fuel injection system.

3.Based on matching technology of excellent engine and full import hydraulic system, machine is with more power output, improve working speed and reduce fuel consumption.

4.Rear and side cover can be opened widely, easy to daily checking and maintenance and repair works.

5.Bulldozing plate cylinder safety cover , protecting cylinder rod and pipes.
ModelLTE08LTE10LTE12LTE16LTE18LTE20
Operating Weight720kg950kg1180kg1580kg1800kg1900kg
Rated Power7.6kw/3000/10kw/36007kW/3000rpm12kw/300018.5kw/3000rpm18.1kW/2000rpm14.2kW/2200rpm
EngineKoop192/GASOLINE ENGINE/XR2100KOOP KD192F-1Popular science 292Laidong385 /Yanmar3tnv74Laidong 3TE25Kubota
Bucket Capacity0.025m³0.023m³0.03m³0.04m³0.06m³0.07m³
Max. Digging Radius3000mm3065mm4200mm5200mm3860mm4040mm
Max. Digging Depth1200mm1715mm1750mm1800mm2050mm2400mm
Max. Digging Height2350mm2600mm2480mm2850mm3370mm3700mm
Max. Dumping Height1600mm1830mm1800mm2250mm2390mm2440mm
Overall Width720mm880mm940mm1150mm3800mm3555mm
Mini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V EngineMini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V EngineMini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V EngineMini Digger 0.8 Ton 1 Ton 1.2 Ton 1.5 Ton 1.7 Ton 2 Ton Hydraulic Bucket Wheel Crawler Excavator with CE/EPA/Euro V Engine

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
