• Model NO.：JBC1.6R AT
• Certification：CE
• Condition：New
• Color：Orange
• Transport Package：Naked
• Trademark：LUZUN
• Origin：China
• HS Code：8705400000
• Production Capacity：1500 Units,Year

Basic Info.

Model NO. JBC1.6R AT Certification CE Condition New Color Orange Transport Package Naked Trademark LUZUN Origin China HS Code 8705400000 Production Capacity 1500 Units/Year

Product Description

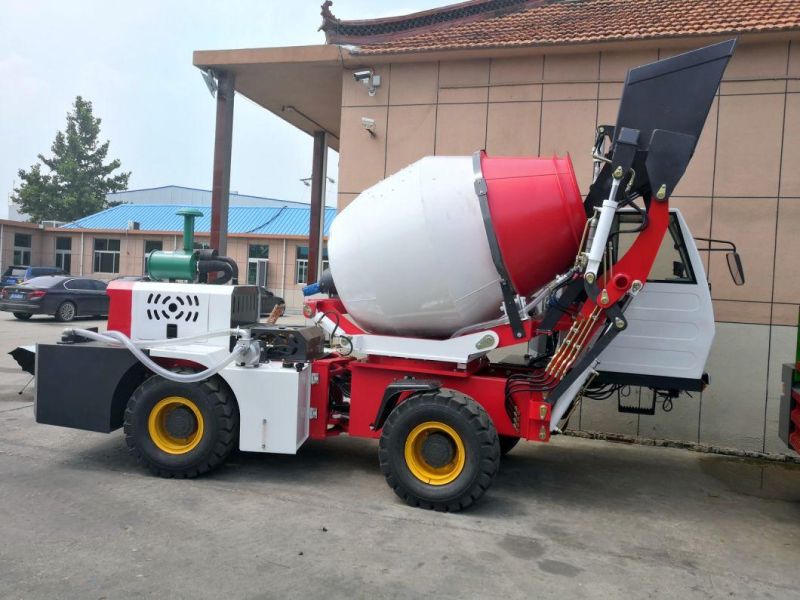

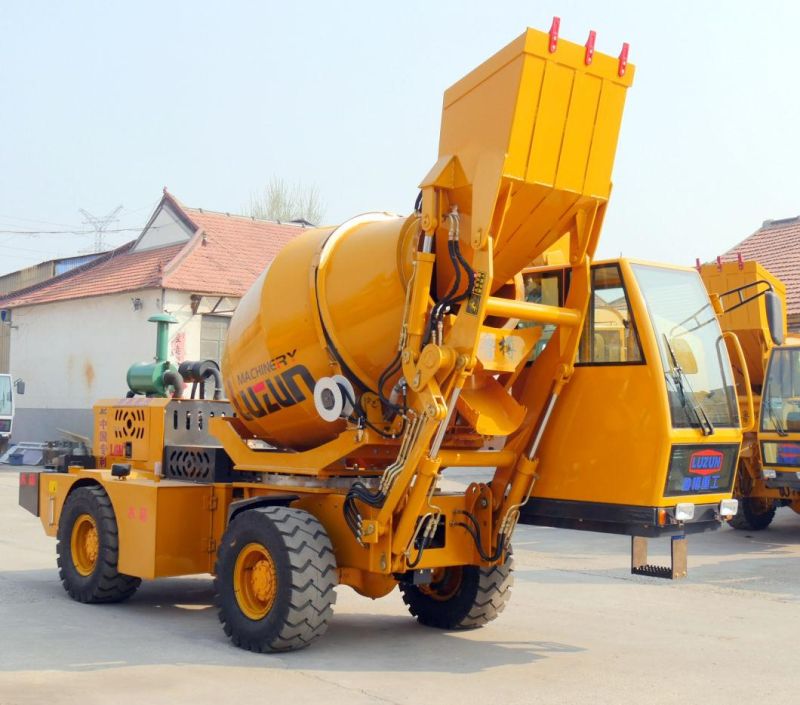

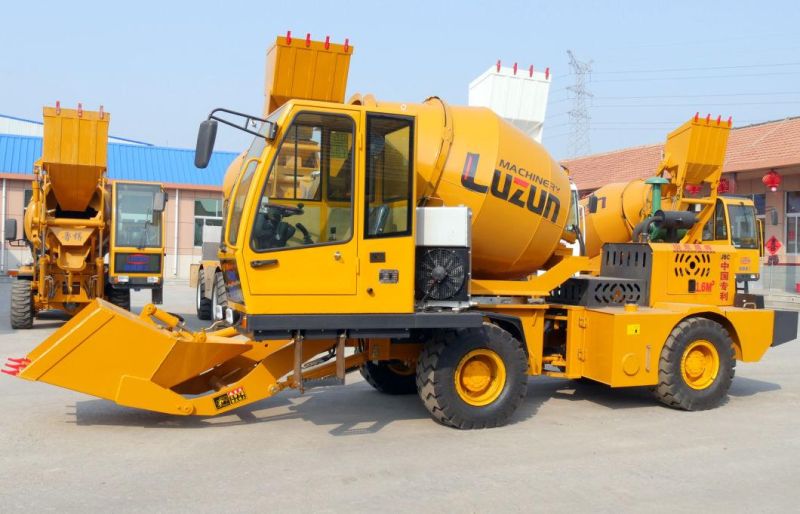

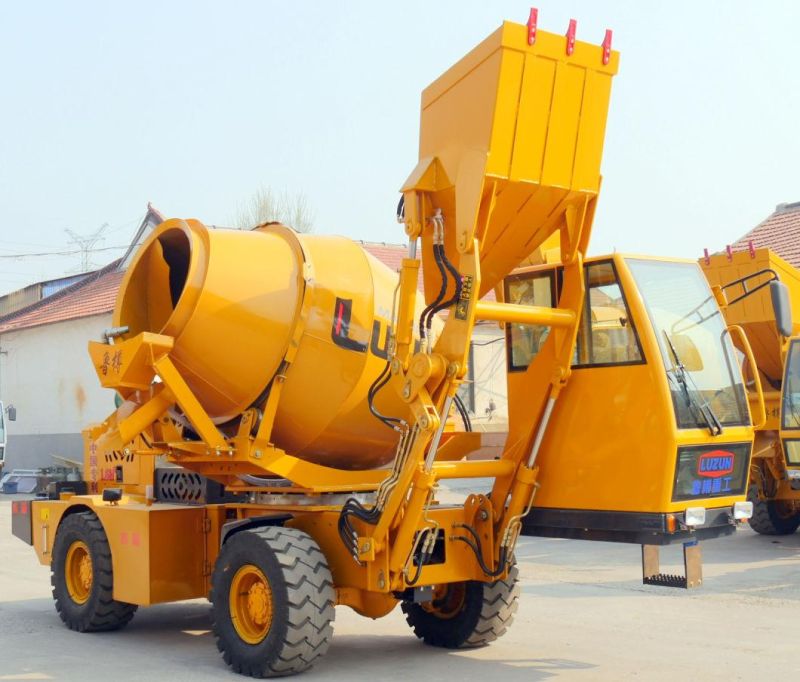

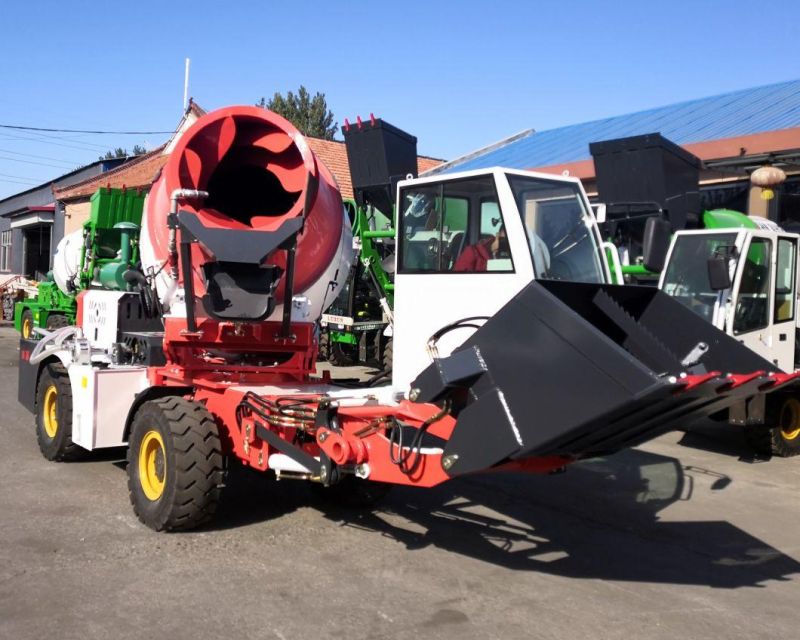

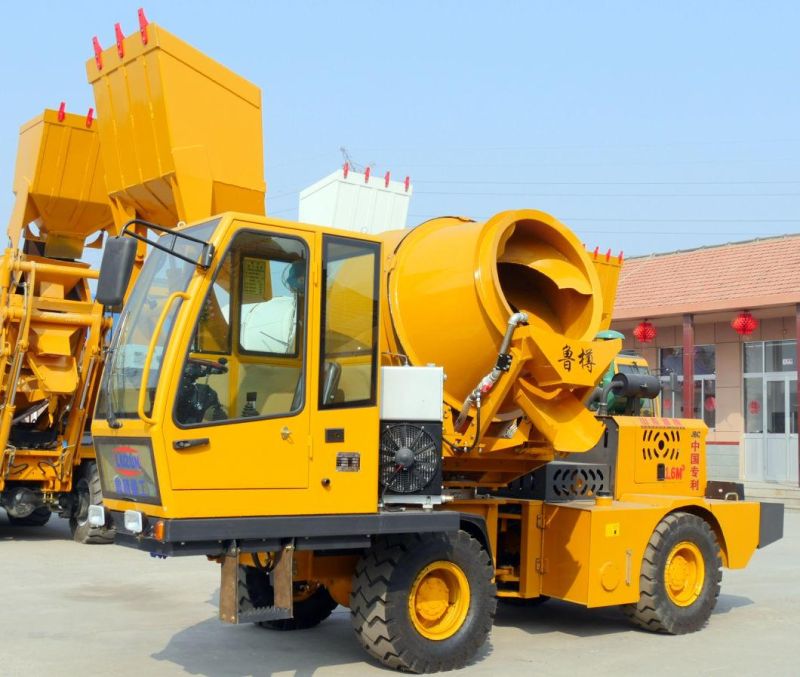

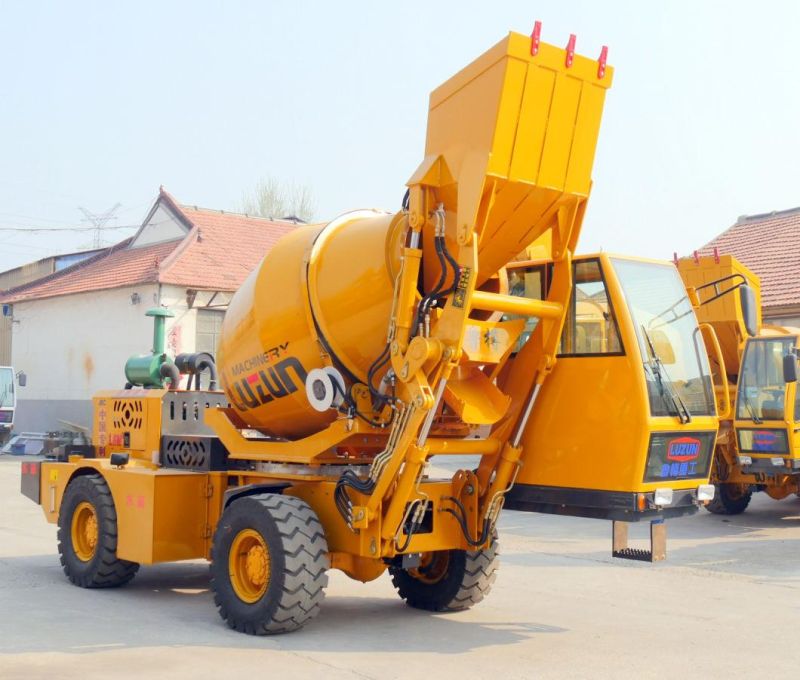

JBC1.6R Self Propelled Concrete Mixer

Features:

1. Auto Weighting Scale system (English / Russian / Spanish Version) - (Optional )
2. Drum Bottom lifting up for increasing speed of discharging concrete - (Optional)
3. Water Pump - (Optional )
4. Air-condition - (Optional )
5. 270 degrees discharge angle
6. Articulated Steering Mode

Parameters:

DIESEL ENGINE

Model: YCD4T22T-105 (YuChai)
Total displacement, no Cylinders: 3850cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 78Kw(106Hp)
Max. torque: 330Nm@2400rpm

ELECTRIC SYSTEM

Alternator: 28V--500Wa  (18A)
Battery: 2×12V--60AH (272A)
Road light system, rear working lights.

STEERING

Articulated Steering by two cylinders move alternately.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears               2 reverse gears
       Ist 0 - 7.0 Km/h               0 - 7.0 Km/h
       IInd 7-20 Km/h               7 - 20 Km/h

AXLES AND WHEELS

Front wheel fixed stable
Rear wheel is controlled by two cylinders as articulated type with 30 degrees steering angle.
Tires: ... 20.5-16,Max. L: AD2840kg

BRAKES

Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
Negative type parking brake, with internal wheel hub discs on the front axle.

WATER SYSTEM

24V "Self-priming" volumetric water pump with quick-suction.
Max. capacity: ...........................90 liters/min.
One tank with a total capacity of ......................390 liters.
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat.
Washing vehicles outside by water blast gun via high pressure water pump.

MIXING AND UNLOADING

Double-cone drum with double-spiral mixing screws and convex bottom.
Geometrical drum volume: ............. 2900 liters
Drum rotation speed: .........................18 rpm.
Concrete produced as : ........1.6 m³
Counter frame mounted on "heavy-duty" ball fifth wheel, with 270° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of double-acting jacks.
Unloading chute with mechanical tilting by means of one handle controlled independent from the mixing drum inclination.
Removable chute if unloading from hopper.
2 unloading chute extensions provided as standard equipment.

EQUIPMENT HYDRAULIC SYSTEM

Gear pump: DEHONG (brand)
Max. flow rate: ............................. 20/50 liters/min.
Maximum pressure: ........................16MPa
3-Handles controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.

LOADER

Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.
Volumetric capacity: .......................... 350 liters
Number of loading times: .......... around 5

CAB

Closed cab with heating system,
Tilting front window, Anatomic seat with flexible suspension and height adjustment,

SERVICE REFILL CAPACITIES

Fuel tank: .............................................100 liters
Total hydraulic Tank capacity: ........ 100 liters
Engine oil: .............................................16 liters

WEIGHTS

Operating weight ................................ 5,800 kg
Max gross weight:..............................9,000 kg
load-carrying capacity: .......................... 3,200 kg

DIMENSIONS
Length × Width × Height .........................6030 × 2240 × 2750 mm
