Wet Mix Tunnel Shotcrete Construction Spray Machine Equipment for Swimming Pool

Zhengzhou Lead Equipment Co., Ltd.
  • After-sales Service：Yes
  • Type：Shotcrete
  • Shotcrete Type：Wet
  • Machining Process：Welded Molding Machine
  • Structure：Rotor Type
  • Productivity：5m3 ,H

Base Info

  • Model NO.：LSZ3000E
  • Feeding Height：1.17m
  • Certification：ISO9001: 2000, CE, SGS
  • Condition：New
  • Color：Yellow
  • Product Name：Shotcrete Machine
  • Drive Mode：Electric Motor Drive, Pneumatic Drive, Diesel Driv
  • Rated Output：5m3 ,H
  • Max. Horizontal Conveying Distance：35m
  • Max. Aggregate Size：15mm
  • Concrete Slump：8 -15cm
  • Rotor Speed：11r,Min
  • Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
  • Specification：ISO, CE, SGS
  • Trademark：Leadcrete
  • Origin：China
  • HS Code：84743100
  • Production Capacity：5000 Sets,Year

Description

Basic Info.

Model NO. LSZ3000E Feeding Height 1.17m Certification ISO9001: 2000, CE, SGS Condition New Color Yellow Product Name Shotcrete Machine Drive Mode Electric Motor Drive, Pneumatic Drive, Diesel Driv Rated Output 5m3 /H Max. Horizontal Conveying Distance 35m Max. Aggregate Size 15mm Concrete Slump 8 -15cm Rotor Speed 11r/Min Transport Package Plastic Wrap, Plywood Case, Free-Fumigation Specification ISO, CE, SGS Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

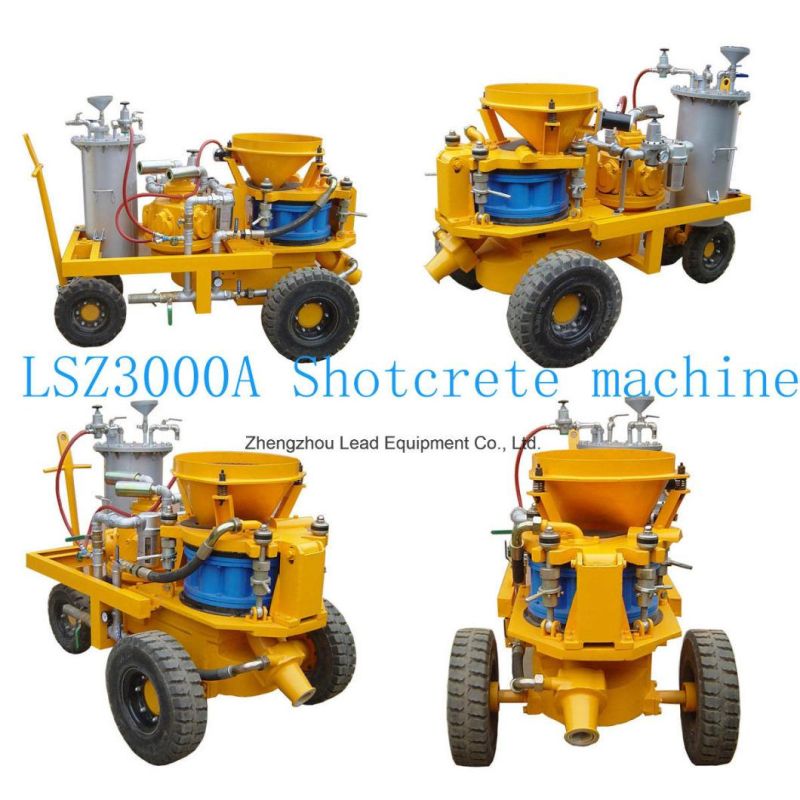

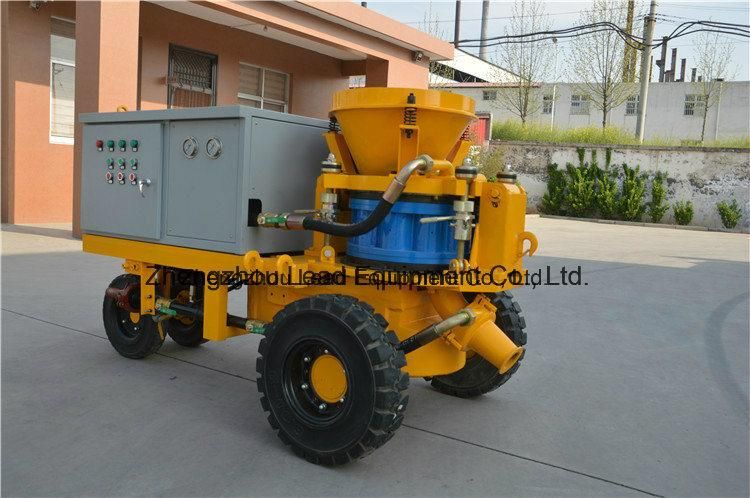

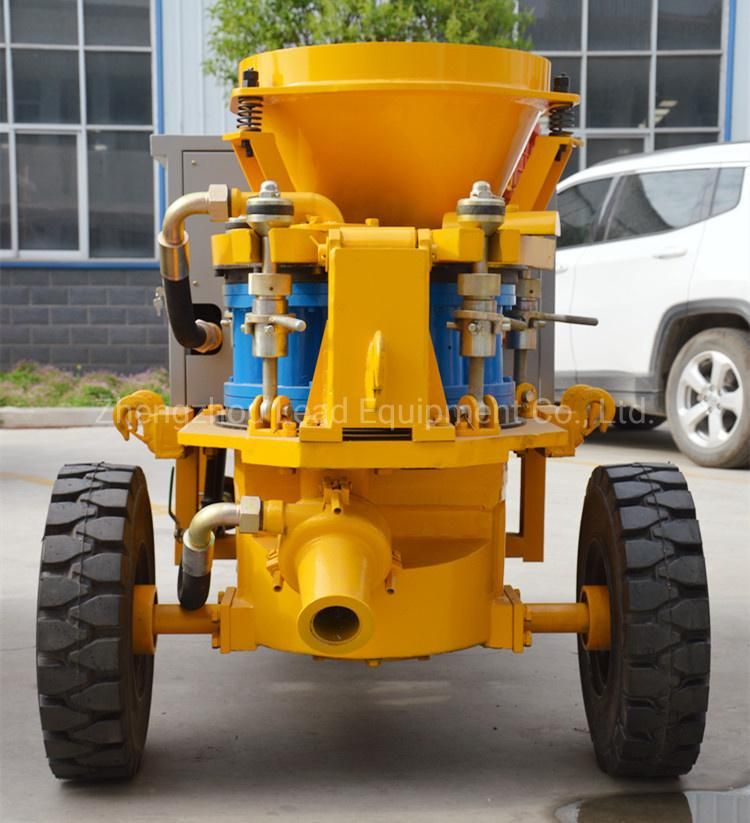

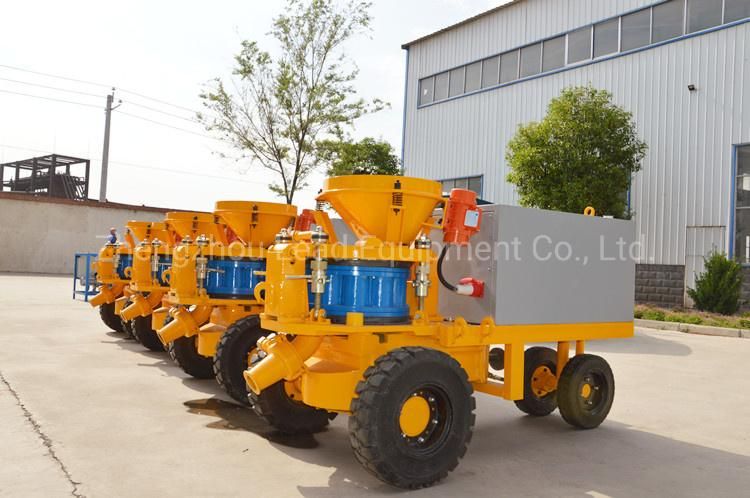

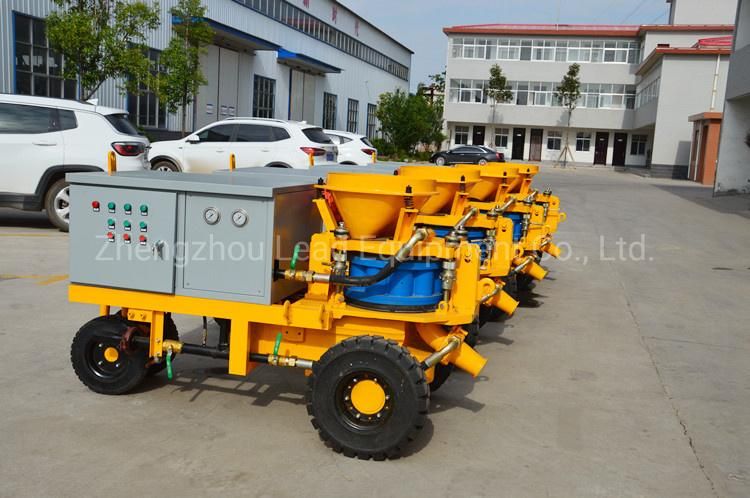

LSZ3000 Shotcrete Machine

Wet Mix Tunnel Shotcrete Construction Spray Machine Equipment for Swimming Pool
Wet Mix Tunnel Shotcrete Construction Spray Machine Equipment for Swimming Pool
Wet Mix Tunnel Shotcrete Construction Spray Machine Equipment for Swimming Pool
Wet Mix Tunnel Shotcrete Construction Spray Machine Equipment for Swimming Pool
Wet Mix Tunnel Shotcrete Construction Spray Machine Equipment for Swimming Pool


1. Description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel

Wet Mix Tunnel Shotcrete Construction Spray Machine Equipment for Swimming Pool

2. Application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.


3. Features:
It can both for dry and shotcrete concrete spraying.
Drive typeelectric motor drive
Rated Output  5m3 /h
Max. Horizontal Conveying Distance35m
Max. Aggregate Size15mm
Concrete Slump8 -15cm
Conveying Hose Inner Diameter51/ 64mm
Operating air Pressure0.3-0.6MPa (43-86PSI)
Air Consumption 10~ 12m3 /min(357-430CFM)
Main Motor Power                            7.5kW(10hp)
Dosing Pump:                                BRJ15
Dosing Pump Rated Pressure                0.6MPa(86PSI)
Dosing Pump Output                        17.5 -88L /h
Voltage                                        220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height1.17m
Rotor Speed11r/min
Overall Dimension(L × W × H)              2.05× 0.95× 1.18m
Net Weight1200kg

4.Our Company:
