• Model NO.：WZ30-25
• Type：Small Loader
• Key Words：Mini Backhoe Loader
• Engine：Yunnei
• Trademark：FORLOAD
• Origin：China
• HS Code：8429510000
• Production Capacity：200PCS Per Month

Basic Info.

Model NO. WZ30-25 Type Small Loader Key Words Mini Backhoe Loader Engine Yunnei Trademark FORLOAD Origin China HS Code 8429510000 Production Capacity 200PCS Per Month

Product Description

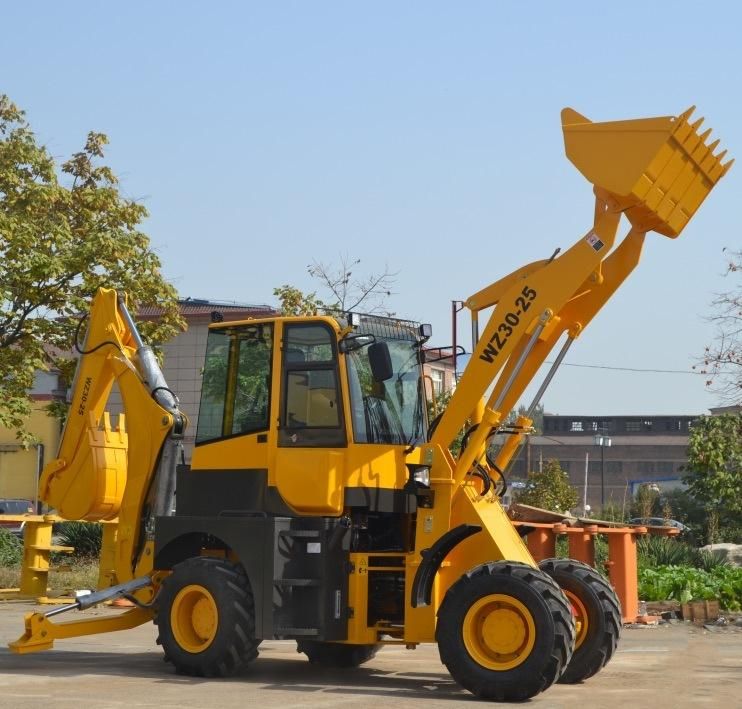

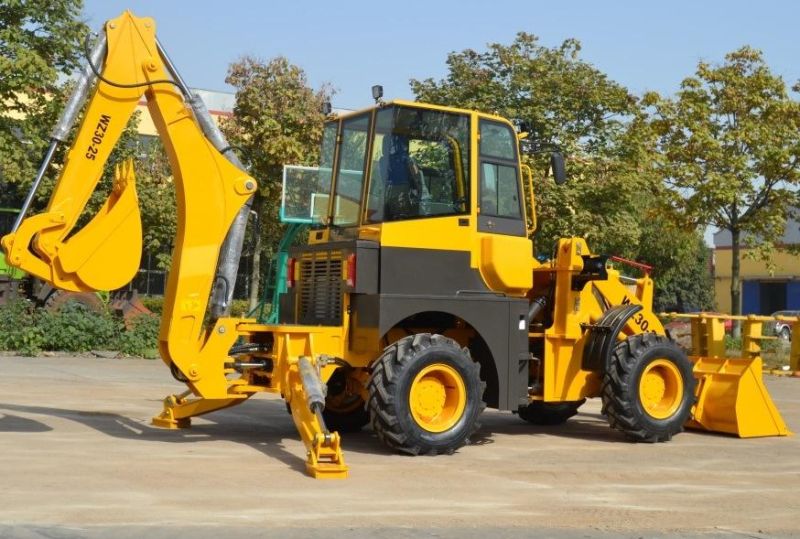

FORLOAD mini WZ30-25 backhoe wheel loader

1-Use a central articulated frame, smaller turning radius, flexible, lateral stability is good, is advantageous for the loading operation in the narrow site.
2-Adopts hydraulic transmission structure, improve the reliability of the transmission system.
3-Adopts full hydraulic steering, working device hydraulic control. The operation of portable flexible, smooth and reliable action.
4-To the excavation of lateral sliding device and the excavation scope is bigger, a wider range of application.

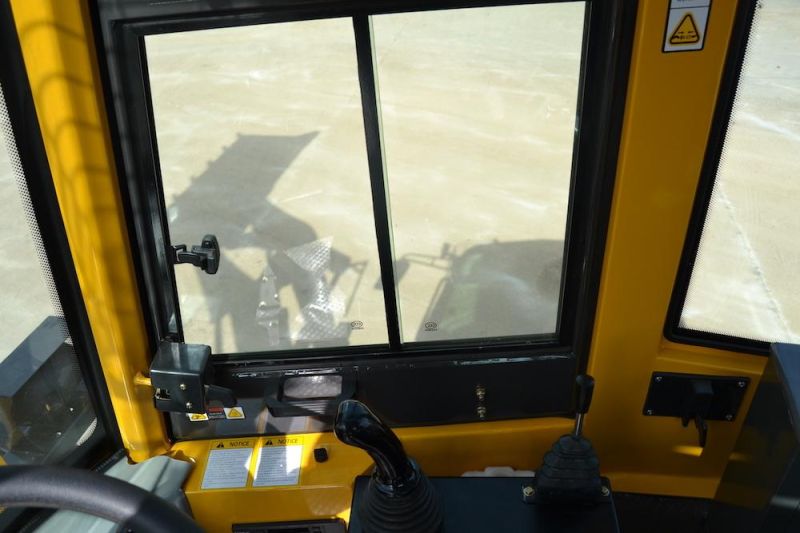

5-Adopted 360⁰ damping suspension type rotating seats, with the armrest and seat belt, improves the comfort and safety of the driver.


Wheelbase	2250mm
Min. Ground Clearance	300mm
Bucket Capacity	1.3m3
Breakout Force	38KN
Loading Lifting Capacity	2500KG
Bucket Dumping Height	3500mm
Bucket Dumping Distance	1022mm
Digging Depth	52mm
Backhoe Capacity(Width)	0.3m3(520mm)
Max. Digging Depth	4082mm
Swing Angle of backhoe	190o
Max. Pulling Force	39KN
Engine Model	YUNNEI YN38GBZ (4102 Turbo)
Type	In Line,Direct injection,Four-Stroke,Water Cooling
Rated Power	76KW
Steering Angle	±36 o
Min. turning radius	5018mm
Axle type	Wheel Hub Reducer
Final Reducer	Single Stage Final Reducer
Torque Converter Model	YJ280
Gear box Type	Power Transmission
Max.Speed	28Km/h
Tire Size	16/70-20
Pressure of Hydraulic System	22Mpa
