• Model NO.：MST800
• Pitch：100mm
• Links：80
• Warranty：12months
• Total Length：8000mm
• Weight：664kg
• Transport Package：Wooden Pallet
• Specification：600*100*80
• Trademark：POOYERT
• Origin：Shanghai
• HS Code：8431499900
• Production Capacity：2000 Pieces,Month

Basic Info.

Model NO. MST800 Pitch 100mm Links 80 Warranty 12months Total Length 8000mm Weight 664kg Transport Package Wooden Pallet Specification 600*100*80 Trademark POOYERT Origin Shanghai HS Code 8431499900 Production Capacity 2000 Pieces/Month

Product Description

600*100*80 Rubber Track for MOROOKA MST800 Dumper
Size:Width600mm*Pitch Length100mm*Links80
Weight:664kg


1. Type of rubber tracks:

1). Continuous rubber track

2). Conventional type or interchangeable type rubber track

3). Warranty: Guarantee one year under normal use

4). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane,

crawler carrier vehicle,Agriculture machinery, paver and other special machine


2. The feature of rubber tracks:

(1). Less round damage

(2). Low noise

(3). High speed.

(4). Less vibration

(5). Low ground pressure

(6). Superior traction


About Us:

Our plant mainly produce Rubber Track which are specially good use for these kind of Machine:

Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders, Pitch Paver,

Agricultural Harvester, Dumpers...Etc.

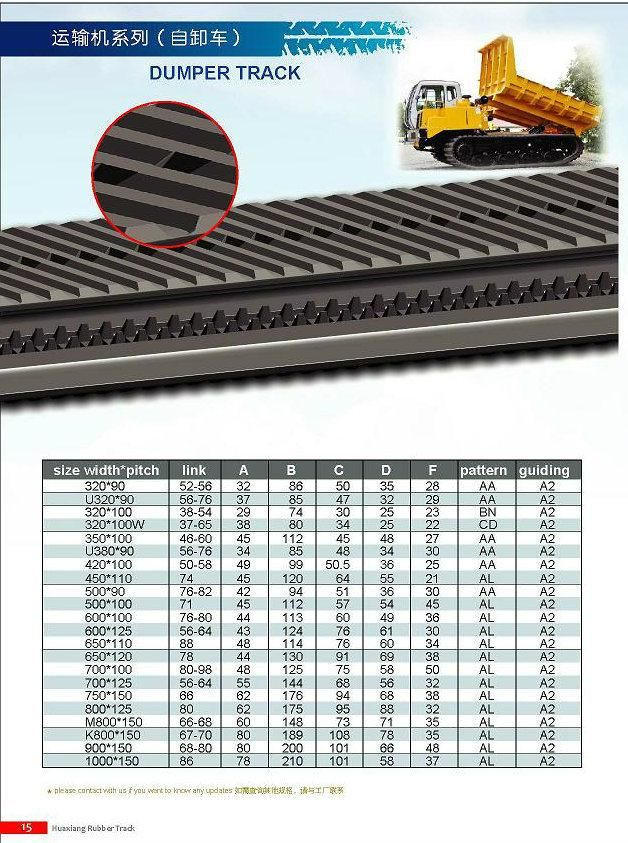

DUMPER TRACK
size width*pitch	link	A	B	C	D	F	pattern	guiding
320*90	52-56	32	86	50	35	28	AA	A2
U320*90	56-76	37	85	47	32	29	AA	A2
320*100	38-54	29	74	30	25	23	BN	A2
320*100W	37-65	38	80	34	25	22	CD	A2
350*100	49-60	45	112	45	48	27	AA	A2
U380*90	56-76	34	85	48	34	30	AA	A2
420*100	50-58	49	99	50.5	36	25	AA	A2
450*110	74	45	120	64	55	21	AL	A2
500*90	76-82	42	94	51	36	30	AA	A2
500*100	71	45	112	57	54	45	AL	A2
600*100	76-80	44	113	60	49	36	AL	A2
600*125	56-64	43	124	76	61	30	AL	A2
650*110	88	48	114	76	60	34	AL	A2
650*120	78	44	130	91	69	38	AL	A2
700*100	80-98	48	125	75	58	50	AL	A2
700*125	56-64	55	144	68	56	32	AL	A2
750*150	66	62	176	94	68	38	AL	A2
800*125	80	62	175	95	88	32	AL	A2
M800*150	66-68	60	148	73	71	35	AL	A2
K800*150	67-70	80	189	108	78	35	AL	A2
900*150	68-80	80	200	101	66	48	AL	A2
1000*150	86	78	210	101	58	37	AL	A2

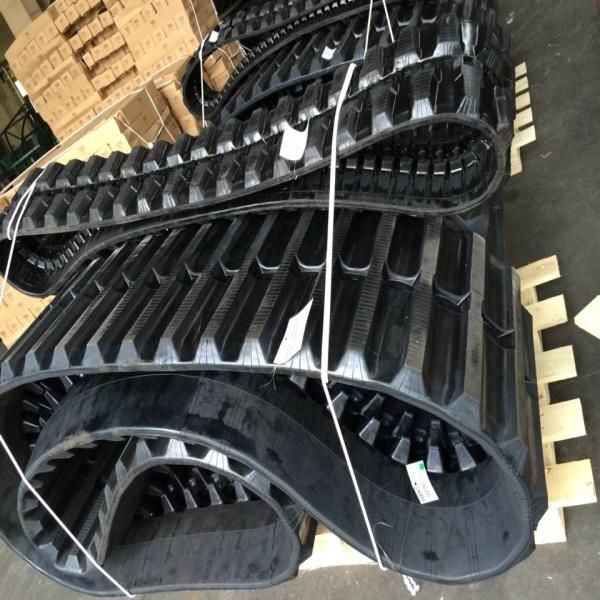

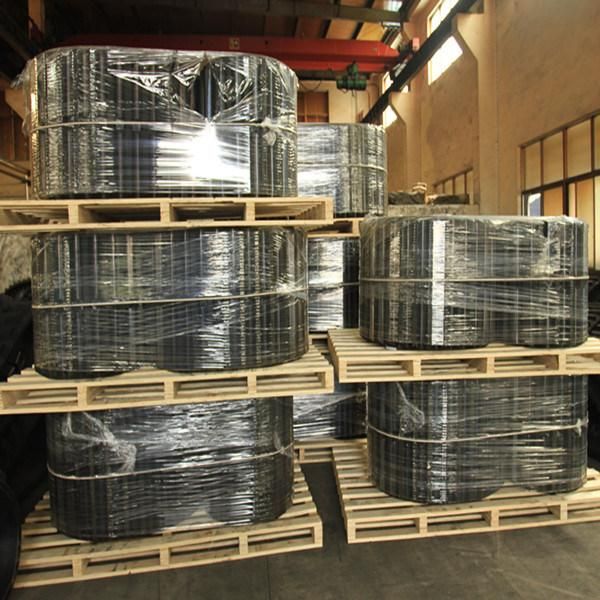

Packing Photos:

Parameters:
