• Model NO.：936
• HS Code：84295100
• Production Capacity：5000 Units Per Year

Performance
Rated loading
3000kg
Overall weight
9700kg
Bucket capacity
1.7-2.5m3
Maximum dump height
3100mm
Maximum dump reach
1006mm
Overall dimension (L×W×H)
7200*2470*3100 Mm
Minimum turning radius
5097mm
Engine
Model
DEUTZ TD226B
CUMMIN 6BT5.9-C130
Type
Vertical, in-line, water cooled, 4-stroke diesel engine
NO. of cylinder-bore*stroke
6-108*125
Rated power
92/97kw-2200r/min
Transmission system
Torque converter
HangChi 428
Gearbox mode
Power shaft normally engaged straight gear
Gears
2forward  1 reverse
Maximum speed
40km/h
Hydraulic system
System working pressure
16,5MPa
Boom lifting time
4.83
Total time
9.15±0.5s
Brake system
Service brake
Air assist disc brake on 4 wheels
Parking brake
Manual disk brake
Tyre
Type specification
17.5-25
Front tyre pressure
0.4Mpa
Rear tyre pressure
0.35Mpa

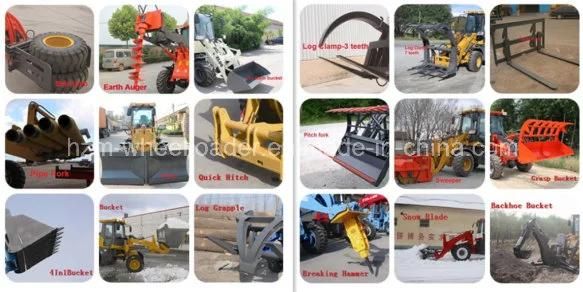

Optional Configuration and Attachments:



Air Condition

Rear video camera

Quick hitch

Sweeper

Pallet fork

Snow blower

Snow bucket

Dustpan bucket

grass fork

log clamp

Grass bucket

Auger

Snow blade

Grammar seat

Shipping and packaging

1 set can put in one 20GP including attachment

2 sets can put in one 40HC including attachment



We have 1 year warranty

if there is any part broken because of quality problem(except easy-damaged parts), sent the detailed pictures for us, then we will sent new parts for you.

We are specialized in mini wheel loaders as a professional manufacturer and exporter in China, all of our products are CE approved. We have many customers in European and American countries, now you can find our machines works in more than 32 countries.

Looking forward to provide you the most comprehensive field solutions and the most perfect products and services in the most crucial time



If you are interested in our products please do not hesitate to contact me
