• Model NO.：WL160
• Condition：New
• Rated Load：1.6ton
• Transmission：Hydraulic
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine Model：Xinchai A498bt1
• Rated Power：36.8kw
• Rated Bucket Capacity：0.5-0.9
• Operating Weight：4000kg
• Overall Size：5100*1700*2680
• Tyre：20.5,70-16
• Optional Engine：Xinchai 3e22rg51 E5
• Optional Tyre：70-16 23.5,70-16
• Rated Speed：2650rpm
• Wheel Base：2272mm
• Wheel Thread：1391mm
• Max.Breakout Force：64kn
• Max.Dump Height：2452mm
• Dump Distance：1146mm
• Total Time：11s
• Transport Package：3 Sets in One 40hq
• Specification：5100*1700*2680
• Trademark：Wolf
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：3000sets,Year
• Package size per unit product：5100.00cm * 1700.00cm * 2680.00cm
• Gross weight per unit product：4000.000kg

Basic Info.

Model NO. WL160 Condition New Rated Load 1.6ton Transmission Hydraulic Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Engine Model Xinchai A498bt1 Rated Power 36.8kw Rated Bucket Capacity 0.5-0.9 Operating Weight 4000kg Overall Size 5100*1700*2680 Tyre 20.5/70-16 Optional Engine Xinchai 3e22rg51 E5 Optional Tyre 70-16 23.5/70-16 Rated Speed 2650rpm Wheel Base 2272mm Wheel Thread 1391mm Max.Breakout Force 64kn Max.Dump Height 2452mm Dump Distance 1146mm Total Time 11s Transport Package 3 Sets in One 40hq Specification 5100*1700*2680 Trademark Wolf Origin Shandong, China HS Code 84295100 Production Capacity 3000sets/Year

Packaging & Delivery

Package size per unit product 5100.00cm * 1700.00cm * 2680.00cm Gross weight per unit product 4000.000kg

Product Description

 Configuration


Performance	Rated loading	1600kg
	Overall weight	4000kg
	Rated bucket capacity	0.9m3
	Maximum tractive force	≥34KN
	Maximum breakout force	≥51KN
	Maximum grade ability	30°
	Maximum dump height	2330mm
	Maximum dump reach	800mm
	Overall dimension (L×W×H)	5280×1680×2560mm
	Minimum turning radius	4367mm
Engine	Model	Xinchai 498(Euro III)
	Type	Vertical, in-line, water cooled, 4-stroke diesel engine
	No. of cylinder-bore/stroke	4-100×125mm
	Rated power	36.8kw-2200r/min
	Maximum torque	250N.m
	Min fuel-consume ratio	≤243g/kw.h
	Optional engine	Xinchai 3E22RG51 E5 45kw Kohler  KDI1903 EPA4 E5
Transmission system	Torque converter	YJ1-26501
	Gearbox mode	Countershaft power-shift
	Gear shift	2 forward shift  2 reverse shift
	Maximum speed	24km/h
Drive axles	Main reducing spiral	Circular Arc Bevel gear, single stage
	Decelerating mode	Single stage planetary type
	Wheelbase (mm)	2150mm
	Wheel tread	1440mm
	Ground clearance	310mm
Hydraulic system	System working pressure	16MPa
	Boom lifting time	4.8s±0.2s
	Total time	9.2s±0.5s
	Fuel tank capacity	80L
	Function of leveling automatically	Yes
Brake system	Service brake	Air assist disc brake on 4 wheels
	Parking brake	Flexible shaft operated external drum
Tyre	Type specification	20.5/70-16
	Optional tyres	23.5-16 agricultural tires
	Front tyre pressure	0.22Mpa
	Rear tyre pressure	0.18Mpa

Why do I choose WOLF Loader

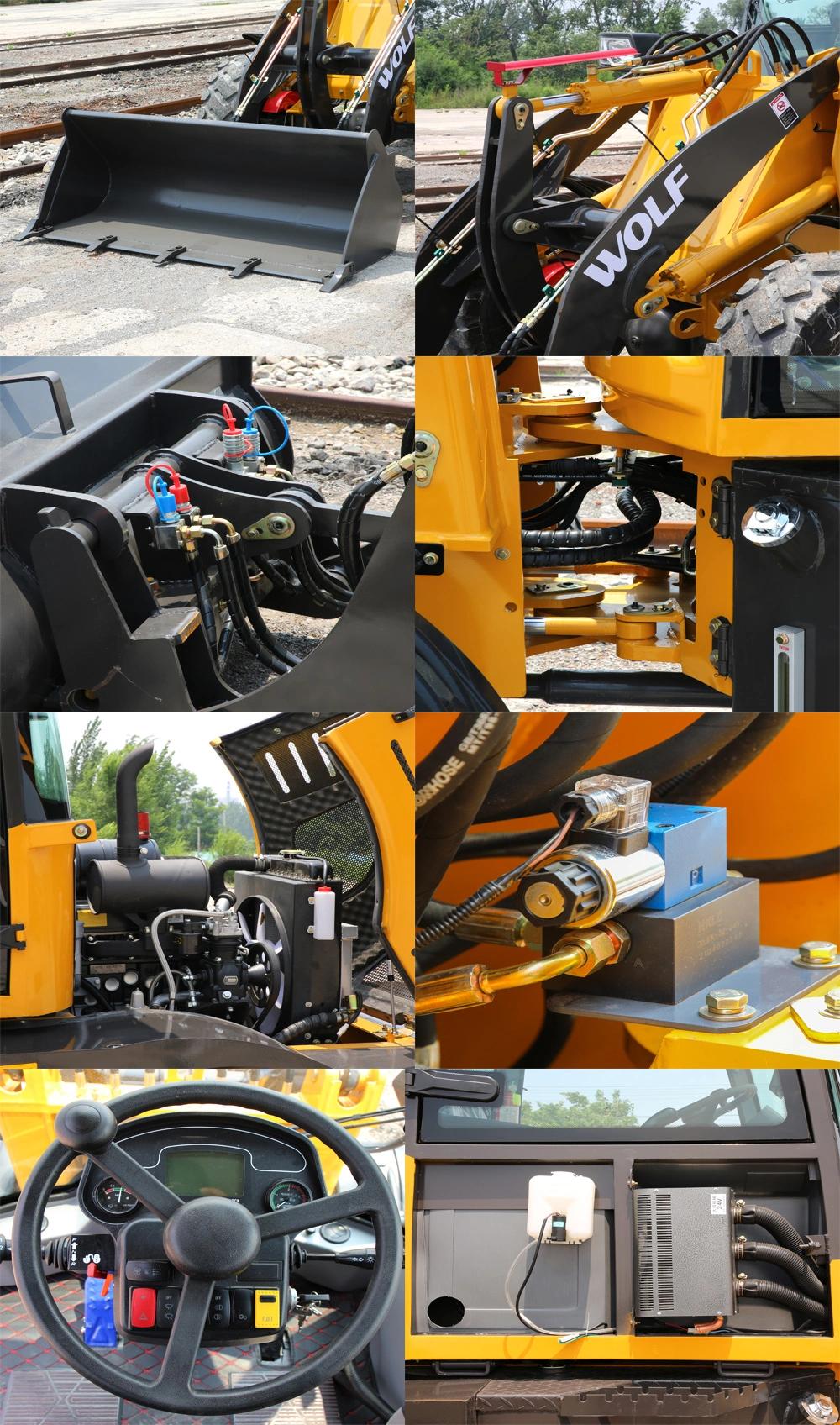

Wolf has always paid attention to the details of the machinery,not only the frame, structure, axle, but also the inside of the cabin.

Such perfect details make Wolf's machines look very different.

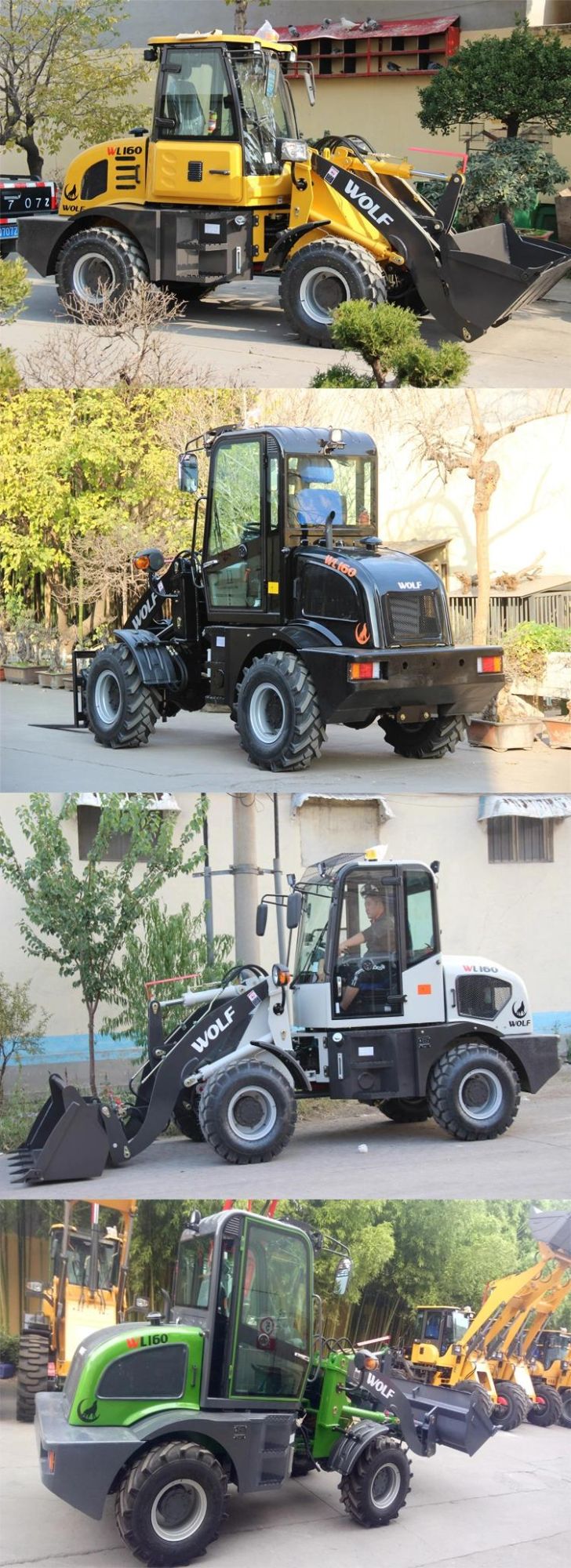

WL160 is a very popular product in Europe,American and Asia.

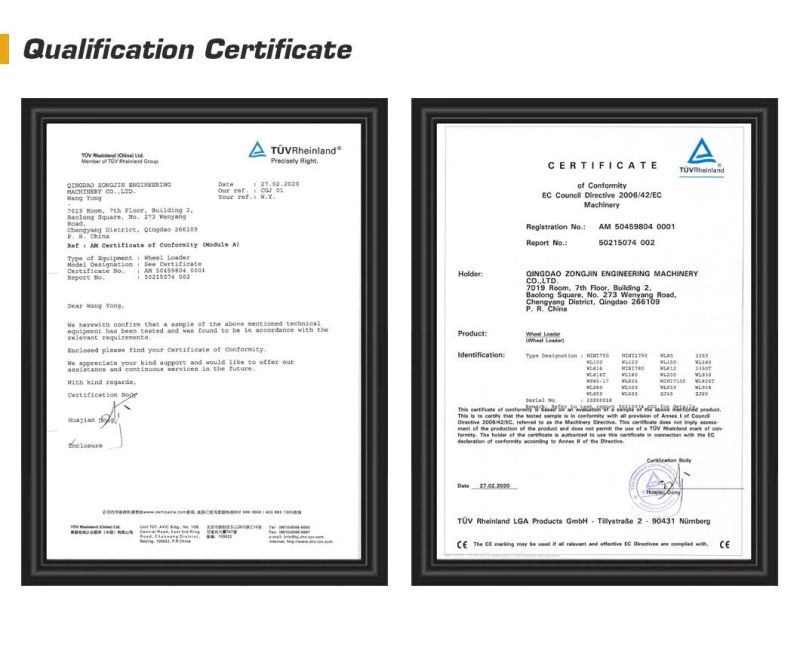

Does Wolf have Any Certification?

Every Wolf Loader with CE Certification which can ensure the Wolf Quality.

To meet different market's environment standards,there are serval kinds engine can be equipped with WL160.
Such as the E5 engine to meet the European market and EPA4 engine to meet the American and Canada market.





What kind of work can I do by using the loader?

WL160 loader is one economical loader for both of the farm and construction.

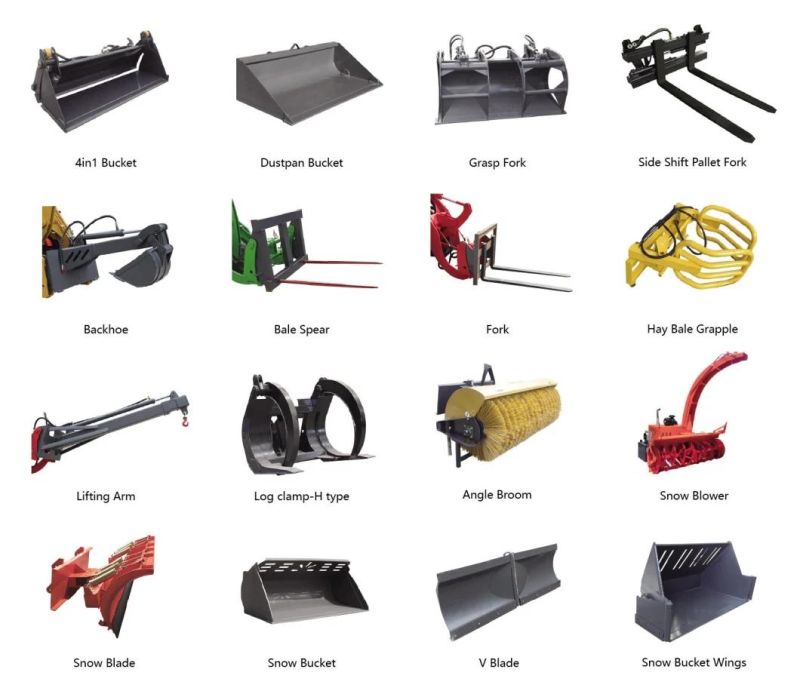

With different attachments help you do different works.

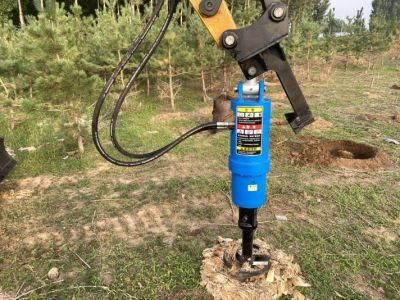

Such as the pallet fork, 4 in 1 bucket, snow blade, grass cutter etc to meet your demands.

Enjoy Every Loading Day

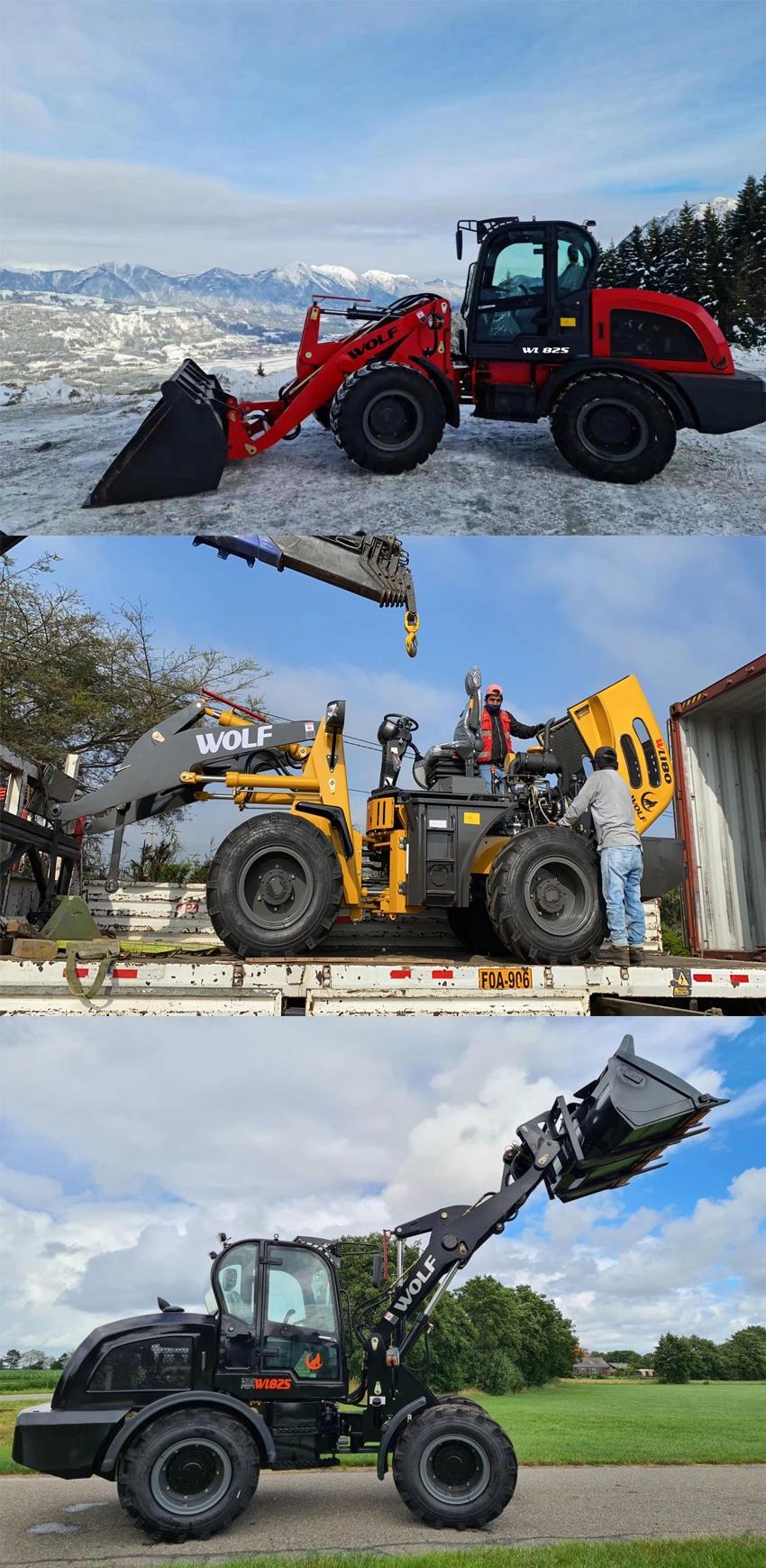

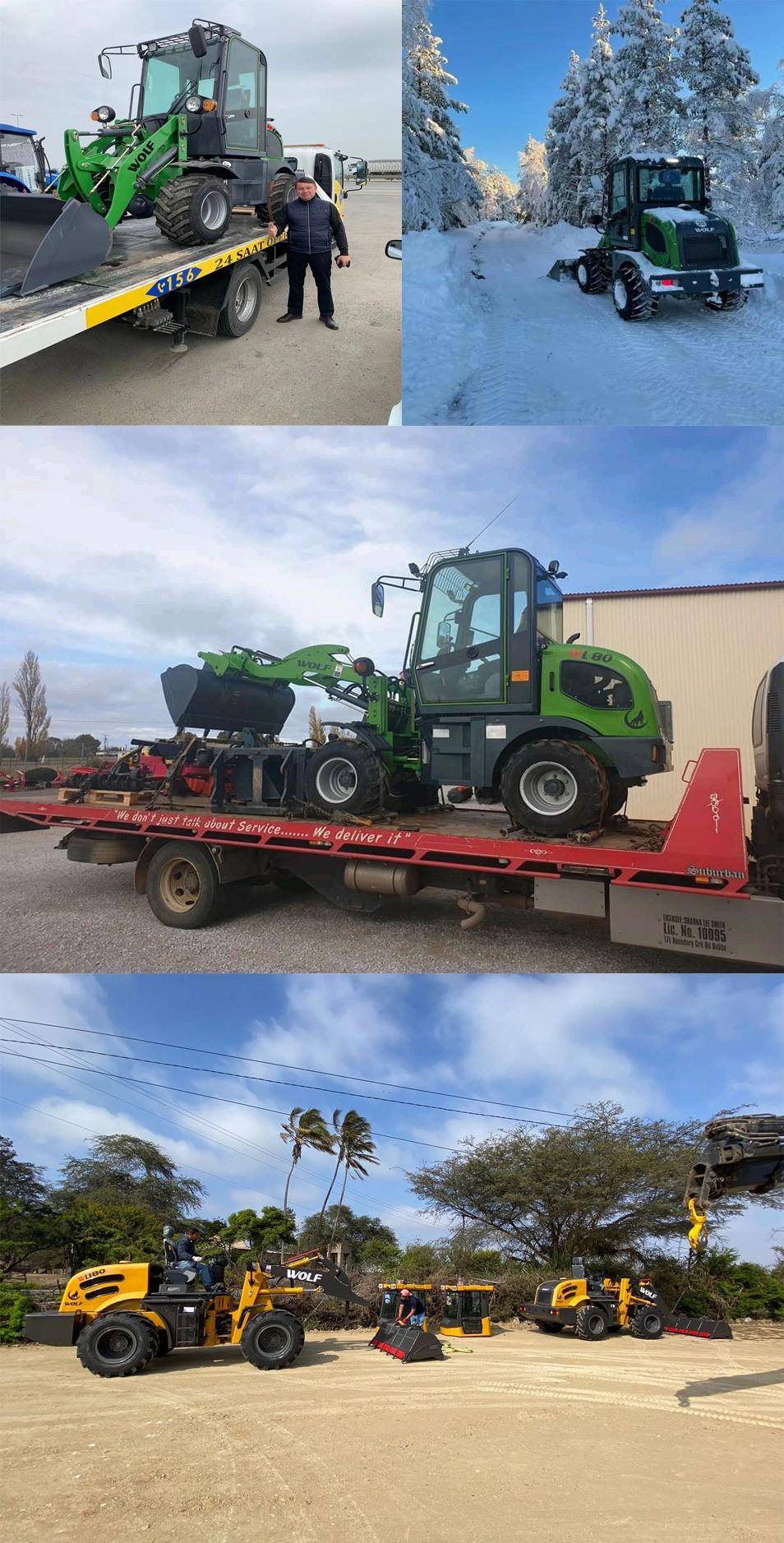

Wolf in different Country
