Hand Push Thermoplastic Road Marking Machine

Hangzhou Eaglerd Traffic Industry & Trade Co., Ltd.
  • Type：Road Marking Machine
  • Object：Asphalt Concrete Pavement
  • Moving Type：Mobile
  • Mixing Method：Intermittent Compulsory
  • Automatic Grade：Non-Automatic
  • Product Capacity：3ton, 4km

Base Info

  • Model NO.：None
  • Certification：ISO9001: 2000
  • Condition：New
  • Transport Package：Wooden Case
  • Specification：Dimension: 1100*980*1000mm
  • Trademark：Eaglerd
  • Origin：China
  • HS Code：8479109000
  • Production Capacity：5000sets,Year

Description

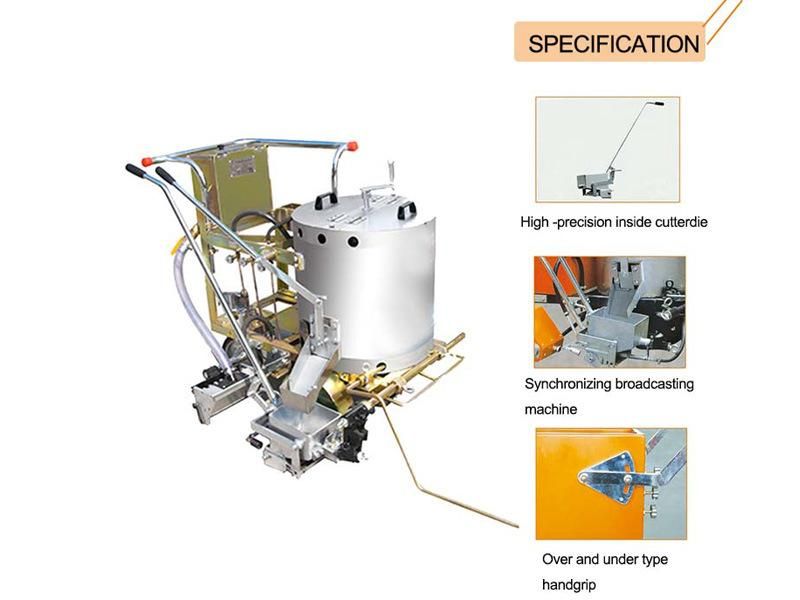

1. Paint  barrels:  Stainless steel heater and double high-carbon steel bottom, vertical paddle mixer with 100kg capacity.2. Glass bead box:10kg/box3. Glass beads sow brower:Self gear shifting seeding. It can adjust glass beads sowing width according to line adjustment.4.Marking shoe:High-prcision ultra-thin material manufacturing and scraper-type structure, the standard configuration is 150mm5. Landing knife:Carbide, with eccentric sleeve device canadjust the thickness from 1-3mm6. Alloy Wheel:Use special heat-resistant rubber, it has a positioning device upon back wheel to make sure a straight line direction7.Heating method:Petroleum gas8.Marking Width:Engineering requirements in accordance with the replacement of different specifications marking shoes within 10/15/20/30/40/45cm9.Size:1100*980*1000mm10Net weight:

110kg
