• Model NO.：G9190
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Operating Weight(Standard)：15800kg
• Min. Turning Radius：7.6 M
• Max. Speed(Forward/Reverse)：40,30 Km,H
• Max. Tractive Force (F=0.9)：78 Kn
• Cutter Size：3962*635*25 mm
• Unique Selling Point：High Operating Efficiency
• Location：Shandong China
• Color：Yellow
• Attachments：Rear Ripper
• Engine：Weichai Engine
• Gearbox：Yd13 Power Shift Gearbox
• Usage：Construction of Subgrade and Pavement
• Features：Flexible and Accurate Movements, Easy to Operate
• Hydraulic Valve Brand：Imported
• Transport Package：Iron Frame Wooden Box
• Specification：8975*2710*3240 mm
• Trademark：SD,LG
• Origin：China
• HS Code：84292010
• Production Capacity：500pices,Year

Basic Info.

Model NO. G9190 Walking Mode Wheeled Type Medium-sized Grader Operating Weight(Standard) 15800kg Min. Turning Radius 7.6 M Max. Speed(Forward/Reverse) 40/30 Km/H Max. Tractive Force (F=0.9) 78 Kn Cutter Size 3962*635*25 mm Unique Selling Point High Operating Efficiency Location Shandong China Color Yellow Attachments Rear Ripper Engine Weichai Engine Gearbox Yd13 Power Shift Gearbox Usage Construction of Subgrade and Pavement Features Flexible and Accurate Movements, Easy to Operate Hydraulic Valve Brand Imported Transport Package Iron Frame Wooden Box Specification 8975*2710*3240 mm Trademark SD/LG Origin China HS Code 84292010 Production Capacity 500pices/Year

Product Description

 190HP Motor Graders G9190 for sale Technical Features

G9190 is a product of high speed, high efficiency, high accuracy and multiple purposes developed by on the basis of advanced technology of VOLVO, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely applied in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland improvement and so on.
1. Electrically-controlled variable power DEUTZ engine is used and has three power curves in perfect matching with Advance transmission case, which makes it available to select applicable power mode based on load to realize an optimum performance and fuel efficiency and high efficiency and energy saving function.
2. It is equipped with dual-cylinder driven tray-type working device of advanced VOLVO technology and domestic industrial originated dual rotatory cylinder and rotatory valve structure which is of large drive power and can rotate with load.
3. FOPS/ROPS cab is safe and reliable and of good sealing performance; It has wide visual field and is conductive to observe the condition of two ends of shovel nose tool in turning, crabbing and leveling rim angle, with high operational accuracy.
4. Swing frame is made of lubrication-free and maintenance-free composite bearing, with small frictional coefficient, high reliability and is shock-proof and wear-proof; Hydraulic lock cylinder location is adopted and is easy to operate.
5. Shovel nose tool structure and cylinder is reasonably arranged, with high levelness in operation.
6. Electrical system of the entire machine has centralized control, three-stage alarm electronic monitoring system, digitalized stepping instrument display, high man-machine interaction and is convenient for detection and maintenance; the entire machine control has automatic cruise function, which can get engine operated in setting speed and thus reduces the labor strength of operation person.
7. It is optional to mount auxiliary appliances such as front blade, middle rock ripper and rear rock ripper to meet various demand of customer.

Technical parameters

Item	Specifications	Item	Specifications
LxWxH	8975x2710x3240mm	Model	BF6M1013EC
Overall weight	15800kg	Rated power	146kw/2200r/min
Cutter diameter	1626mm	Engine displacement	7.146L
Cutter size	3962x635x22mm	Transmission model	6WG180
Swing angle of blade	360o	Transmission type	Fixedshaft power shift
Ground clearance of blade	445mm	Gears	Six forward three reverse
Cutting depth of blade	787mm	Hydraulic system	Open-type system
Max.tractive force	82kN	Fuel	270L
Max.speed(forward/reverse)	38/23km/h	Hydraulic oil	132L

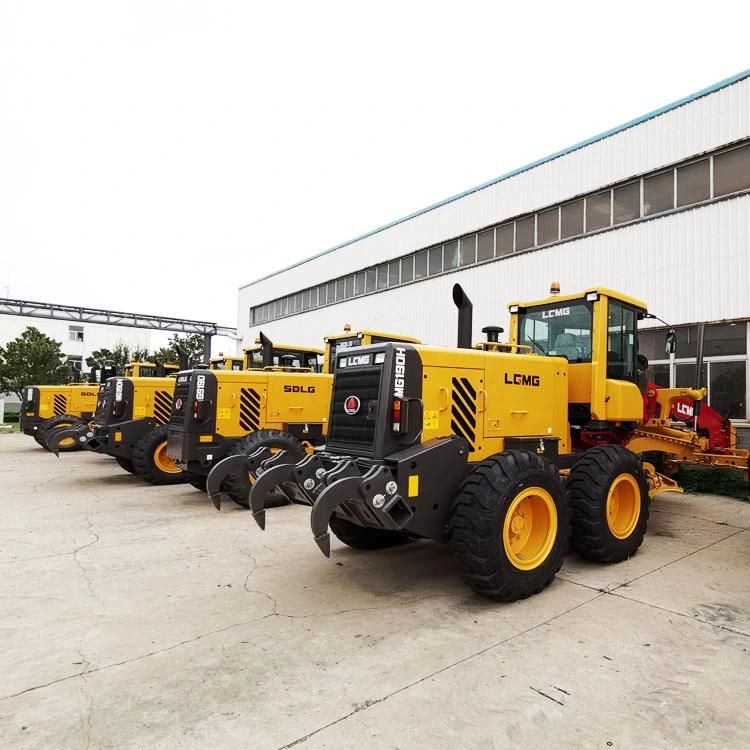

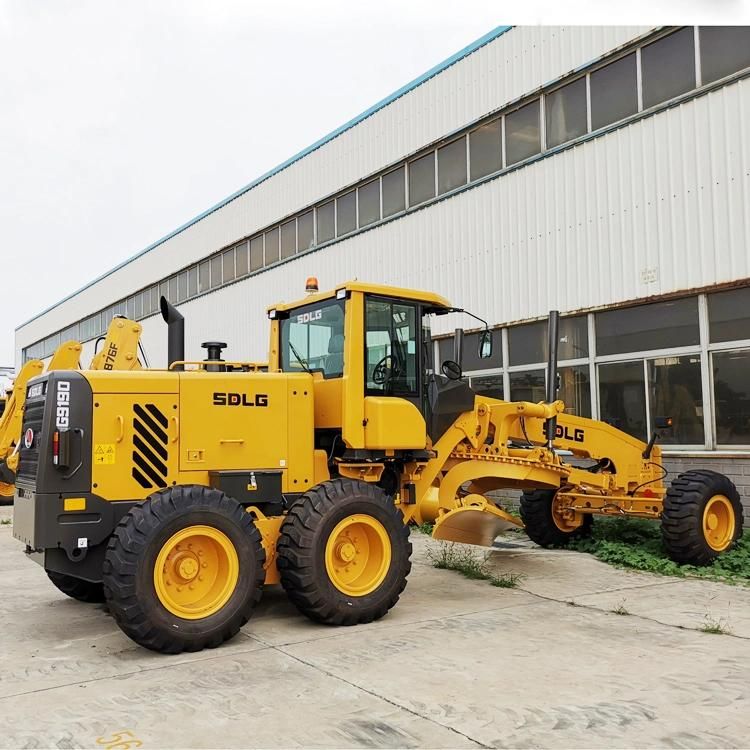

Detailed Images
