• Model NO.：SD13
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Weight：13700kg
• Engine：Shangchai
• Blade Width：3185mm
• Blade Height：1090mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：Dozer 130HP Bulldozer SD13 with Ripper and Attachm
• Trademark：Shantui
• Origin：China
• HS Code：8429119000
• Production Capacity：35sets,Month

PRODUCTSD13 PERFORMANCE PARAMETERSOperatiing   Weight (kg)13700Rated horsepower (kw/hp)105/130Minimum turning radius (mm)3880Ground pressure (kpa)53.8ENGINEModelSC8D143G2B1EmissionChina   IITypeIn-line,direct   injection,water cooled,4-cycles,turbochargedNo.of cylinders×Bore×stroke (mm×mm)6×114×135Piston displacement (L)8.27Horsepower/rpm (kw/rpm)105/1900Maximum torque (N.m/r/min)674/1300DIMENSIONSLength(mm)4492Width(mm)3185Height(mm)2950TRAVELING PERFORMANCEForward/Reverse(km/h)F1:0-3.2   F2:0-5.9 F3:0-9.8 R1:0-3.9  R2:0-7.1   R3:0-11.9Gradeability(deg)30Clearance(mm)320TRANSMISSIONTorque   convertor 3-element, single stage, 1-phaseGear boxPlanetary   gear and powershift transmission, hydraulically actuated, forced lubricationMain driveSpiral   bevel gear, single-stage speed reduction, splash lubricationSteering clutchWet   multiple disc,coned disc spring loaded, hydraulically actuated, hand   operated,interconnected with steering brakeBrake Wet, contracting band,foot operated with   hydraulic boosterFinal driver spur gear,double reduction ,splash   lubricationUNDERCARRIAGESuspensionSwing   type of sprayed beam,suspended structure of equalizer barTrack gauge (mm)1880Shoe width (mm)460Track length on ground (mm)2365Number of shoes (each side)38Pitch (mm)190Carrier rollers (each side)2Track rollers (each side)6WORKING HYDRAULIC SYSTEMPressure(Mpa)14Working pumpGear   pumpValveMulti-way   valveBore of blade lift cylinder (mm)φ90Bore of blade tilt cylinder (mm)φ160TANK CAPACITYFuel   tank capacity (L)300Working hydraulic tank capacity (L)70WORKING EQUIPMENTBlade   width (mm)3185Blade height (mm)1090Blade capacity (m³)3.7

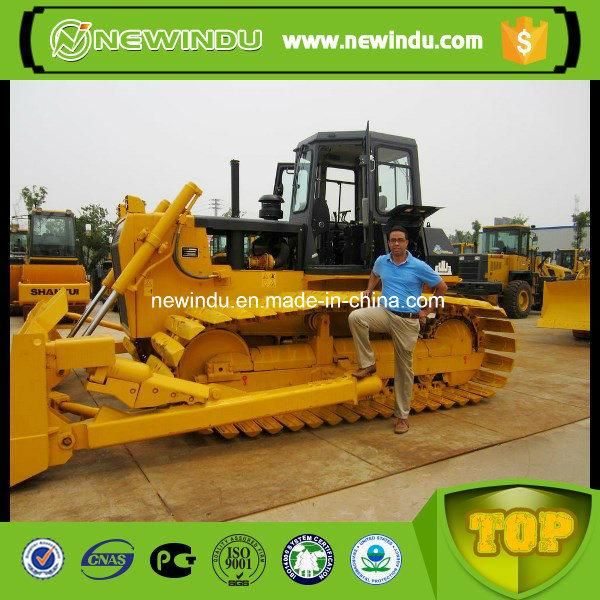

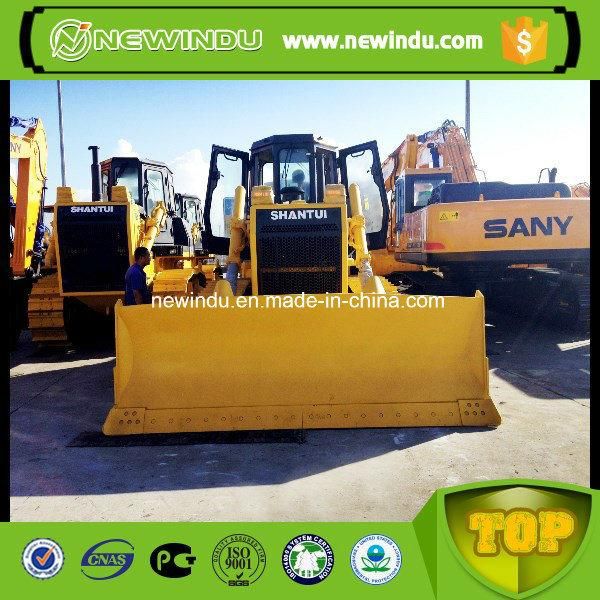

SD13 bulldozer adopts hydraulic drive and operation mode, featuring advanced and reasonable overall structure and good performances. This series bulldozer features moderate power, high technologic extent, and extensive application scope and is deeply favored by extensive users.

For mid-range volume work, the SD13 does the work in good time. A smaller version of our best-selling SD16 line, but with all the durability and reliability of its larger cousin series.

[Product Strengths]

1.The turbocharged engine features strong power, high efficiency and energy-saving, and high torque reserve efficiency.

2.The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating effic

3.The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances.

4.The valves and pumps are reasonably arranged to ease the repairs and maintenances. The multi-stage filtration system is adopted to effectively guarantee the oil cleanliness and reduce the malfunction rate of hydraulic system.

5.The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.

6.The electric system features stable and reliable working. All instruments are controlled by microcomputer, featuring vivid and distinct display and accurate and convenient readings.

7.The rigid traveling system effectively improves the stability of machine under complicated working conditions.

8.The comfortable and convenient operating console, light controls, and adjustable seat and armrests provide the operation personnel with comfortable operating experiences.

9.The working device features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions.

10.The standard straight tilting blade features strong cutting force to handle all kinds of severe working faces and the outstanding durability of blade is guaranteed by the application of high strength structure and high performance materials.

[Applicable Working Conditions]
Earthworks.

[Current sales conditions]

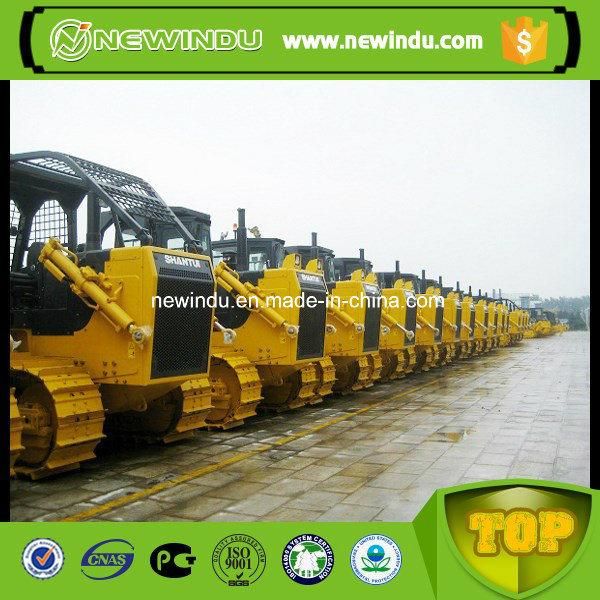

As one of the most popular Shantui products, this bulldozer has been sold all over the world.
