• Model NO.：Gr135
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Dimension(Lxwxh)：8015*2380*3050mm
• Max. Grade Ability：30%
• Working Hydraulic Pressure：16MPa
• Name：XCMG Official Mini Motor Grader Gr135 Gr180 with R
• Maximum Lift Above Ground：410mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Jiangsu, China
• HS Code：84292090
• Production Capacity：1000 , Year

Overview Product Description

1.The GR135 adopts a Dongfeng Cummins 6BT5.9-C130-II turbocharged diesel engine, which has a large output torque and power reserve factor and low fuel consumption.

2.The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

3.The drive axle is a dedicated XCMG axle.

4.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.

5.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.

6.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.Product Parameters

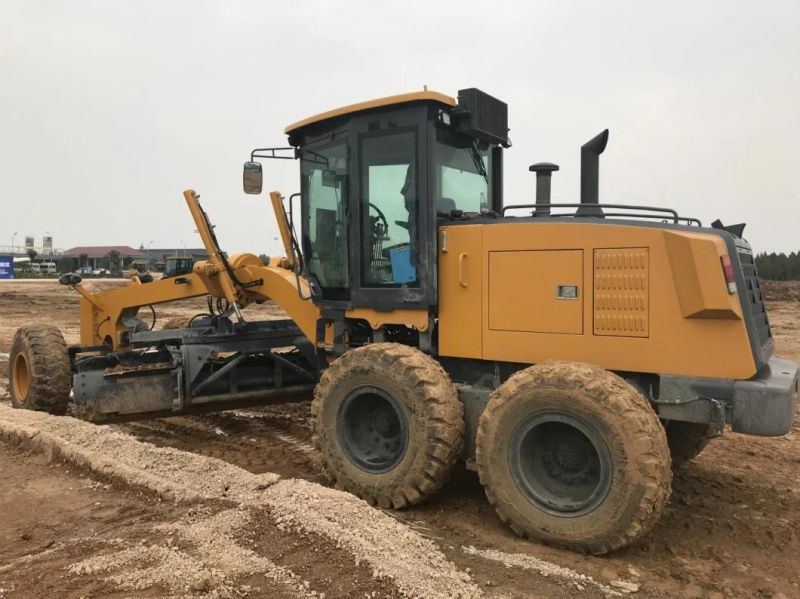

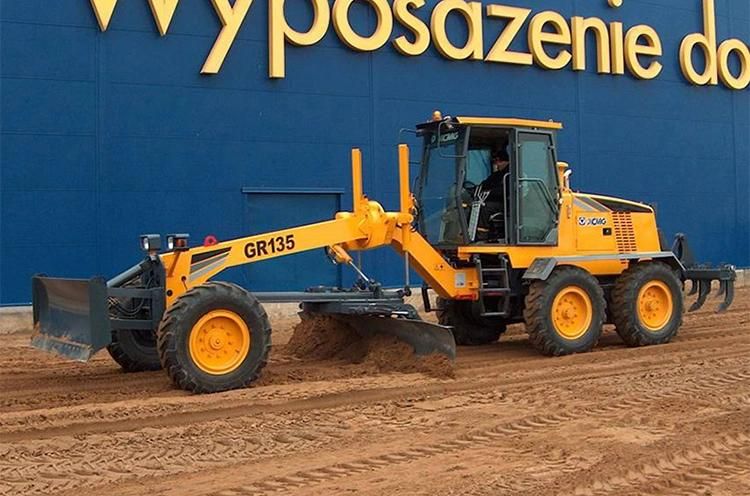

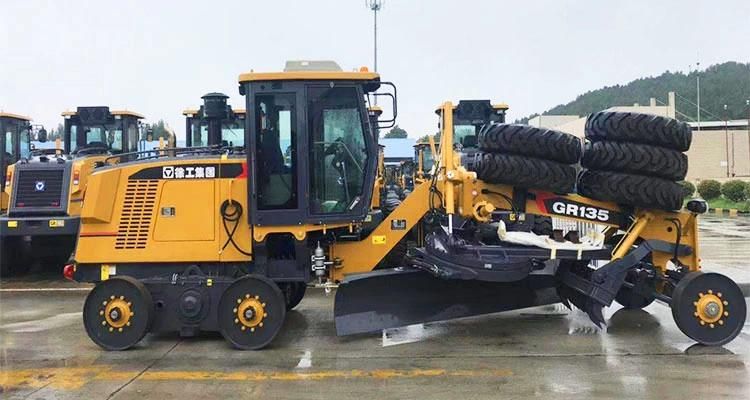

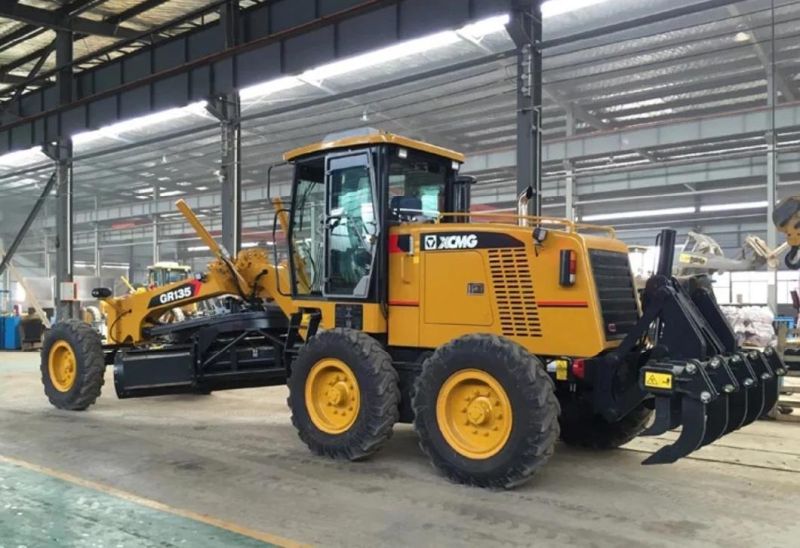

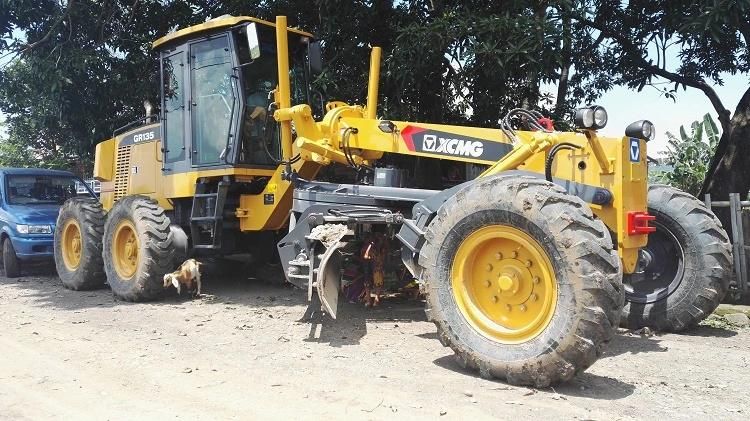

Basic specificationEngine model6BT5.9Rated power/speed100/2200kw/rpmDimension(LxWxH)8015×2380×3050mmOperating weight(Standard)11200kgPerformance specificationTravelling speed ,forward5,8,13,20,30,42km/hTravelling speed ,reverse5,13,30km/hTractive force(f=0.75)61.3KNMax. grade ability30%Tire inflation pressure300kPaWorking hydraulic pressure16MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±49°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box16Frame articulation angle±27°Min. turning radius using articulation6.6mBiadeMaximum lift above ground410mmMaximum depth of cutting515mmMaximum blade position angle90°Blade cutting angle54°-90°Circle reversing rotation360°Moldboard width X height3710×610mmProduct Show



Company Profile



FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
