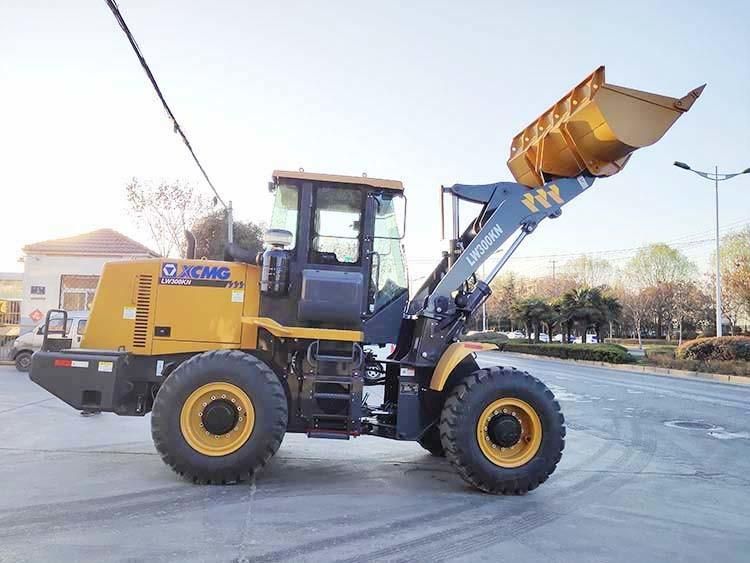

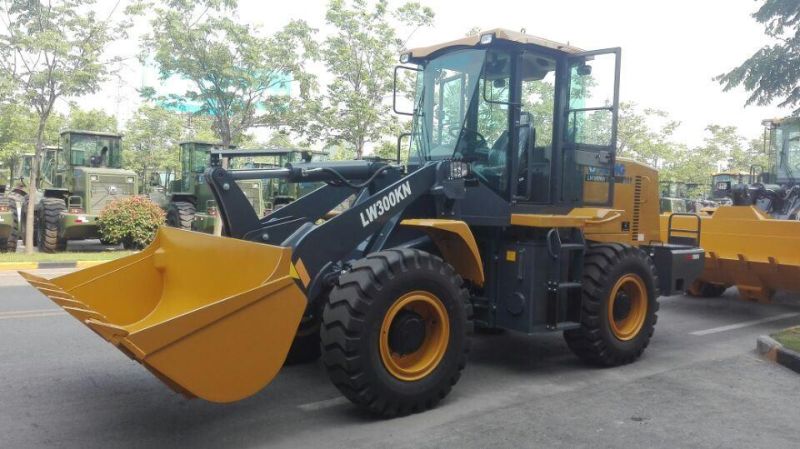

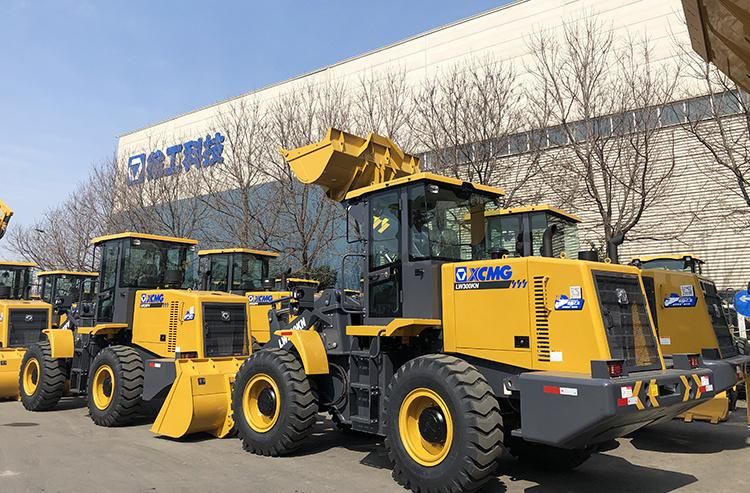

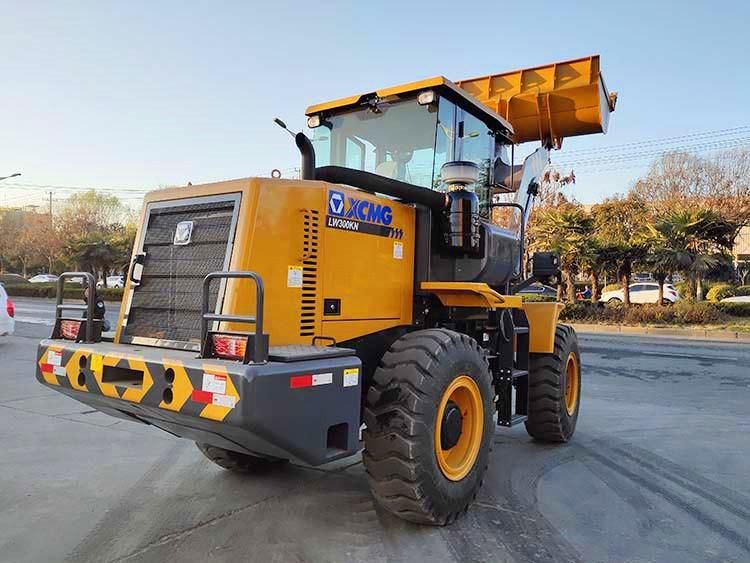

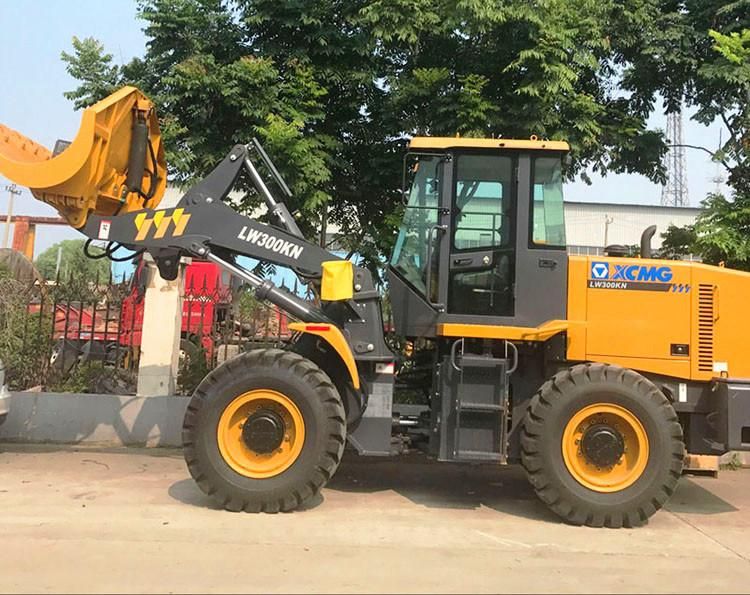

New 3ton Wheel Loader, Truck Loader for Sale
Xuzhou Construction Machinery Group Co., Ltd.- After-sales Service:Overseas Service Center Available
- Warranty:1year
- Certification:TUV, CE, ISO9001: 2000
- Condition:New
- Rated Load:3000kg
- Transmission:Hydraulic Transmission
Base Info
- Model NO.:LW300KV
- Walking Mode:Wheeled
- Type:Medium-sized Loader
- Rated Bucket Capacity:1.9m3
- Minimum Turning Radius:6060mm
- Usage:Universal Type
- Scraper Type:Pull Scraper
- Load and Unload Method:Front Discharge
- Color:Yellow
- Engine Power:92kw
- Transport Package:Comply with Export Packaging Requirements
- Specification:ISO
- Trademark:XCMG
- Origin:Xuzhou, Jiangsu, China
- HS Code:84295100
- Production Capacity:1000,Year
Description
Overview
Product Description
XCMG's patented lubrication technology - The transmission is applied with the XCMG's patented optimal lubrication system design technology to thoroughly improve the indus- try's difficulties of insufficient and non-uniform transmission lubrications and make the transmission life remarkably leading the industry.
XCMG's patented high strength frame - With the application of the XCMG's exclusive high strength single plate beam skeleton structure, the "load-carrying material ratio" is remark- ably leading the industry products.
XCMG's unique structure design - The extended wheelbase and the classic 3rd generation loader structure realize higher working capacity, smaller turning radius, and lower wear of rear wheels.Product Parametersltem Specifications unit Rated load 3000 kg Rated bucket capacity 1.5-2.5 m³ Operation mass 10600±200 kg Dumping height(from ground to main blade plate) 2770-3260 mm Dumping distance(from the front wheel to main blade plate) 1010-1210 mm wheel base 2900 mm Tread 1850 mm Maximum breakout force 130 KN Maximum traction force 95 KN lifting time of swing arm 4.9 s Total cycling time 8.8 s Minimum turning radius(outer edge of bucket) 6020 mm Minimum turning radius(tire center) 5170 mm Articulated angle 38±1 ° Gradeability 28 ° tire size 17.5-25-12PR Overall demension of machine(L×W×H) 7245×2482×3320 Engine model WP6G125E333/SC7H125.1G3 Rated power/rotate speed 92/2000 kW/rpm Travel speed Gear I(F/R) 12/16 km/h Gear II(F) 0~38 km/h Product Show
FAQ
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
As an outstanding representative of the industry's super-heavy-duty models, LW300KV boasts remarkable advantages in terms of "High energy-conservation, efficiency, reliability, and comfort" compared with industry's like products and is extensively applicable for earth- moving projects, aggregate yards, municipal constructions, and other bulk material trans- ports.
XCMG's exclusive energy-conservation technology - The perfect combination between XCMG's patented energy-conservation drive system and low speed energy-conservation engine builds the one and only 3t energy-conservation product in the industry, with the economy superior by >10% to the industry's like products.XCMG's patented lubrication technology - The transmission is applied with the XCMG's patented optimal lubrication system design technology to thoroughly improve the indus- try's difficulties of insufficient and non-uniform transmission lubrications and make the transmission life remarkably leading the industry.
XCMG's patented high strength frame - With the application of the XCMG's exclusive high strength single plate beam skeleton structure, the "load-carrying material ratio" is remark- ably leading the industry products.
XCMG's unique structure design - The extended wheelbase and the classic 3rd generation loader structure realize higher working capacity, smaller turning radius, and lower wear of rear wheels.Product Parameters
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
