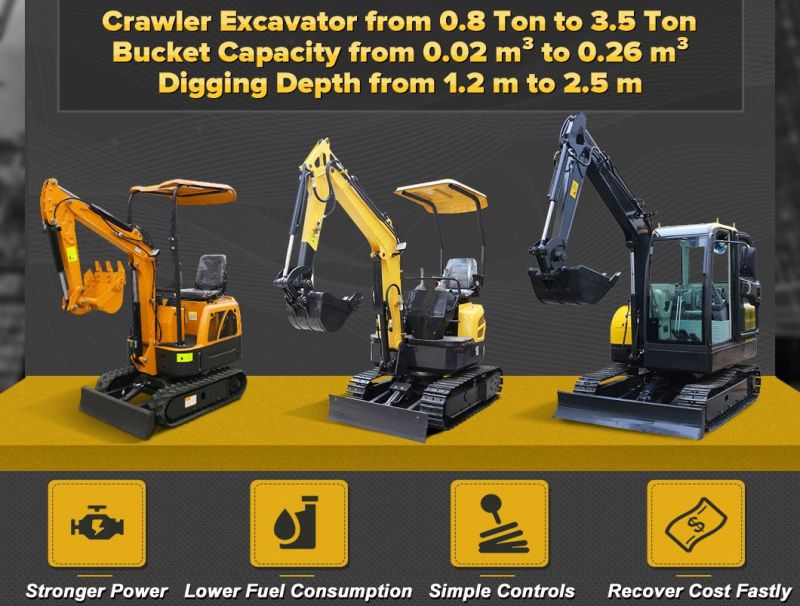

• Model NO.：0.8 Ton to 3.5 Ton
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.02 ~ 0.26 Cbm
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• OEM Supported：Yes
• Rated Speed：0 ~ 5 Km,H
• Moving Type：Self-Propelled
• Gradeability：35 Degree
• Engine：Yanmar ,Changchai ,Koop
• Engine Type：Water Cooling,Air Cooled
• Rated Power：7.5-34kw
• Transmission Type：Hydraulic,Mechanical
• Crawler Material：Rubber,Steel
• Crawler Type：General,Telescopic
• Operating System：Mechanical,Hydraulic Pilot
• Closed Cab：Optional
• Max. Digging Radius：2400-3860mm
• Max. Digging Depth：1200-2545mm
• Transport Package：Standard Exported Wooden Case
• Specification：0.8 Ton to 3.5 Ton
• Trademark：VOTE
• Origin：Shandong, China (Mainland)
• HS Code：8429521200
• Production Capacity：100 , Month

Basic Info.

Model NO. 0.8 Ton to 3.5 Ton Drive Type Internal Combustion Drive Bucket Capacity 0.02 ~ 0.26 Cbm Size Small-Scale Certification CE, ISO9001: 2000 Condition New OEM Supported Yes Rated Speed 0 ~ 5 Km/H Moving Type Self-Propelled Gradeability 35 Degree Engine Yanmar /Changchai /Koop Engine Type Water Cooling/Air Cooled Rated Power 7.5-34kw Transmission Type Hydraulic/Mechanical Crawler Material Rubber/Steel Crawler Type General/Telescopic Operating System Mechanical/Hydraulic Pilot Closed Cab Optional Max. Digging Radius 2400-3860mm Max. Digging Depth 1200-2545mm Transport Package Standard Exported Wooden Case Specification 0.8 Ton to 3.5 Ton Trademark VOTE Origin Shandong, China (Mainland) HS Code 8429521200 Production Capacity 100 / Month

Product Description

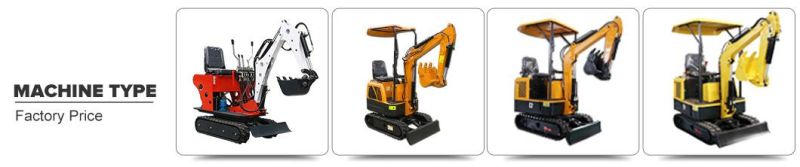

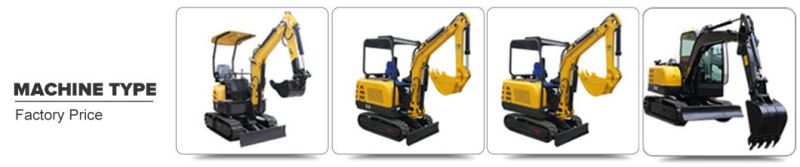

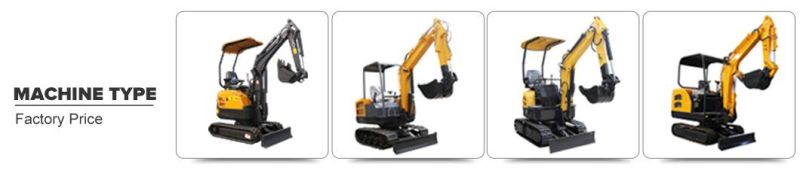

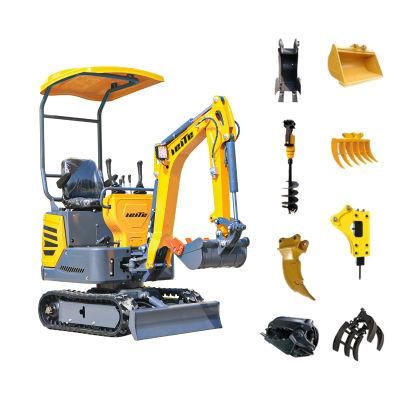

Chinese cheap prices crawler small digger machine new mini excavator

Model	VTW-08	VTW-10	VTW-13	VTW-15
Operating Weight	800 kg	1,000 kg	1,300 kg	1,500 kg
Rated Power	8.6 kw (11.7 hp)	7.5 kw (10.2 hp)	14.1 kw (19.2 hp)	14.1 kw (19.2 hp)
Engine	Koop 1-Cylinder	Changchai 1-Cylinder	Koop 2-Cylinder	Koop 2-Cylinder
Bucket Capacity	0.02 m³	0.025 m³	0.025 m³	0.035 m³
Max. Digging Radius	2450 mm	2400 mm	2400 mm	2600 mm
Max. Digging Depth	1200 mm	1400 mm	1400 mm	1600 mm
Max. Digging Height	2350 mm	2490 mm	2490 mm	2690 mm
Max. Dumping Height	1600 mm	1750 mm	1750 mm	1950 mm
Overall Width	720 mm	920 mm	940 mm	1100 mm

Model	VTW-17NY	VTW-18	VTW-18NY	VTW-20
Operating Weight	1,700 kg	1,800 kg	1,800 kg	2,000 kg
Rated Power	10 kw (13.6 hp)	22 kw (30 hp)	10 kw (13.6 hp)	18.1 kw (24.6 hp)
Engine	Yanmar 3-Cylinder	Laidong 3-Cylinder	Yanmar 3-Cylinder	Laidong 3-Cylinder
Bucket Capacity	0.045m³	0.1 m³	0.045 m³	0.06 m³
Max. Digging Radius	3560 mm	4060 mm	3560 mm	3860 mm
Max. Digging Depth	2150 mm	1800 mm	2150 mm	2050 mm
Max. Digging Height	3275 mm	2900 mm	3275 mm	3365 mm
Max. Dumping Height	2310 mm	2200 mm	2310 mm	2385 mm
Overall Width	1050 mm	1300 mm	1050 mm	1050 mm

Model	VTW-20NY	VTW-25	VTW-30	VTW-35
Operating Weight	2,000 kg	2,500 kg	3,000 kg	3,500 kg
Rated Power	10 kw (13.6 hp)	22.1 kw (30 hp)	22 kw (30 hp)	34 kw (46 hp)
Engine	Yanmar 3-Cylinder	Changchai 3-Cylinder	Changchai 3-Cylinder	Changchai 4-Cylinder
Bucket Capacity	0.06 m³	0.06 m³	0.1 m³	0.26 m³
Max. Digging Radius	3660 mm	3860 mm	3860 mm	3860 mm
Max. Digging Depth	2250 mm	2500 mm	2500 mm	2545 mm
Max. Digging Height	3375 mm	3650 mm	3900 mm	4450 mm
Max. Dumping Height	2410 mm	2265 mm	2600 mm	3050 mm
Overall Width	980 - 1300 mm	1200 mm	1400 mm	1600 mm

1. Excavators with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
