• Model NO.：Hydraulic Breaker
• Name：Hydraulic Breaker
• Type 1：Top Type
• Type 2：Side Type
• Type 3：Box Type
• Colour：OEM
• Transport Package：Wooden Cases
• Specification：2000*1000*1000mm
• Trademark：megacryst
• Origin：China
• HS Code：84122100
• Production Capacity：50000PCS Per Year

Basic Info.

Model NO. Hydraulic Breaker Name Hydraulic Breaker Type 1 Top Type Type 2 Side Type Type 3 Box Type Colour OEM Transport Package Wooden Cases Specification 2000*1000*1000mm Trademark megacryst Origin China HS Code 84122100 Production Capacity 50000PCS Per Year

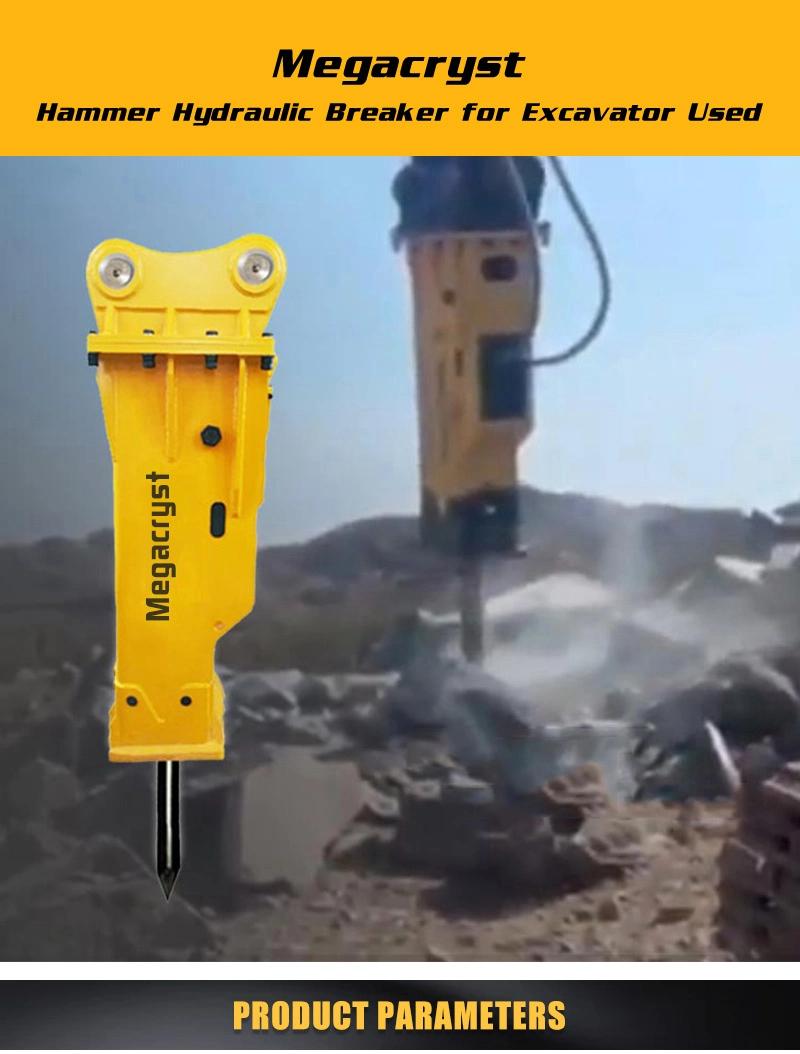

Product Description

Hydraulic breakers are mainly for construction of roads,bridge and mines,construction of ditchs and asphalt pavements,coal mine,quarry and broken stone,quarry and asphalt pavements.There are lots of kinds,firstly,Soosan type,such as MEG45,MEG53,MEG68 MEG75,MEG85,MEG100,MEG140,MEG155,MEG165,MEG175MEG185,MEG 195...Secondly,Furukawa type,such as 15G,20G,30G,40G...They are mainly for different markets.For the chisels,there are for types to choose.moil.wedge,blunt and cone.They are for different uses.

Contents	Model	MEG40	MEG45	MEG53	MEG68	MEG75	MEG85	MEG100	MEG125
Body  Weight	Kg      Ibs	53               117	68         150	86       189	151        333	212         467	280          617	471           1037	618      1361
Total weigh(Side/Top/Slience)	kg	70/72/102	92/92/126	155/155/152	258/338/356	332/407/448	557/635/731	753/858/999	1275/1306/1369
Length(Side)	mm   inch	940       37	1053      41.46	1170       46.06	1415       55.71	1480       60.41	1735       68.31	1994      78.5	2285      90
Width (side)	Mm  inch	176     6.93	215       8.46	229        9.02	295    11.61	295     11.61	412      16.22	390    15.35	480     18.9
Operating Pressure	Kg/cm² psl  bar	90-120 1280-1700 88-117	90-120 1280-1700 88-117	90-120 1280-1700 88-117	110-140 1562-1988 108-137	120-150 1704-2130 118-147	130-160 1846-2272 128-157	150-170 2130-2414 147-166	150-170 2130-2414 147-166
Hydraulic flow range	I/min Gal/min	15-25     4-7	20-30     5-8	25-50        6.6-13.2	40-70             10.5-18.5	50-90  13.1-23.6	60-100     15.8-26.3	80-110 21.1-29.1	90-120 23.7-31.7
Impact frequency	bpm	800-1400	700-1200	600-1100	500-900	400-800	400-800	350-700	350-650
Diameter  of hose	mm  inch	12.7     1/2	12.7     1/2	12.7     1/2	12.7     1/2	12.7     1/2	19.05    3/4	19.05    3/4	25.4       1
Diameter  of Tool	mm  inch	40      1.57	45      1.77	53       2.08	68      2.68	75      2.95	85      3.35	100      3.94	125     4.92
Suitable Carrien	ton	0.8-2.5	1.2-3.0	2.5-4.5	4-7	6-9	7-14	10-15	15-18

Contents	Model	MEG135	MEG135F	MEG140	MEG140A	MEG150	MEG155	MEG165	MEG175
Body  Weight	Kg      Ibs	845     1860	858      1888	927      2042	960            2114	1095               2412	1305             2874	1443             3178	1935             4262
Total weigh(Side/Top/Slience)	kg	1653/1847            /1893	1680/1880    /1930	1774/2059       /2011	1809/2094  /2046	2221/2383   /2460	2569/2737  /2960	2752/3157   /2917	3912/4472   /3904
Length(Side)	mm   inch	2367      93.19	2367      93.19	2414      95.04	2414      95.04	2519      99.17	2367      93.19	2816      110.9	3176     125.04
Width (side)	Mm  inch	500    19.68	500    19.68	500    19.68	500    19.68	590    23.23	500    19.68	590    23.23	670    26.38
Operating Pressure	Kg/cm² psl  bar	160-180 2272-2556 157-176	160-180 2272-2556 157-177	160-180 2272-2556 157-178	160-180 2272-2556 157-179	160-180 2272-2556 157-180	160-180 2272-2556 157-176	160-180 2272-2556 157-182	160-180 2272-2556 157-183
Hydraulic flow range	I/min Gal/min	130-150 34.3-39.6	145-180 38.3-47.5	120-180 31.7-47.6	120-180 31.7-47.6	150-190 39.6-50.2	130-150 34.3-39.6	200-260 52.8-68.69	210-290 55.5-76.6
Impact frequency	bpm	400-800	360-460	350-500	350-500	350-700	400-800	250-400	200-350
Diameter  of hose	mm  inch	25.4       1	25.4       1	25.4       1	25.4       1	25.4       1	31.75      1¹/4	31.75      1¹/4	31.75      1¹/4
Diameter  of Tool	mm  inch	135      5.31	135      5.31	140     5.51	140     5.51	150      5.91	155     5.31	165      6.5	175       6.5
Suitable Carrien	ton	18-25	18-25	18-26	18-26	27-35	18-25	30-45	30-45

Side Type
Simple and reliable design can suit for excavator very well. High efficiency of hydraulic system with strong impact ower. Easy maintenance with half-open frame tructure.
Top Pencil Type
Adopted advanced technology of oill pressure control and fluid micro-adjustment makes stronger impact and its persistence. Can enlarge the scope of demolition with ong overall length.
Box silenced Type
With same advantages as top type breakers, but box silenced type breaker is with low noises. 1. Mining: Mountains, mining, crushing, secondary crushing.
2. Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied.
3. Railway: tunnel, bridge, mountain down.
4. Highway: highway repair, cement pavement broken, foundation excavation.
5. Municipal gardens: concrete crushing, water,electricity, gas engineering construction, the transformation of the old city.
6. Building: the old building demolition, reinforced concrete broken.
7. The ship hull in mussels.
8. Other: ice breaking, breaking the Vibrating Sand.
Shandong Jingyuan New Materials Technology Co.,Ltd,established in 2000,is mainly engaged in research and development of rubber floor,rubber track and PU binder.After the development of 17 years,the company enjoys good reputation in industry and the products are popular in domestic and foreign markets.In 2011,the company bought a large number of advanced equipments and absorbed a large number of outstanding staff to build a new factory supplying hydraulic hammers and related parts.

We are a top ranked led lighting products exporter, and has customers in over 60 countries throught the Europe, Asia, South America, Latin America and Middle East. We are committed to creating outstanding products backed by friendly, responsible excellent service to delight our esteemed loyal customers around the world.With best service.With your trust and support,the company will become stronger and can meet your demands better.




Q1: Are you a factory or trading company? Where is your company located?
A1: We are a factory 100%, not trading company. Our company is located in Weifang, Shandong Province,China

Q2: What is the warranty for our lamps?
A2: We have 3 years warranty for our lamps

Q3: How do you ensure the quality
A3: We are working with four QC processes to guaranty the quality: 1 .For raw materials; 2. During the half of production; 3.Final test before delivery; 4. Selects inspection of the packaged products

Q4: How to do if any quality problems from our reason in the warranty time?
A4: First, take pictures or videos as proof and send to us, and then we will replace new ones for free.

Q5: OEM OR ODM accepted?
A5: Yes, we can do OEM & ODM, logo on the breaker or package both is available.

Q6: Can we get support if we have our own market position?
A6: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.

Q7: What's your MOQ? Can I order small quantity for testing at first order?
A7: For new client, we accept small order for building mutual trust and long-term business relationship.

Q8: What is your shipping method suggested?
A8: Small package via courier such as DHL,Fedex,UPS,EMS; Bigger package by Air shipment; Big package via Vessel.

Q9: How many days will samples be finished? And how about the mass production?
A9: Generally 7-15 days for samples making. The leading time of mass production will depend on the quantity.

Q10. What's the payment method you accept?
A10:  T/T, Western union.
Q11: Can i visit your company?
Welcome to visit our factory and it is our great pleasure
