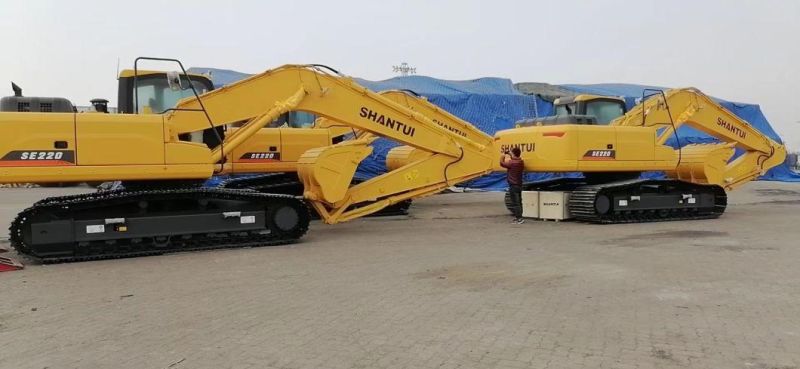

• Model NO.：SE220
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Model：Cummins Engine
• Operation Weight：2, 1900kg
• Rated Output Power：112,1950 Kw,Rpm
• Delivery Term：10 Days
• Optional：Pipeline for Hammer Breaker
• Optional 2：Hammer Breaker
• Transport Package：Nude Package
• Specification：CE
• Trademark：Shantui
• Origin：Shandong, China
• HS Code：84295212
• Production Capacity：30 Sets,Month

ENGINEModelCum-mins B5.9-CTypeWater cooling, in-line ,6 cylinders, turbochargingQuantity of cylinders6Bore x stroke102 x 120 mmDisplacement5.9 LPower output112 kW/1950 rpmMaximum torque614N.mHYDRAULIC SYSTEMPumpImportedTypeVariable piston pumpMaximum discharge flow2x218 L/minControl circuit3.9 MPaTravel circuit31.9 MPaSwing circuit25.5 MPaTRAVEL SYSTEMTravel motorVariable axial piston motorTravel brakesLubricated double-discParking brakePressure releaseTravel shoes2 x 47Travel speed3.3/5.1 km/hDrawbar pulling force195 kNGradeability70%Minimum ground clearance470 mmOIL CAPACITYFuel tank330 LCooling system28 LEngine oil20 LHydraulic oil tank400 LSystem capacity-SWING SYSTEMBrakePressure Release Mechanical BrakingSwing speed11.5 rpmTail swing radius2925 mmArm digging force92.5 KNBucket digging force127 KNBUCKETBucket capacityBackhoe bucket 1.05 m3 (SAE)Number of bucket teeth5Bucket width1267 mmArm length2.925 mMaximum digging reach/Maximum digging reach at ground level9.86 m/9.675 mMaximum digging depth/height6.49 m/10.095 mMaximum dumping height7.19 mMinimum swing radius2.97 m
