• Model NO.：Clg6213e
• Travel Speed：30cm,s
• Certification：ISO 9001:2000
• Condition：New
• Operating Mass：13000 Kg
• Mass on Front Drum：6500 Kg
• Mass on Rear Axle：6500 Kg
• Model：Cummins Qsb4.5
• Rated Power：119 Kw (160 HP) @ 2200 Rpm
• Vibration Frequency Low：45,50 Hz
• Drum Diameter：1300 mm
• Drum Width：2130 mm
• Min. Ground Clearance：320 mm
• Wheelbase：3585 mm
• Transport Package：Nude Packing
• Specification：5700 *2420*3020(3220)mm
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：1000,PCS

Basic Info.

Model NO. Clg6213e Travel Speed 30cm/s Certification ISO 9001:2000 Condition New Operating Mass 13000 Kg Mass on Front Drum 6500 Kg Mass on Rear Axle 6500 Kg Model Cummins Qsb4.5 Rated Power 119 Kw (160 HP) @ 2200 Rpm Vibration Frequency Low 45/50 Hz Drum Diameter 1300 mm Drum Width 2130 mm Min. Ground Clearance 320 mm Wheelbase 3585 mm Transport Package Nude Packing Specification 5700 *2420*3020(3220)mm Origin Jiangsu, China HS Code 84294019 Production Capacity 1000/PCS

Product Description

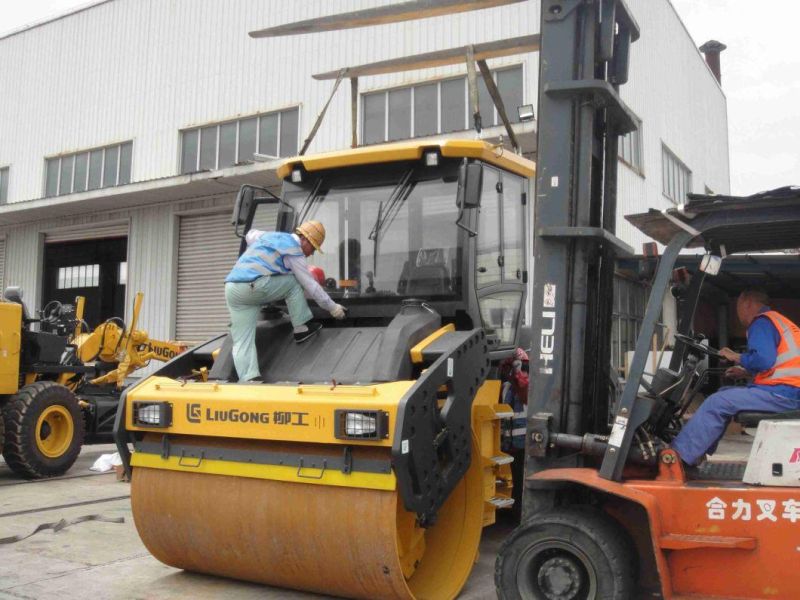

Liugong 13 Ton Clg6213e Double Drum Soil Road Roller in Bangladesh
Product Description

·Top quality compaction is achieved by the kneading and rolling effect of the wheels as vertical pressure combined with horizontal forces produce an excellent, uniform surface finish.
·On uneven surfaces, our patented Tire Suspension System, equipped with a tiltable front shaft, enables the 4 front wheels to swing up and down by +/- 8° achieving maximum ground contact for each wheel. This delivers optimum compact and improves safety by helping prevent the roller from tilting over.
·Safety is further enhanced with a three-stage breaking system utilizing hydraulics, oil cut-off and wheel side oil breaking. This three stage system protects the operator, site workers and members of the public from accidents.

Technical Parameters

Operating Mass	13000 kg
Mass On Front Drum	6500 kg
Mass On Rear Axle	6500 kg
Front Drum Static Linear Load	305 N/cm
Rear Drum Static Linear Load	305 N/cm
Model	Cummins QSB4.5
Emission Regulation	Stage III
Rated Power	119 kW (160 hp) @ 2200 rpm
Vibration Frequency Low	45/50 Hz
Nominal Amplitude Low	0.75/0.4 mm
Centrifugal Force Low	150/90 kN
Vibration Frequency High	50/67 Hz
Nominal Amplitude High	0.8/0.3 mm
Centrifugal Force High	169/108 kN
Drum Diameter	1300 mm
Drum Width	2130 mm
1st Maximum Speed, fwd	0-6 km/h
2nd Maximum Speed, fwd	0-8 km/h
3rd Maximum Speed, fwd	0-12 km/h
Theoretical Gradeability	40%
Min. Ground Clearance	320 mm
Wheelbase	3585 mm
Min. Outside Turning Radius	6770 mm
Overall Length	5050 mm
Overall Width	2300 mm
Overall Height	3170 mm
