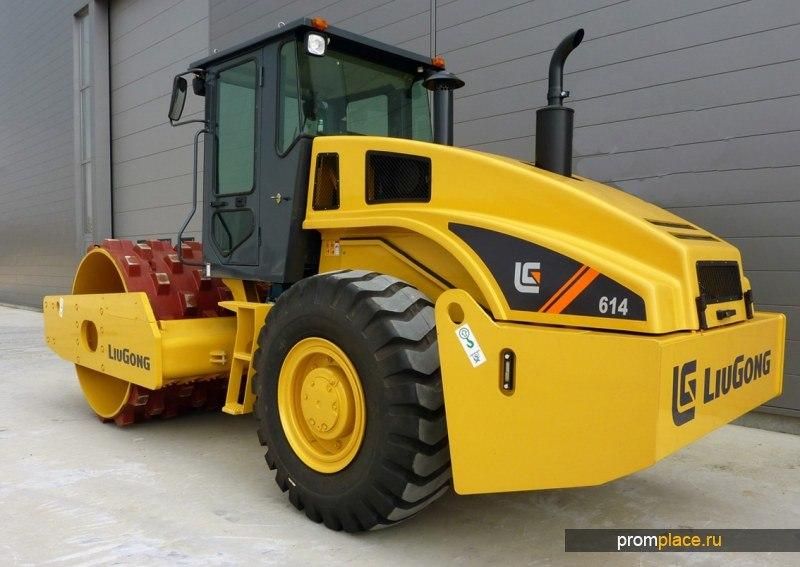

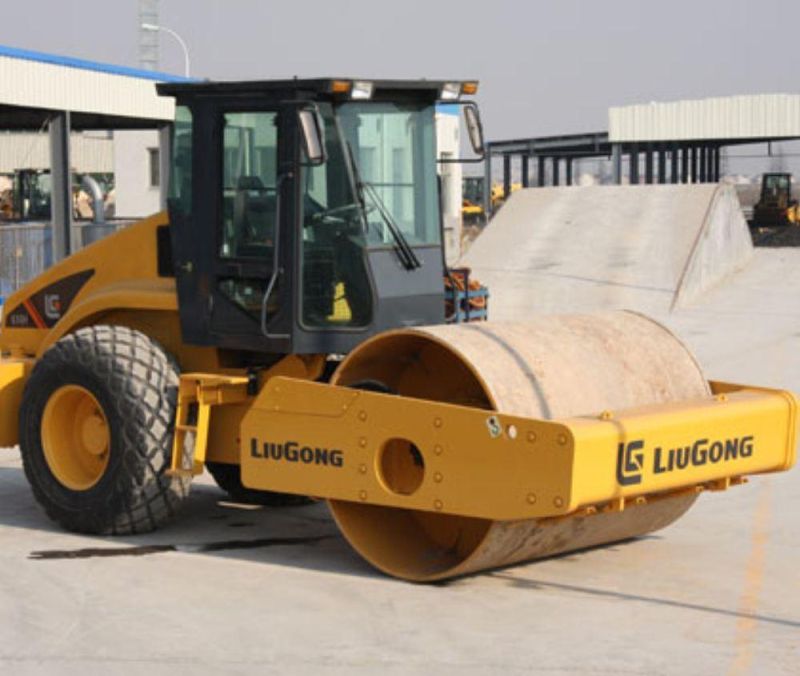

• Model NO.：Clg616
• Travel Speed：30cm,s
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Mass(Kg)：16000
• Mass on Vibrating Drum(Kg)：8300
• Mass on Drive Axle(Kg)：7700
• Front Drum Static Linear Load (N/Cm)：382
• Vibration Frequency(Hz)：30
• Min. Ground Clearance(mm)：430
• Wheelbase(mm)：3100
• Tyre Type：20.5-25-16pr 23.1-26-12pr
• Brand：Shangchai
• Model：Sc5d143G2b1
• Transport Package：Nude Packing
• Specification：6220X2340X3200mm
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：1000,PCS

MassOperating Mass(kg)16000Mass On Vibrating Drum(kg)8300Mass On Drive Axle(kg)7700Front Drum Static Linear Load (N/cm)382CompactionVibration Frequency(Hz)30Nominal Amplitude(mm)1.9/1.0Centrifugal Force(kN)300/160Drum Diameter(mm)1500Drum Width(mm)2130Drum Thickness(mm)30Drive1st Maximum Speed,fwd(km/h)2.62nd Maximum Speed,fwd(km/h)5.23rd Maximum Speed,fwd(km/h)114th Maximum Speed,fwd(km/h) Theoretical Gradeability(%)30Min. Ground Clearance(mm)430Wheelbase(mm)3100Steering Angle(°)±35Swing angle(°)±10Min. Outside Turning Radius(mm)6500Tyre Type20.5-25-16PR 23.1-26-12PRTyre Pressure(kPa)300-330 200-220Overall Length(mm)6145Overall Width(mm)2300Overall Height(mm)3040EngineBrandShangchaiModelSC5D143G2B1Emission RegulationTier IIRated Power(kW)105Rated Rotation Speed(r/min)2100Theoretical Fuel Consumption(g/kW.h)220Torque(N.m)580Number of Cylinders4Displacement(L)5.3AspirationTurbochargedCooling TypeWaterVolumeBattery(V/Ah)24/200Alternator(V/A)28/45Rear Axle(L)20Vibrating Housing(L)2.3×2Fuel Tank(L)285Hydraulic Oil Tank(L)120Engine Oil(L)19Transimission/Torque Converter(L)14.5Coolant(L)32Tyre Wetting(L)415×2Weight on Front Axle(T)Weight on Rear AxlePadfootPadfoot Thickness(mm)18Padfoot Height(mm)80Unit Area of Per Padfoot(cm2)110Grounding Area(cm2)612Number of Padfoot132Gross Weight of Padfoot(kg)1100File and CertificateIntroduce Document of Products√Parts Manual√Maintenance Manual√Service ManualCE CertificateGOST Certificate√CUTR Certificate√SONCAP CertificateIran ISO ReportNoises ReportROPS CertificateType-test Certificate√Type-test Certificate Report
