Various Types of Pump Seals Slurry Pump /Water Pump for Urban Construction
JIANGSU XUAN XUAN HEAVY MACHINERY CO., LTD.- Type：75tzs-Pd
- Capacity：25-55 Ls
- Head：9-52m
- Speed：R,Min
- Efficiency：30%-71%
- Inlet Size：100mm
Base Info
- Outlet Size：75mm
- Max.Diameter of Flowed Particle Flowed：62mm
- Transport Package：Wooden Case
- Specification：Overall dimension: 4180*5200
- Origin：Jiangsu Changzhou
- HS Code：8430313000
- Production Capacity：5000 Sets Per Year
Description
Basic Info.
Outlet Size 75mm Max.Diameter of Flowed Particle Flowed 62mm Transport Package Wooden Case Specification Overall dimension: 4180*5200 Origin Jiangsu Changzhou HS Code 8430313000 Production Capacity 5000 Sets Per YearProduct Description

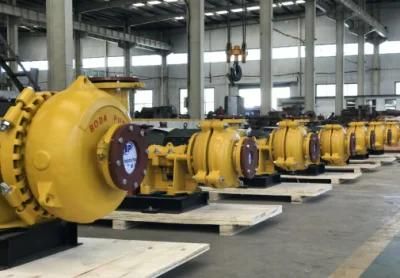

Type TZS series pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed to handle high abrasive, high density slurries in tunnel shield and pipe-jacking.
Product Feature
-High abrasion metal wet end parts, long service life.
-Wide options for impeller(special designed large channel impeller to meet very big particle.
-Various types of pump seals to suit different working condition,no leakage.
-Discharge branch can be positioned at intervals of 45 degrees
-Can be installed in multistage series
Performance Table
| Type | Capacity (l/s) | Head (m) | Speed (r/min) | Efficiency (%) | NPSHr (m) | Inlet Size (mm) | Outlet Size (mm) | Max.Diameter of flowed particle (mm) |
| 75TZS-PD | 24-55 | 9-52 | 1000-2200 | 30-71 | 4-6 | 100 | 75 | 62 |
| 100TZS-PE | 40-100 | 12-56 | 800-1600 | 30-65 | 5-8 | 150 | 100 | 44 |
| 150TZS-PR | 100-230 | 10-61 | 500-1140 | 30-72 | 2-9 | 200 | 150 | 63 |
| 200TZS-PST | 65-380 | 11-82 | 400-1000 | 45-71 | 2-10 | 250 | 200 | 80 |
| 250TZS-PST | 75-500 | 10-84 | 300-950 | 60-80 | 3-8 | 300 | 250 | 86 |
| 300TZS-PST | 170-770 | 13-81 | 300-700 | 60-77 | 3-10 | 350 | 300 | 90 |
| 350TZS-PTU | 380-850 | 11-63 | 250-550 | 60-82 | 4-10 | 400 | 350 | 135 |
| 450TZS-PTU | 700-1500 | 13-57 | 200-400 | 75-85 | 5-10 | 500 | 450 | 130 |
