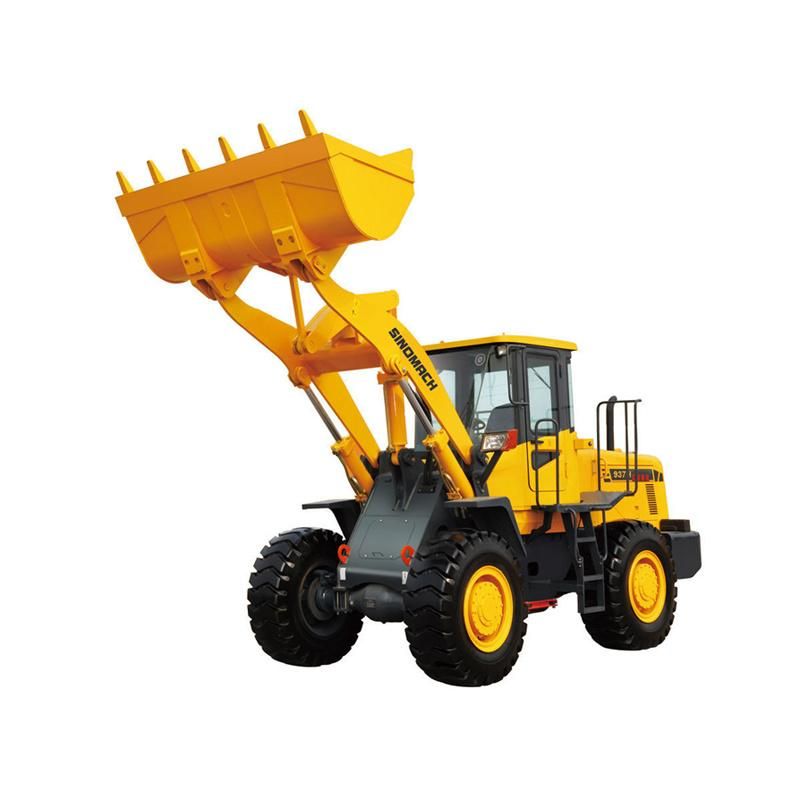

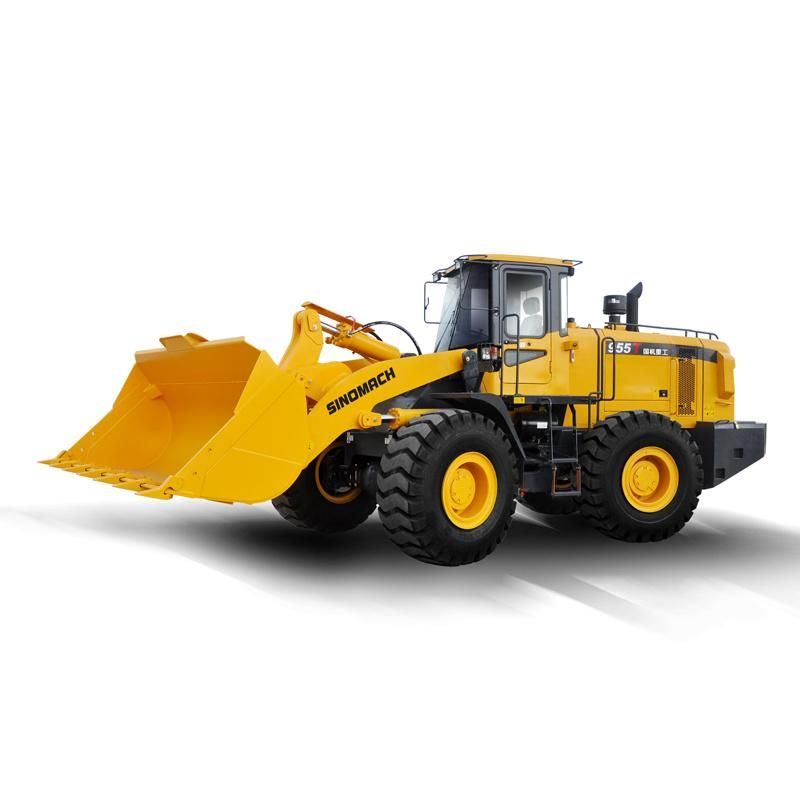

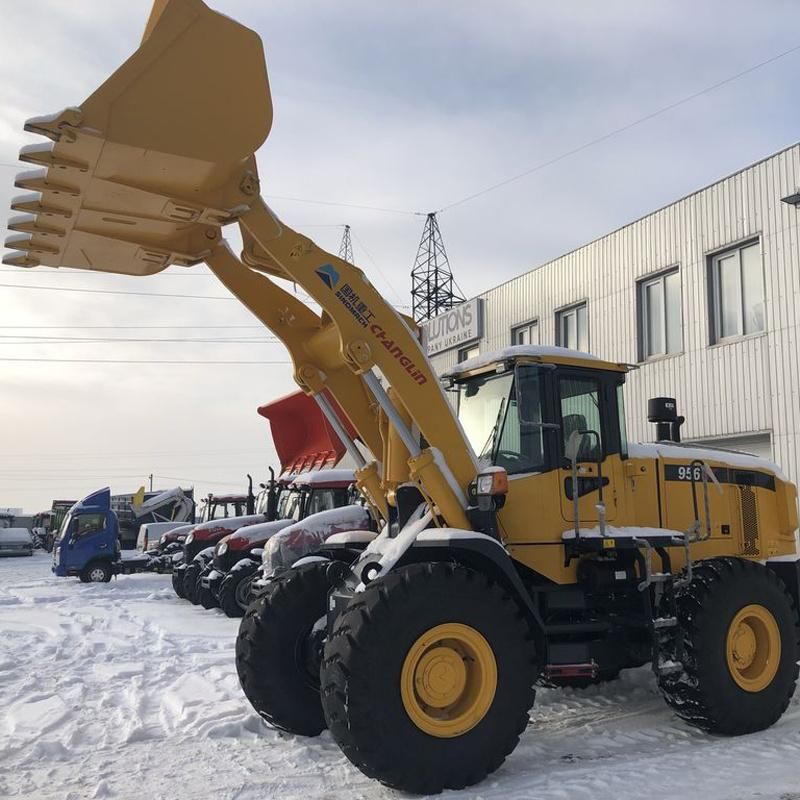

(955T) Sinomach 5ton Front Wheel Loader

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：955T
  • Type：Medium-sized Loader
  • Product Name：(955t) Sinomach 5ton Front Wheel Loader
  • Bucket Capacity：4.5cbm
  • Engine Model No：Wd10g220e23
  • Rated Power：162kw
  • Rated Speed：2200r,Min
  • Max. Grade Ability：30
  • Steering Angle：38
  • Dumping Clearance：3050mm
  • Dumping Reach：1107mm
  • Displacement of Redirector：1000ml,R
  • Operation Pressure：146MPa
  • Overall Dimension：7920*2800*3500mm
  • Transport Package：Nude Package
  • Specification：5Tons wheel loader
  • Trademark：sinomach
  • Origin：Jiangsu, China
  • HS Code：8429510000
  • Production Capacity：1000pieces,Year

Description

1Bucket Capacity             2.8~4.5m32Rated Load                     5000KG3Max.digging force             160KN4Max.traveling force         150KN5Operation weight             16500KG6Overall Dimension             7920x2800x3500MM7Engine Model NoWD10G220E238Rated Power162KW9Rated Speed2200r/min10Min. Fuel Consumption≤210g/kw.h11Max.Torque900N.m12Shifts(forward/reverse)F2/R113Forward Traveling Speed   0~12.1km/h   0~37.4km/h  14Reverse Traveling Speed 0~16.5km/h 15Max. grade ability30°16Steering angle±38°17Min. steering radius5970mm18Dumping clearance3050mm19Dumping reach1107mm20Displacement of redirector1000ml/r21Operation pressure146Mpa22Lifting time6.2s23Lowering time3.8s24Dumping time1.8s25Standard tyre23.5-25-16PR26Tyre pressure0.274-0.294Mpa(955T) Sinomach 5ton Front Wheel Loader
