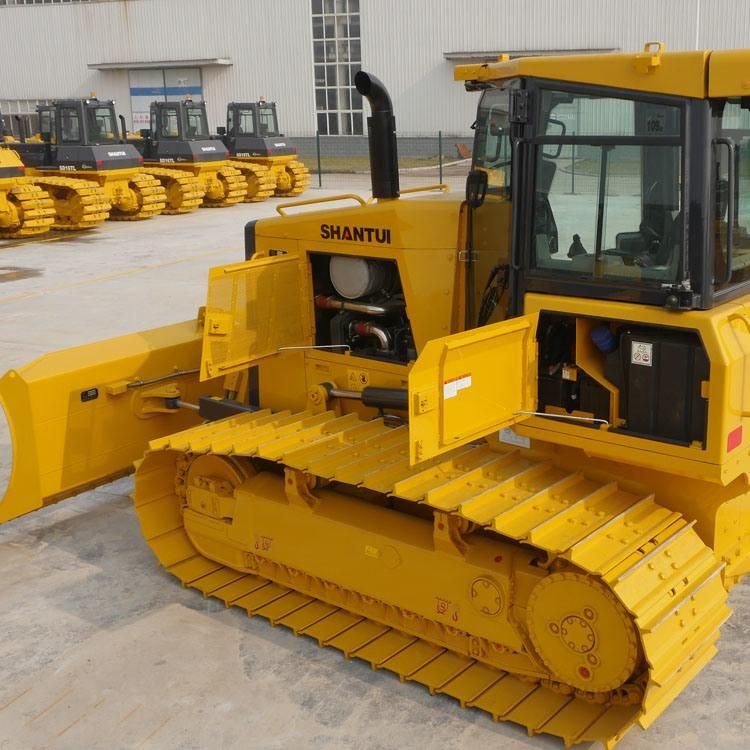

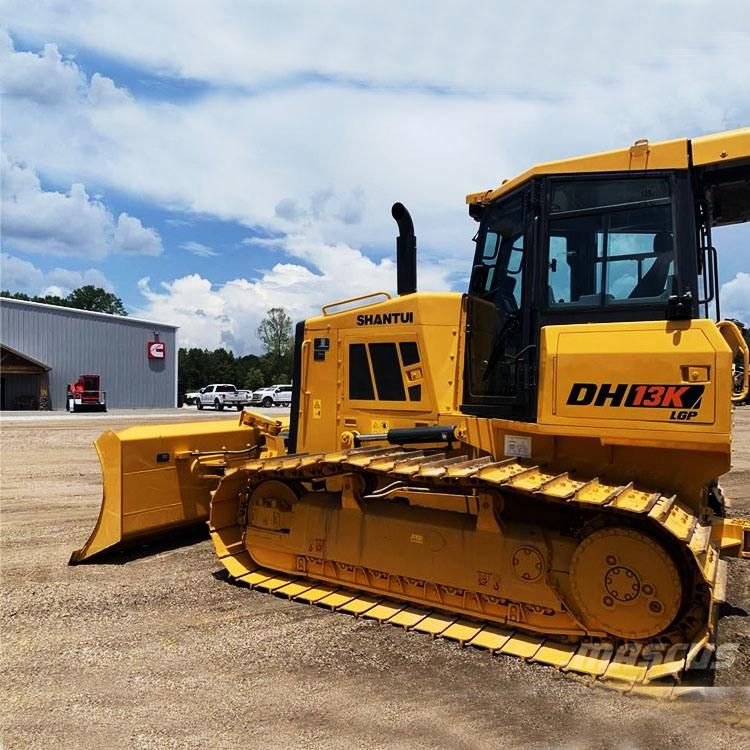

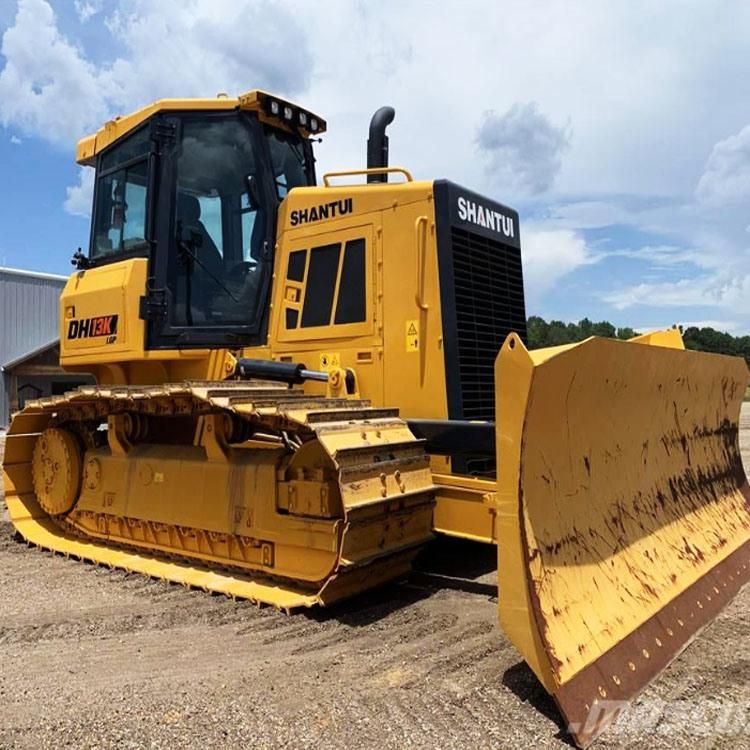

• Model NO.：DH13K
• Forward/Reverse (Km/H)：0-10
• Gradeability (Deg)：30
• Blade Width (mm)：3380
• Blade Height (mm)：1120
• Blade Capacity (M3)：3.39
• Transport Package：Nude Packing
• Specification：5010*3380*3043mm
• Trademark：Shantui
• Origin：Shandong, China
• HS Code：8429119000
• Production Capacity：10000,Year

PRODUCTDH13K XLDH13K LGP  PERFORMANCE PARAMETERSOperatiing   Weight (kg)13700(Track   frame)/14900(Ripper)14300(Track   frame)/15300(Winch)Rated horsepower (kw/hp)118/158@2200118/158@2200Minimum turning radius (mm)34683497/3543Ground pressure (kpa)46.335.6ENGINEModelFPT   N67FPT   N67EmissionTier   4f/Eruo StageTier   4f/Eruo StageTypeElectric   control,in-line,4-cycles,turbocharged,direct injection,air-to-air aftercooledElectric   control,in-line,4-cycles,turbocharged,direct injection,air-to-air aftercooledNo.of cylinders×Bore×stroke (mm×mm)6×104mm×132mm6×104mm×132mmPiston displacement (L)6.7286.728Horsepower/rpm (kw/rpm)118/2200118/2200Maximum torque (N.m/r/min)750N.m/1500r/min750N.m/1500r/minDIMENSIONSLength   (mm)5010(Ripper   not included)5010(Ripper   not included)Width (mm)33803680Height (mm)30433043TRAVELING PERFORMANCEForward/Reverse   (km/h)0~100~10Gradeability (deg)3030Clearance (mm)360360TRANSMISSIONTraveling   pump(Linde)Variable   displacement piston pump,maximum flow 105ml/rVariable   displacement piston pump,maximum flow 105ml/rTraveling motor(Linde)Variable   displacement piston motor,maximum flow 165ml/rVariable   displacement piston motor,maximum flow 165ml/rPump for oil refillGear   pump,flow 40ml/rGear   pump,flow 40ml/rCouplingElastic   couplingElastic   couplingFinal driver1   stage spur gear and 1stage planetary reduction1   stage spur gear and 1stage planetary reductionBrakeWet,closed   brakeWet,closed   brakeUNDERCARRIAGESuspensionOscillating   equalizer bar and pivot shaftOscillating   equalizer bar and pivot shaftTrack gauge (mm)19302150Shoe width (mm)560760/700Track length on ground (mm)26402640Number of shoes (each side)4040Pitch (mm)190190Carrier rollers (each side)22Track rollers (each side)77WORKING HYDRAULIC SYSTEMWorking   hydraulic pumpGear   pump,flow 62.7ml/rGear   pump,flow 62.7ml/rPPC pumpGear   pump,flow 10ml/rGear   pump,flow 10ml/rValveMulti-way   valveMulti-way   valveBore of blade lift cylinder (mm)φ110φ110Bore of blade tilt cylinder (mm)φ120φ120TANK CAPACITYFuel   tank capacity (L)251251Working hydraulic tank capacity (L)6565Transmission hydraulic tank capacity (L)--Working equipmnetBlade   width (mm)33803680Blade height (mm)11201120Blade capacity (m³)3.393.69

The pilot control for the working device hydraulic system features simple and sensitive operations.



The sealed shock-absorbing cab features large space, high safety and comfort, and low noise.



It's mainly applied in the backfill of earthwork and the handling of other bulk materials and is suitable for the operations of roads, railways, water conversancy projects, land development, and factories and mines.



Thanks to small turning radius, it can achieve outstanding operation performances in the narrow sites.
The modular structure features low malfunction rate and easy maintenance.
