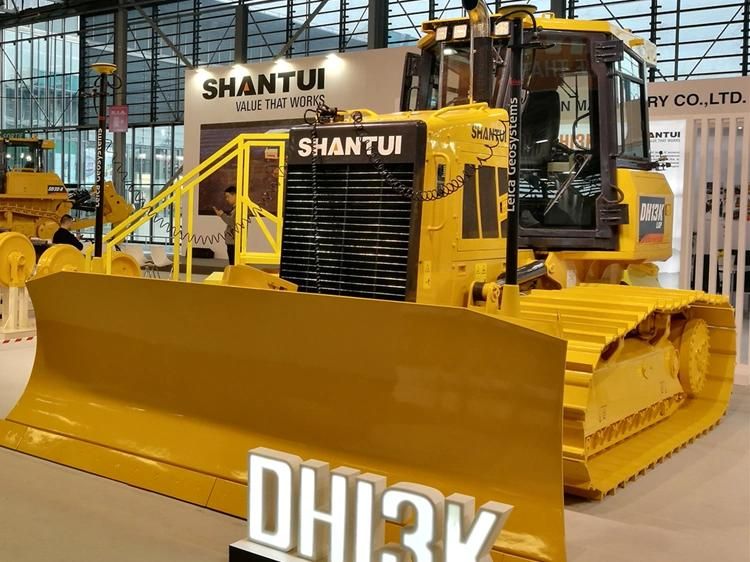

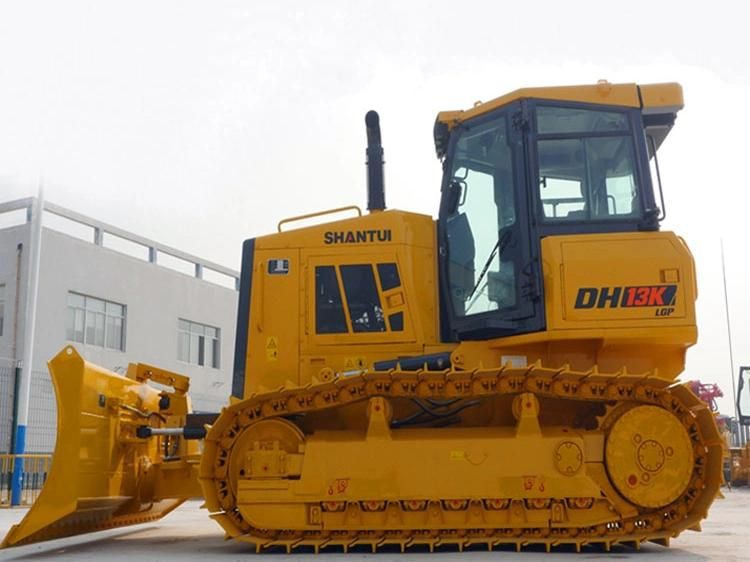

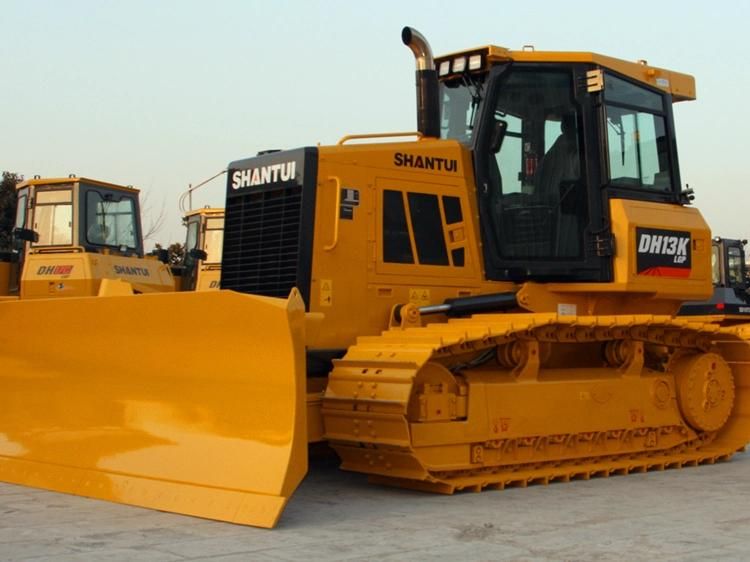

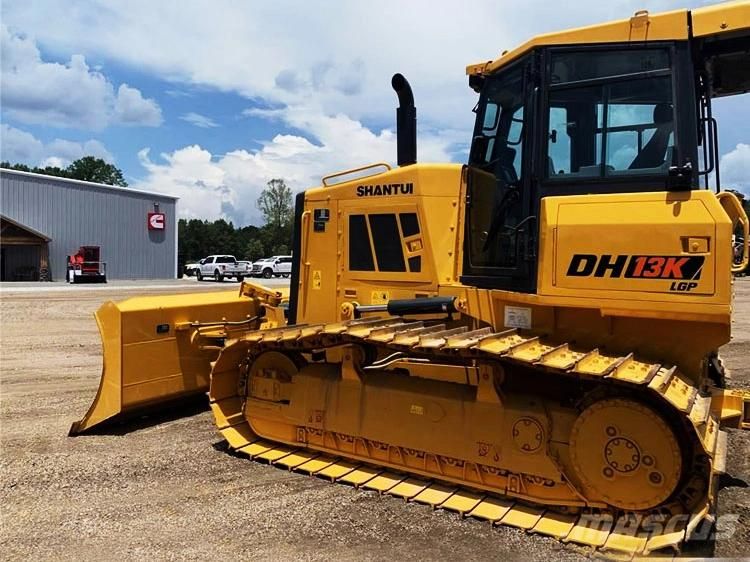

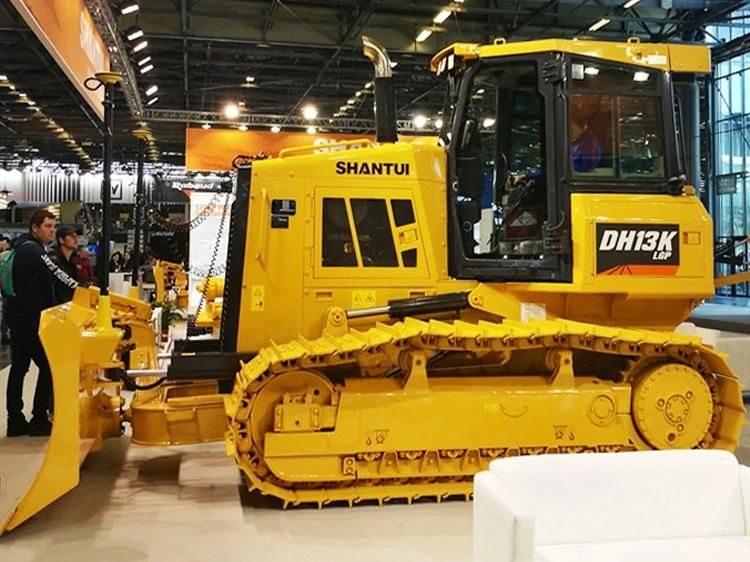

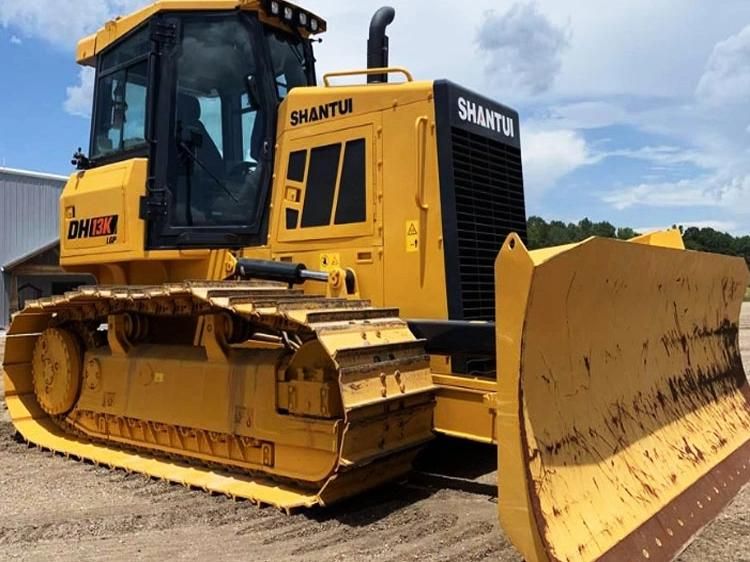

PRODUCT | DH13K XL | DH13K LGP |
| |
PERFORMANCE PARAMETERS | Operatiing Weight (kg) | 13700(Track frame)/14900(Ripper) | 14300(Track frame)/15300(Winch) |
Rated horsepower (kw/hp) | 118/158@2200 | 118/158@2200 |
Minimum turning radius (mm) | 3468 | 3497/3543 |
Ground pressure (kpa) | 46.3 | 35.6 |
ENGINE | Model | FPT N67 | FPT N67 |
Emission | Tier 4f/Eruo Stage 4 | Tier 4f/Eruo Stage 4 |
Type | Electric control,in-line,4-cycles,turbocharged,direct injection,air-to-air aftercooled | Electric control,in-line,4-cycles,turbocharged,direct injection,air-to-air aftercooled |
No.of cylinders×Bore×stroke (mm×mm) | 6×104mm×132mm | 6×104mm×132mm |
Piston displacement (L) | 6.728 | 6.728 |
Horsepower/rpm (kw/rpm) | 118/2200 | 118/2200 |
Maximum torque (N.m/r/min) | 750N.m/1500r/min | 750N.m/1500r/min |
DIMENSIONS | Length (mm) | 5010(Ripper not included) | 5010(Ripper not included) |
Width (mm) | 3380 | 3680 |
Height (mm) | 3043 | 3043 |
TRAVELING PERFORMANCE | Forward/Reverse (km/h) | 0~10 | 0~10 |
Gradeability (deg) | 30 | 30 |
Clearance (mm) | 360 | 360 |
TRANSMISSION | Traveling pump(Linde) | Variable displacement piston pump,maximum flow 105ml/r | Variable displacement piston pump,maximum flow 105ml/r |
Traveling motor(Linde) | Variable displacement piston motor,maximum flow 165ml/r | Variable displacement piston motor,maximum flow 165ml/r |
Pump for oil refill | Gear pump,flow 40ml/r | Gear pump,flow 40ml/r |
Coupling | Elastic coupling | Elastic coupling |
Final driver | 1 stage spur gear and 1stage planetary reduction | 1 stage spur gear and 1stage planetary reduction |
Brake | Wet,closed brake | Wet,closed brake |
UNDERCARRIAGE | Suspension | Oscillating equalizer bar and pivot shaft | Oscillating equalizer bar and pivot shaft |
Track gauge (mm) | 1930 | 2150 |
Shoe width (mm) | 560 | 760/700 |
Track length on ground (mm) | 2640 | 2640 |
Number of shoes (each side) | 40 | 40 |
Pitch (mm) | 190 | 190 |
Carrier rollers (each side) | 2 | 2 |
Track rollers (each side) | 7 | 7 |
WORKING HYDRAULIC SYSTEM | Working hydraulic pump | Gear pump,flow 62.7ml/r | Gear pump,flow 62.7ml/r |
PPC pump | Gear pump,flow 10ml/r | Gear pump,flow 10ml/r |
Valve | Multi-way valve | Multi-way valve |
Bore of blade lift cylinder (mm) | φ110 | φ110 |
Bore of blade tilt cylinder (mm) | φ120 | φ120 |
TANK CAPACITY | Fuel tank capacity (L) | 251 | 251 |
Working hydraulic tank capacity (L) | 65 | 65 |
Transmission hydraulic tank capacity (L) | - | - |
Working equipmnet | Blade width (mm) | 3380 | 3680 |
Blade height (mm) | 1120 | 1120 |
Blade capacity (m³) | 3.39 | 3.69 |
