• Model NO.：HW400
• Power：85kw
• Vehicle Weight (Kg)：6200
• Engine Rated Speed (R/Min)：2600
• Track Shoe Width (mm)：350
• Track Single (Section)：42
• Travel Motor Reduction Ratio：1:54.4

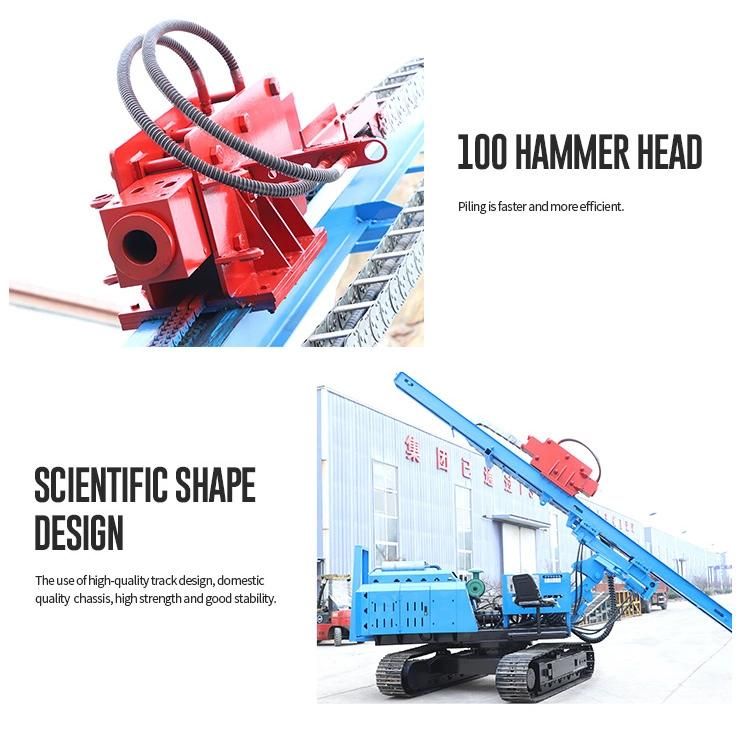

• Hydraulic Hammer Model (mm)：75,85,100 Optional
• Hydraulic Hammer Flow (L/Min)：50-110
• Impact Frequency (BMP)：350-800
• Drill Rod Diameter (mm)：75,85,100
• Walking Motor Torque (N.M)：<11500
• Pile Height (mm)：According to The Slide

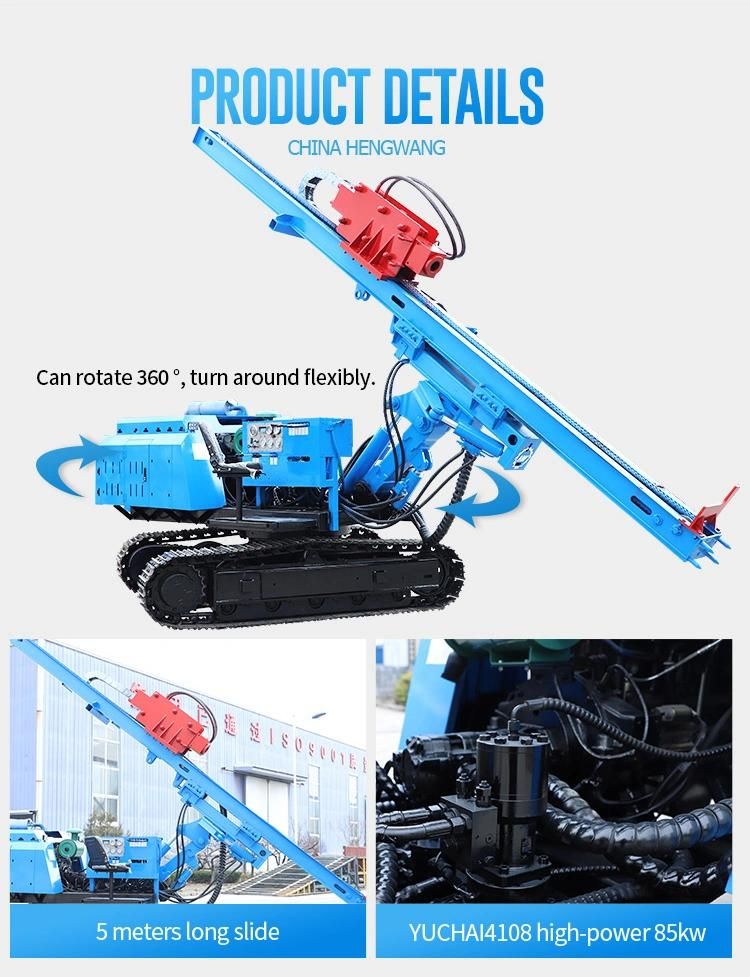

• Frame Rotation Angle (°)：360

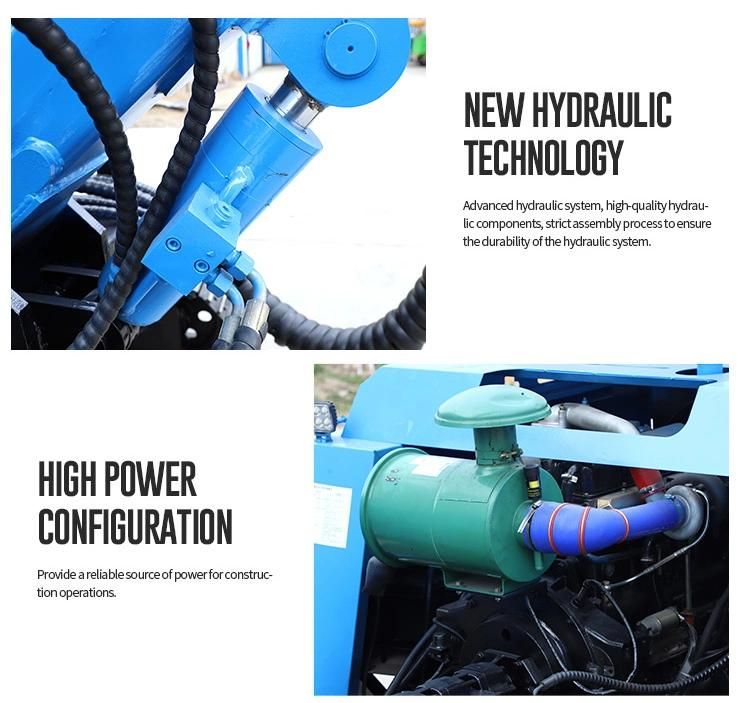

• Hydraulic System Pressure (MPa)：22
• Transport Package：Stande Package
• Specification：85KW
• Trademark：Hengwang
• Origin：Shandong
• HS Code：8429510000
• Production Capacity：5000sets,Year

Product number

HWL400R

Hydraulic hammer model (mm)

75/85/100 optional

Hydraulic hammer flow (L/min)

50-110

Impact frequency (bmp)

350-800

Drill rod diameter (mm)

75/85/100

Walking motor torque (N.m)

<11500

Pile height (mm)

According to the slide

Sliding guide frame inclination angle (°)

(Left) 5(Right) 5

Frame rotation angle (°)

360

Hydraulic system pressure (mpa)

22

Gear pump displacement (ml/r)

40+40+25

Traveling speed (km/h)

3

Vehicle weight (kg)

6200

Engine power (kw)

85

Engine rated speed (r/min)

2600

Track shoe width (mm)

350

Track single (section)

42

Total displacement of walking motor (ml/r)

53

Rated pressure of walking motor (mpa)

30

Travel motor reduction ratio

1:54.4

Dimensions (mm)
