Electric Portable Concrete Mixer Machinery Jzc500
Linyi Raytone Machinery Imp&Exp Co., Ltd.- Type:Concrete Mixer
- Shotcrete Type:Wet
- Machining Process:Hydraulic
- Structure:Rotor Type
- Productivity:18-20m3,H
- Feeding Height:1100
Base Info
- Model NO.:JZC500
- Vibrating Amplitude:1.0mm
- Certification:ISO9001: 2000, CE
- Condition:New
- Color:as Required
- Warranty:One Year
- Discharging Capacity:800L
- Charging Capacity:500L
- Mixing Cycle:3min
- Total Weight:2400kg
- Voltage:Adapt to Your Local Voltage
- Transport Package:Suitable for Sea Transport
- Specification:3500x2200x3200mm
- Trademark:raytone machinery
- Origin:Shandong, China
- HS Code:84743100
- Production Capacity:50 Set,Sets Per Month
Description
Basic Info.
Model NO. JZC500 Vibrating Amplitude 1.0mm Certification ISO9001: 2000, CE Condition New Color as Required Warranty One Year Discharging Capacity 800L Charging Capacity 500L Mixing Cycle 3min Total Weight 2400kg Voltage Adapt to Your Local Voltage Transport Package Suitable for Sea Transport Specification 3500x2200x3200mm Trademark raytone machinery Origin Shandong, China HS Code 84743100 Production Capacity 50 Set/Sets Per MonthProduct Description
Brief Introduction

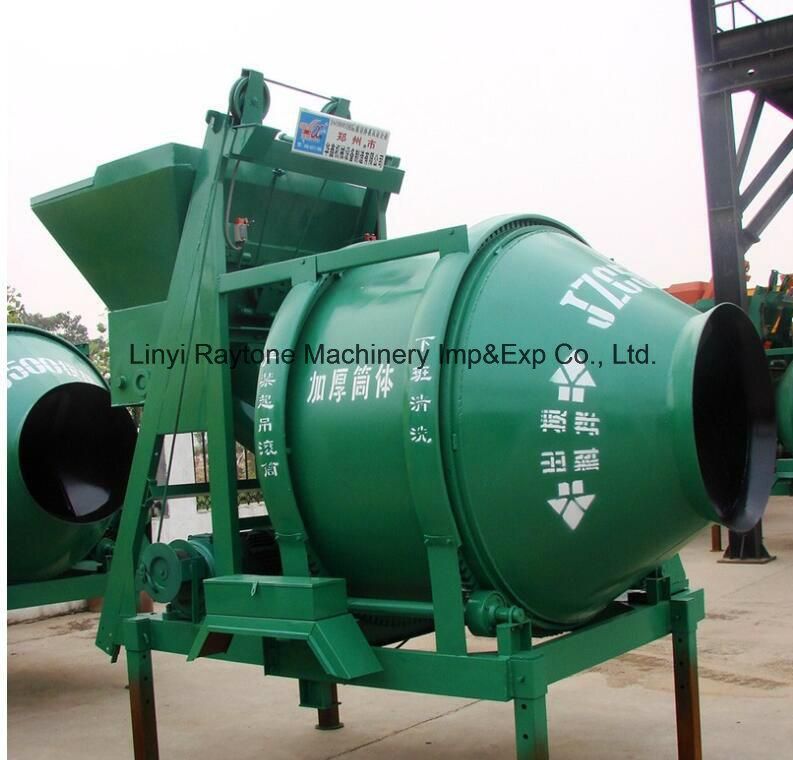

JZC500 concrete mixer is self loading mobile concrete mixer, which could be used for mixing plastic and damp-dry rigid concrete. The mixing drum mixes the material by rotating positively ,and discharges by rotating reversely. It is adaptable for architectural building site,civil engineer ,and bridge project, small and medium concrete plant.
Applications

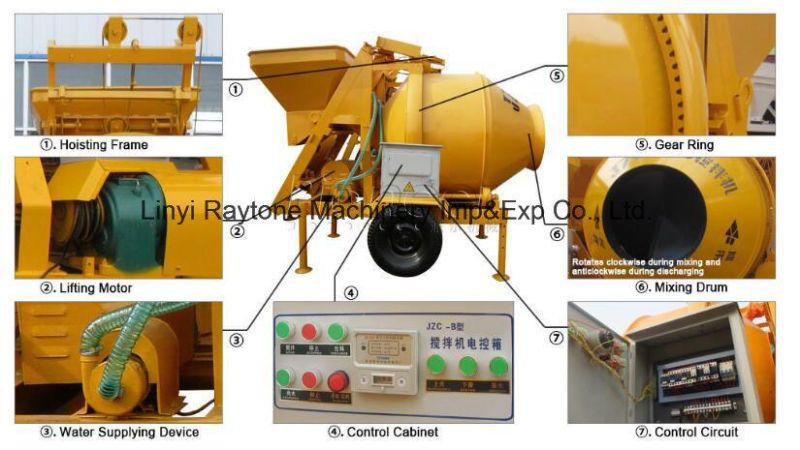

JZC500 mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete.
Main parameters
Model | JZC500 |
Overall size | 3500x2200x3200mm |
Discharging capacity | 800L |
Charging capacity | 500L |
Mixing cycle | 3min |
Stirring vane speed | 13r/min |
Productivity | 18~20m3/h |
Total weight | 2400kg |
Mixing motor | 7.5kw |
Voltage | Adapt to your local voltage |
Max trailing speed | 20km/h |
Accuracy of water supply | Error≤2% |
Max. aggregate size | 60~80mm |
Model | JZC250 | JZC350 | JZC750 |
Discharge volume | 250L | 350L | 750L |
Charging volume | 320L | 560L | 1200L |
Capacity | 6~8 m3/h | 10~14 m3/h | 30-35m3/h |
Rotating speed | 17 r/min | 14 r/min | 12.26r/min |
Mixing motor | 4kw | 5.5kw | 11kw |
Lifting motor | 4KW | 4.5KW | 7.5kw |
Pump motor | 0.55kw | 0.55kw | 0.55kw |
Weight | 1500kg | 1950kg | 4000kg |
Dimensions (L x W x H) | 2260x1990x2750 mm | 2766x2140x3000 mm | 3680x3065x3565 mm |
