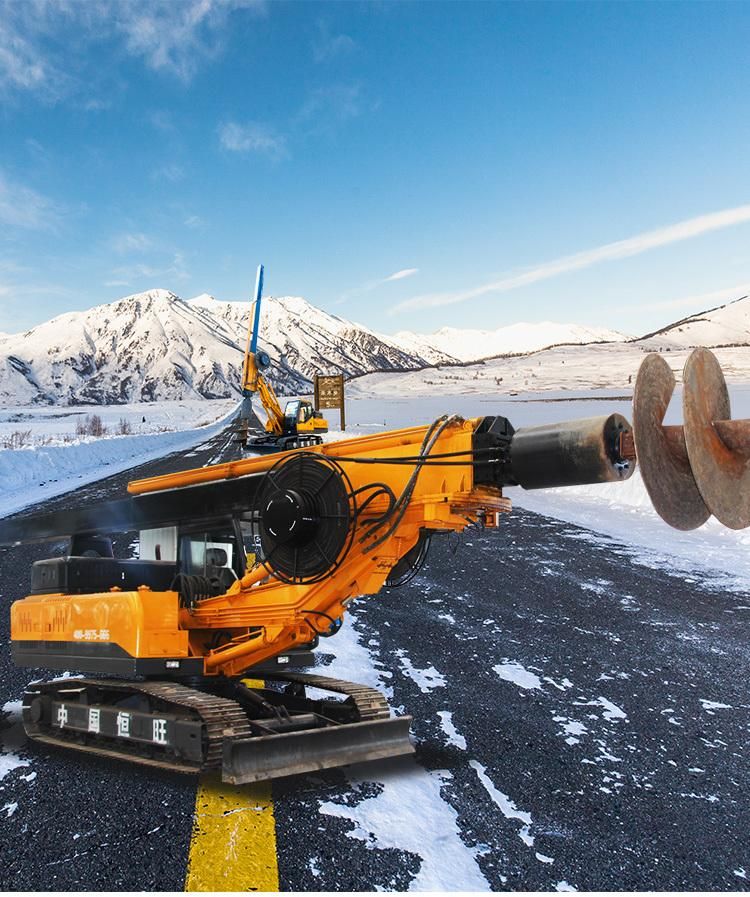

Hydraulic Ground Hole Drilling Machine Auger Drill Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- Type：Screw Pile Driver
- Pressure Pile Driver Type：Mechanical Pile Driver
- Pile Hammer Type：Drop Hammer
- Power Source：Diesel
- Motor Power：75kw
- Noise：With Noise
Base Info
- Model NO.：HW30
- Certification：ISO 9001:2000
- Condition：New
- Name：Rotary Pile Driver
- Max Drilling Diameter：1200mm
- Max Drilling Depth：15m
- Woring Pressure：30MPa
- Maximum Walking Speed：4km,H
- Track Width：500mm
- Chassis Length：3600mm
- Rated Power：86kw
- Rotating Speed：5-90rpm
- Key Words：Rotary Drilling Rig
- Transport Package：Standard Package
- Specification：20m length
- Trademark：Hengwang
- Origin：Shandong
- HS Code：8430100000
- Production Capacity：5000sets,Year
Description

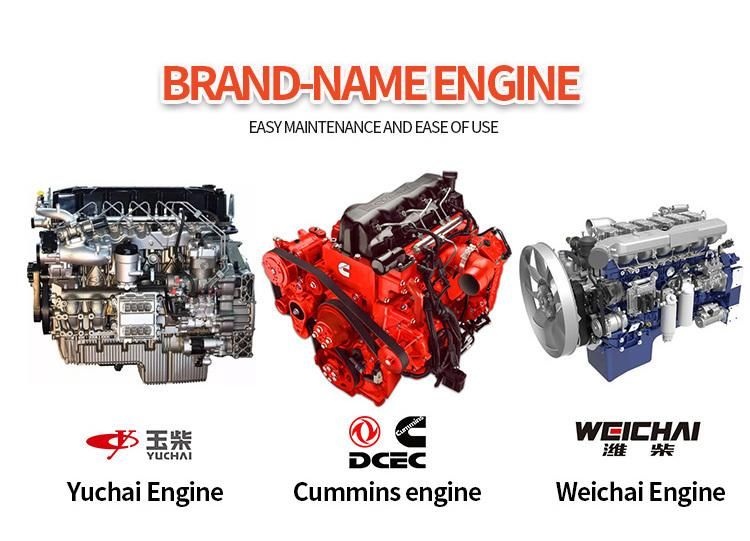

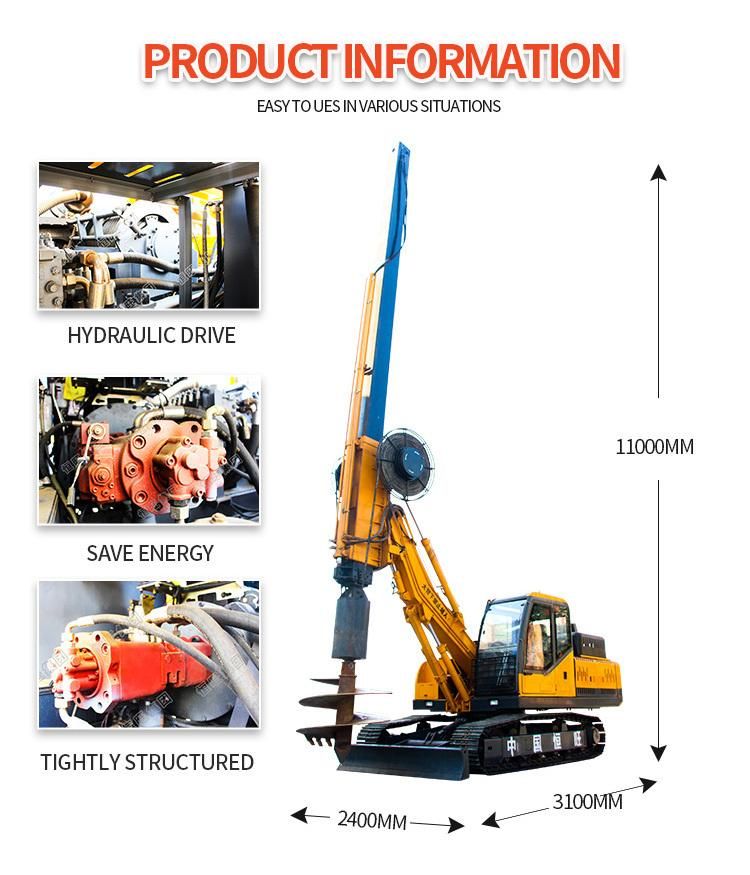

Parameters/ModelHWDR150 HWDR200 Outsize Working Size(length×Width×Height) m 5.9×2.3×10.5 7.1×2.6×12 Transport Size(length×Width×Height) m 8.2×2.3×3.25 10×2.6×3.38 Machine Weight t 17 22 Max Drilling Diameter mm 1200 1400 Max Drilling Depth m 15 20 Engine Brand Yuchai Cummins Model 4A115Z 6BT5.9-C150 Rated Power kw/rpm 86/2400 110/2300 Hydraulic Flow Woring Pressure Main Pump Mpa 30 30 Secondary Pump Mpa / / Max Flow Main Pump L/min 2×63 2×63 Secondary Pump L/min / / Power Head Maximum Torque Kn.m 60 80 Rotating Speed rpm 5-90 5-85 Maximum Throwing Speed rpm 90 85 Pressurized System Maximum Pressure Kn 50 70 Maximum Lifting Force Kn 60 80 Maximum Travel mm 2800 2800 Main Hoist Maximum Lifting Force kn 10 15 Maximum Lifting Speed m/min 72 71 Deputy hoist Maximum Lifting Force kn 15 20 Maximum Lifting Speed m/min 60 70 Mast Tilt Left And Right ° ±5 ±5 Anterior Angle ° 8 8 Chassis Maximum Walking Speed km/h 4 3 Maximum Grade ° 35 35 Track Width mm 500 600 Track Chain Pitch mm 154 190 Chassis Length mm 3600 3800 Average Grounding Ratio kPa 66.3 77
