• Model NO.：All Models
• Warranty：3 Month
• Delivery Time：15-20days
• Transport Package：in Cartons.
• Specification：Pointer and digital
• Trademark：SYM
• Origin：Liaoning, China
• HS Code：9015800090
• Production Capacity：5000 Sets Per Month

Rated voltage

AC 48V (50HZ)

Power consumption

less than 5W

Output voltage

DC 0~20V

Output current

DC 0~50A

Working time

continuously

No. 2 OMD slewing controller boundary connection sketch map

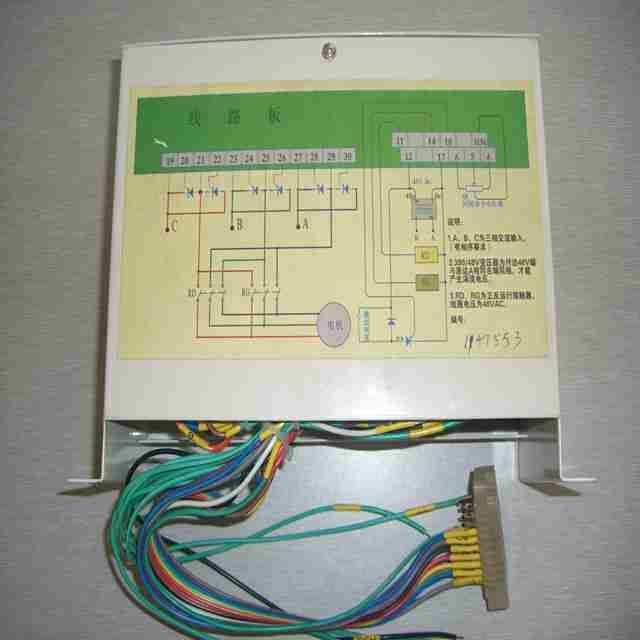

No. 3 RCV slewing block

1 Application

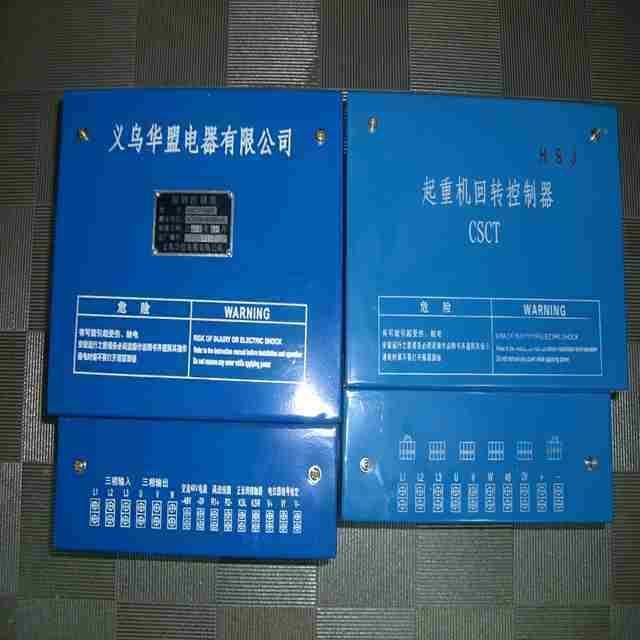

   RCV slewing controller is a tower crane hoisting slewing controller device combined of three-phase AC variable voltage control and eddy current speed control.

  After connection with the vortex torque motor and reduction box,through the potentiometer voltage instruction on the operation panel,to control the thyristor trigger conduction abgle of three-phase AC current and eddy current, so that control the rotation speed of eddy current torque motor,realize the smooth start,operation and stop of the tower crane slewing system.

2 Structure characteristic

(1) Application environment condition

     working temperature : -5  °C~ 40  °C

     relitive humidity : 50%( when the temperature is 40  °C)

                                   maximum 90% (when the temperature is 20  °C)

(2) Power grid quality :

      voltage continuously fluctuate no more  than  ±10%

 3 Technical parameter

Rated voltage

 50HZ,380V three-phase voltage

 50HZ,AC48V one-phase voltage

Output voltage

 three-phase output voltage AC 0~380V

 eddy current voltage DC 0~20V

Output current

 three-phase output current by  optional:106A;162A;273A

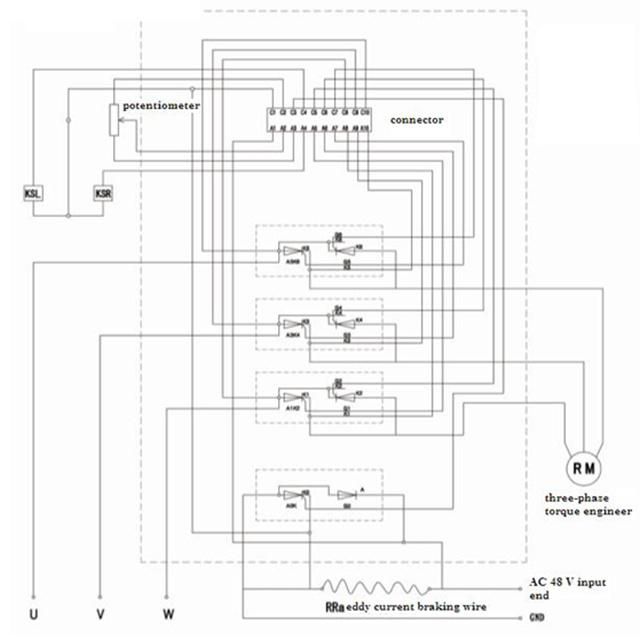

4 RCV slewing controller and thyristor template connection sketch map

5 Boundary dimension and installation

 Boundary dimension : 160mm*240mm*65mm

 Installation size : 210mm*24mm* Φ3mm

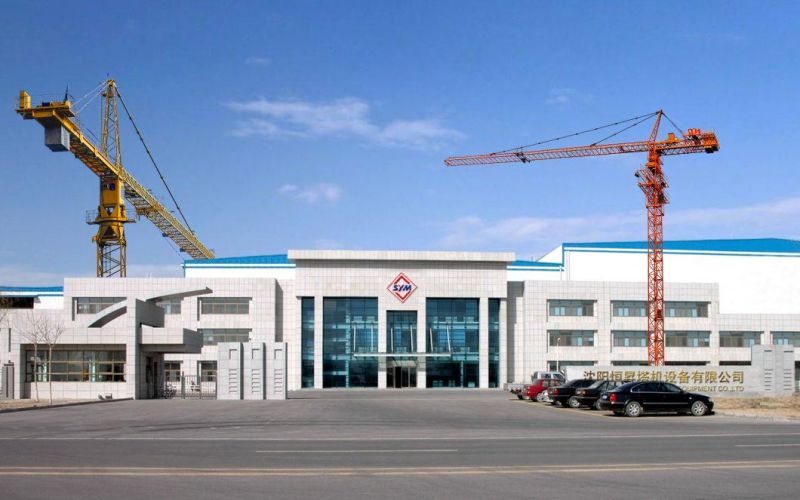

SYM HOIST & TOWER CRANE QUIPMENT CO.,LTD located in Shenyang China is one of the biggest supplier and export of tower crane, luffing crane , topless crane , passenger hoist along with the spare parts for them. With 20 years' experience on tower crane rent , installation , repair and reconstruction, the company has more than 50 experienced mechanical and electrical engineer responsible for the installation guide, failure diagnosis, maintainance and reconstruction for the tower craneattheconstructionsite.
