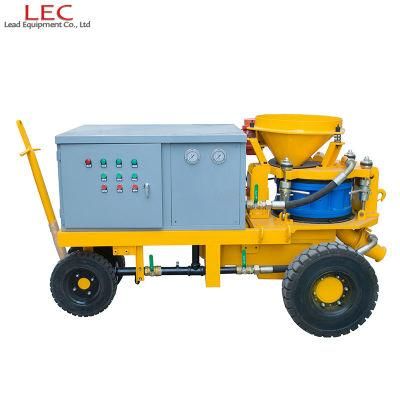

Retaining Walls Dry Way Diesel Shotcrete Machine for Hydropower Projects
Zhengzhou Lead Equipment Co., Ltd.- Type：Shotcrete
- Shotcrete Type：Dry
- Machining Process：Welded Molding Machine
- Structure：Spiral Type
- Productivity：9m3,H
- Feeding Height：1.17m
Base Info
- Model NO.：LZ-9D
- Certification：ISO9001: 2000, CE, SGS
- Condition：New
- Color：Yellow
- Product Name：Shotcrete Machine
- Drive Type：Electric Motor Drive, Pneumatic Drive, Diesel Driv
- Max. Aggregate Size：Dia.20 mm
- Conveying Hose Inner Diameter：Dia.64 mm
- Conveying Pressure：0.2-0.4MPa(29-58psi)
- Air Consumption：10~12m 3 ,Min(357-430cfm)
- Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
- Specification：ISO
- Trademark：Leadcrete
- Origin：China
- HS Code：84743100
- Production Capacity：5000 Sets,Year
Description
Diesel engine driveOutput Capacity 6-9m 3 /h Max. Horizontal Conveying Distance 200m Suitable Mix Ratio(Cement/Sand) ≤1:4~5 Max. Aggregate Size Dia.20 mm Conveying Hose Inner Diameter Dia.64 mm Conveying Pressure 0.2-0.4MPa(29-58PSI) Air Consumption 10~12m 3 /min(357-430CFM) Material Charging Height 1.1m Rotor Speed 7.5-11r/min Diesel Engine 20hp,2200rpm, Radiator Cooling Diesel Engine Starting Electric start Clutch Type in Diesel Engine Automatic Clutch Air Vibrator OR100,Oli Overall Dimension(length×width×height) 2.66×1.11×1.50m Net Weight 950kg

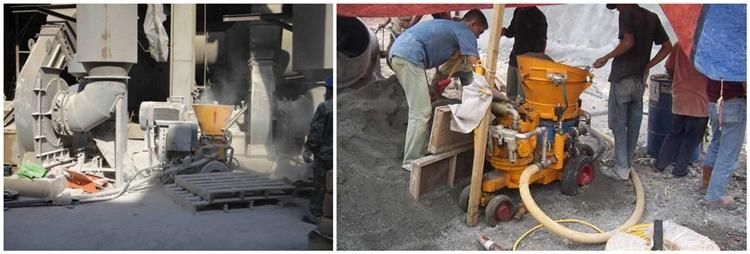

3. Application:
LZ-9 can be used for large-section tunnel building, mine, etc
4. Features:
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4. Partifularly used for dry, damp mix and steel(polymer)fiber reinforced shotcrete.

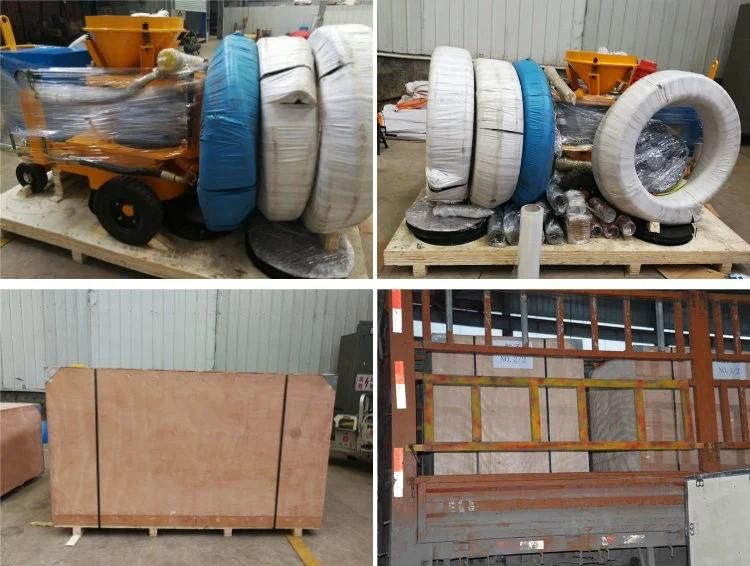

5.Packaging & Shipping:
6.Company Information:
