• Model NO.：LSZ3000E
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Color：Customized
• Product Name：Wet Shotcrete Machine
• Drive Mode：Electric Motor
• Max. Horizontal Conveying Distance：35m
• Max. Aggregate Size：15mm
• Concrete Slump：8 -15cm
• Conveying Hose Inner Diameter：51, 64mm
• Operating Air Pressure：0.3-0.6MPa (43-86psi)
• Air Consumption ：10~ 12m3 ,Min
• Main Motor Power：7.5kw(10HP)
• Dosing Pump Output  ：17.5 -88L ,H
• Rotor Speed：11r,Min

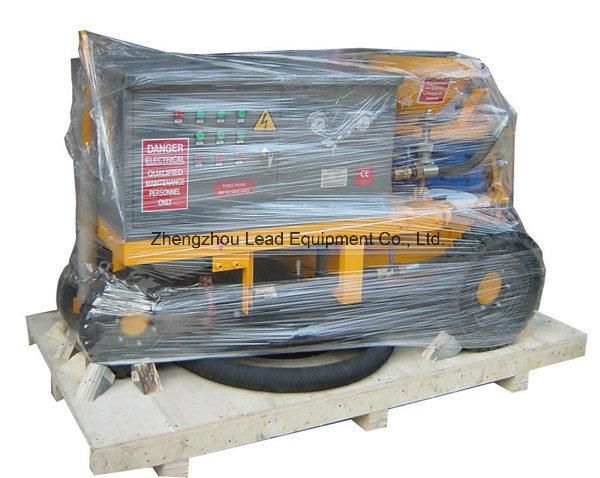

• Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
• Specification：2.05*0.95*1.18m
• Trademark：Leadcrete
• Origin：China
• HS Code：84743100
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LSZ3000E Certification ISO9001: 2000, CE, SGS Condition New Color Customized Product Name Wet Shotcrete Machine Drive Mode Electric Motor Max. Horizontal Conveying Distance 35m Max. Aggregate Size 15mm Concrete Slump 8 -15cm Conveying Hose Inner Diameter 51/ 64mm Operating Air Pressure 0.3-0.6MPa (43-86psi) Air Consumption  10~ 12m3 /Min Main Motor Power 7.5kw(10HP) Dosing Pump Output   17.5 -88L /H Rotor Speed 11r/Min Transport Package Plastic Wrap, Plywood Case, Free-Fumigation Specification 2.05*0.95*1.18m Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

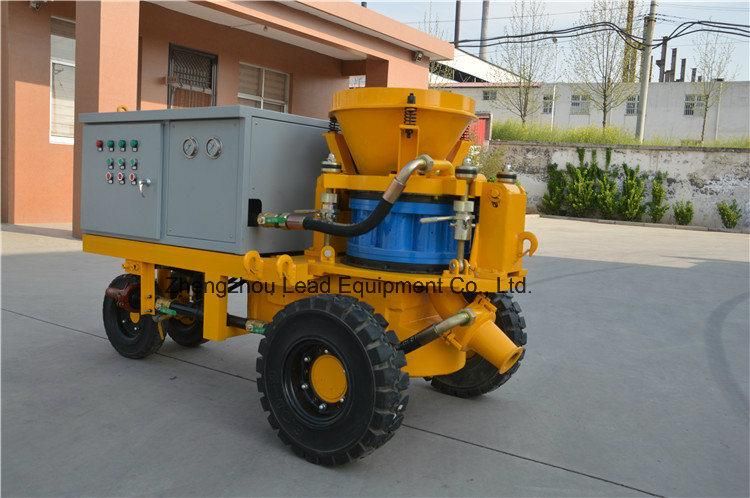

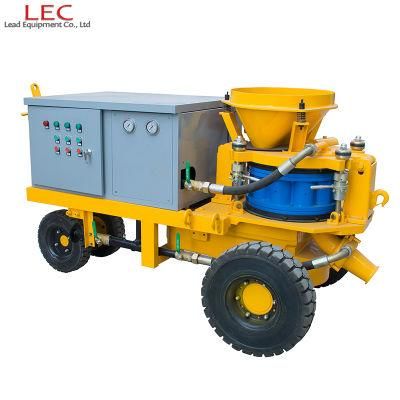

underground excavation engineering used wet shotcrete machine for Mining





1. Description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel


2. Application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

3.Product Parameter:

Drive type	electric motor drive
Rated Output	5m3 /h
Max. Horizontal Conveying Distance	35m
Max. Aggregate Size	15mm
Concrete Slump	8 -15cm
Conveying Hose Inner Diameter	51/ 64mm
Operating air Pressure	0.3-0.6MPa (43-86PSI)
Air Consumption	10~ 12m3 /min(357-430CFM)
Main Motor Power	7.5kW(10hp)
Dosing Pump	LH-15
Dosing Pump Rated Pressure	0.6MPa(86PSI)
Dosing Pump Output	17.5 -88L /h
Voltage	220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height	1.17m
Rotor Speed	11r/min
Overall Dimension(L × W × H)	2.05× 0.95× 1.18m
Net Weight	1200kg

3. Features:
It can both for dry and shotcrete concrete spraying.
