Crawler Amphibious Dredger Marsh Dredger with Undercarriage Pontoon for Swamp and Wetland
Sinoway Industrial (Shanghai) Co., Ltd.- Warranty：One Year
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
Base Info
- Model NO.：SWEA260
- Bucket Capacity：0.5~1.0m³
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000, ISO14001
- Condition：New
- Product Name：Amphibious Excavator
- Brand：Sinoway
- Pontoon Size：9.5 Meters
- Spud Pile Length：4~10 Meters
- Pontoon Material：Alloy Steel
- Side Pontoon：Optional
- Hydraulic Piles：Optional
- Transport Package：Nude
- Specification：ISO
- Trademark：SINOWAY
- Origin：China
- HS Code：84163600
- Production Capacity：100 PCS Per Year
Description
Basic Info.
Model NO. SWEA260 Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE, ISO9001: 2000, ISO14001 Condition New Product Name Amphibious Excavator Brand Sinoway Pontoon Size 9.5 Meters Spud Pile Length 4~10 Meters Pontoon Material Alloy Steel Side Pontoon Optional Hydraulic Piles Optional Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84163600 Production Capacity 100 PCS Per YearProduct Description

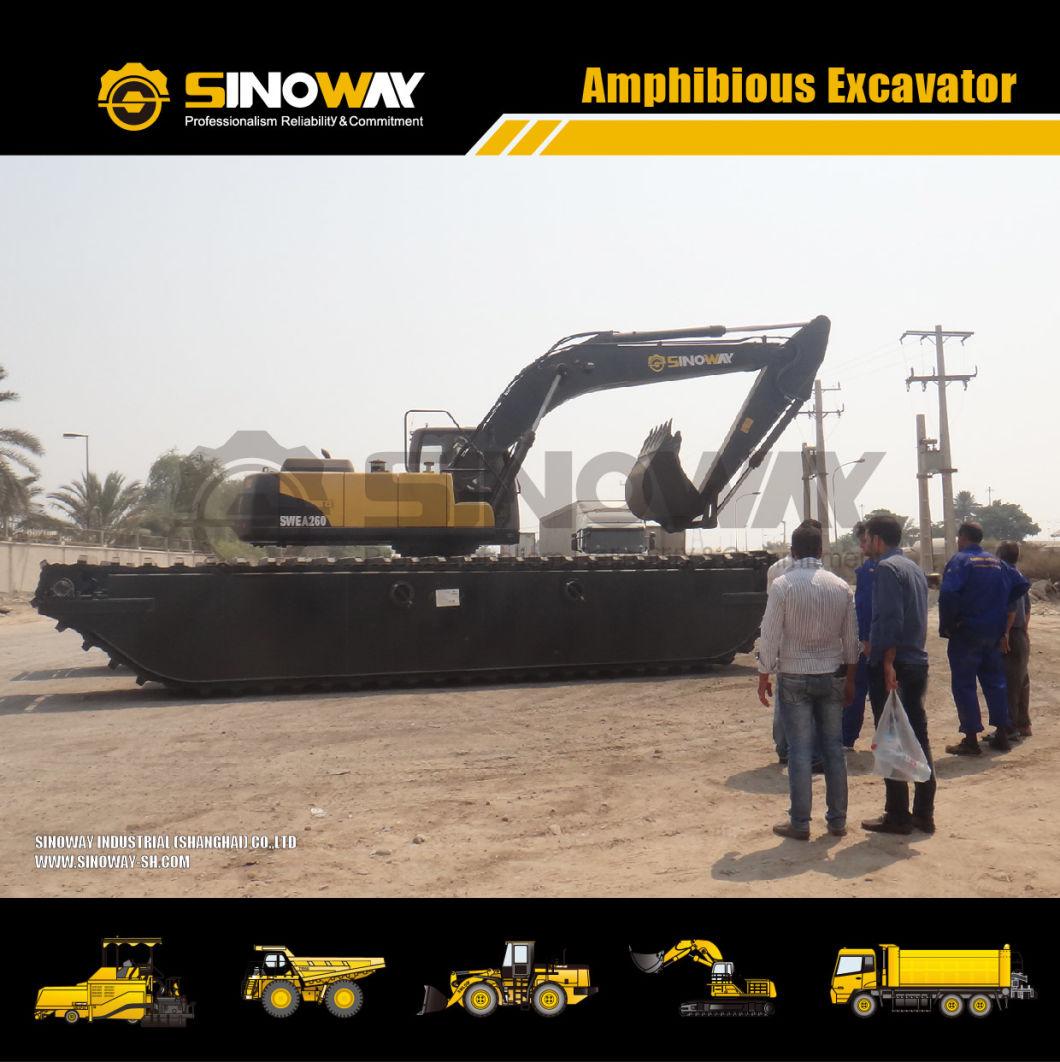

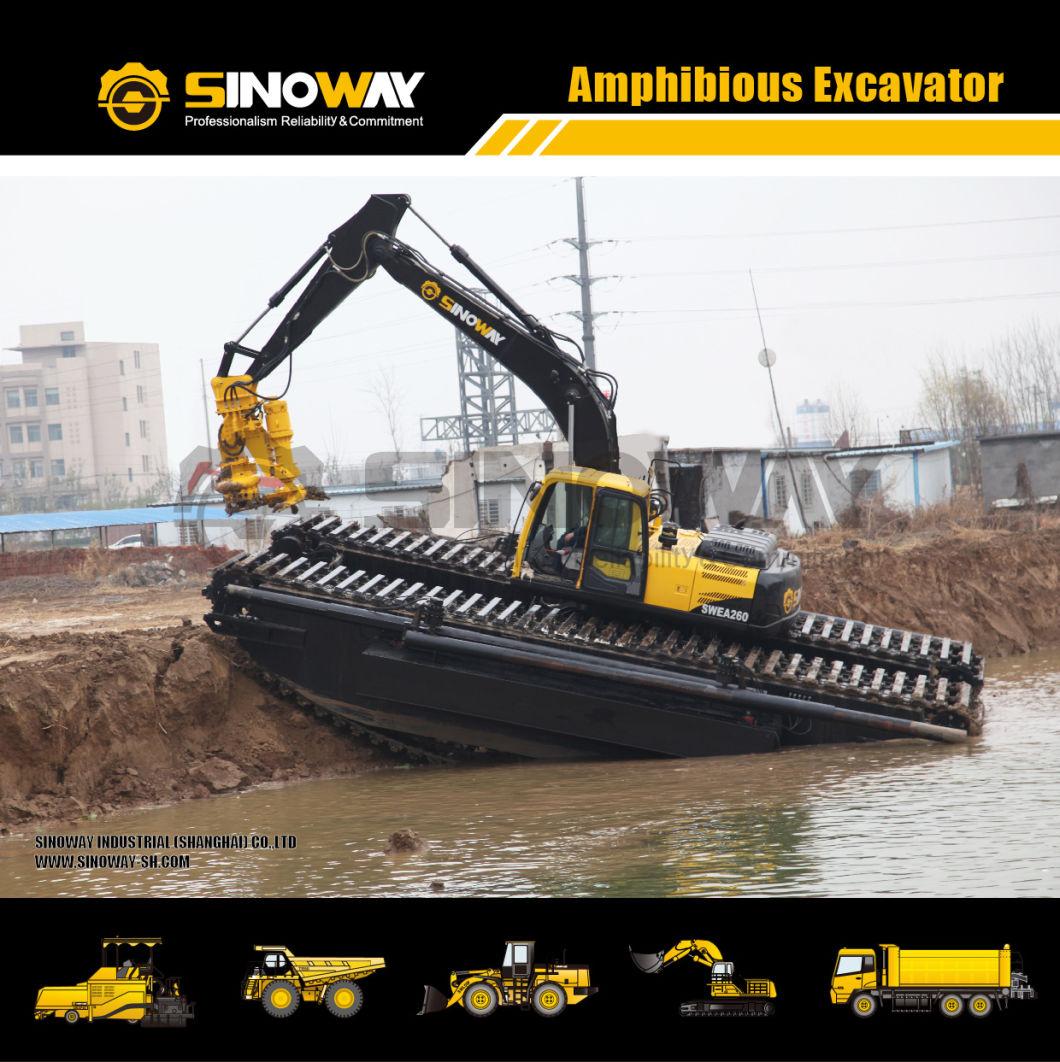

Machine Show
Machine Introduction
Specifications
| Engine | |
| Model | Cummins /Isuzu |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 133KW |
| Rated speed | 2100rpm |
| Main Technical Specification | |
| Operating weight | 42000Kg |
| Standard bucket capacity | 1.1m3 |
| Slewing speed 11rpm | 11rpm |
| Stick digging force | 110KN |
| Bucket digging force | 150KN |
| Main Features | |
| Tracked pontoon structure | |
| Big torque travelling device | |
| Big circular arc structure | |
| High capacity of fuel tank | |
| Main Applications | |
| River/Beach earth moving | |
| Swamp works | |
| Dredging applications | |
| Delta works | |
| Waterway deepening | |
| Hydraulic System | |
| Main pump | KAWASAKI |
| Main valve | KAWASAKI |
| Motor | KAWASAKI |
| Hydraulic flow rate | 2x235L/min |
| Hydraulic pressure | 32MPa |
| Travelling System | |
| Travelling speed | 0~5.4km/h |
| Grade ability | 65% |
| Ground pressure | 0.0135MPa |
| No. of chains | 3 |
| Dimensions | |
| Overall length | 12100mm |
| Overall width | 6000mm |
| Overall height | 3900mm |
| Ground clearance | 1192mm |
| Length of pontoon | 10200mm |
| Width of pontoon | 1760mm |
| Height of pontoon | 1700mm |
| Operating Scope | |
| Stick length | 3000mm |
| A: Max. cutting height | 10980mm |
| B: Max. dumping height | 8140mm |
| C: Max. digging depth | 6940mm |
| D: Max. reach | 10290mm |
