• Model NO.：SWEA200
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Product Name：Amphibious Excavator
• Brand：Sinoway
• Engine Power：110kw
• Pontoons Length：8.5 M
• Pontoon Height：1.7 M
• Boom Reach：10 M
• Chain Number：Three
• Compartment：Three
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：50PCS,Month

Basic Info.

Model NO. SWEA200 Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Product Name Amphibious Excavator Brand Sinoway Engine Power 110kw Pontoons Length 8.5 M Pontoon Height 1.7 M Boom Reach 10 M Chain Number Three Compartment Three Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 50PCS/Month

Product Description

Appilication

Sinoway SWEA220 is a medium scale amphibious excavator, which is enjoying heavies demand in the global market, especially Weast Africa and South America.
Fitted with Isuzu, Cummins or Doosan engines are available with us. The engines produce bigger output and torque, and far better fuel consumption. Sinoway insist on using a mechanical injection engine as we understand that our amphibious excavators must be able to take poor grade fuel.
1-Deepening of canal, river channel and river mouth
2-Swamp land clearing at mining area, plantation and forest
3-Building bund for flood prevention and land reclamation
4-Sludge clearing of lakes, ponds and water reservoir
5-Digging trenches for oil and gas piping installation
6-Swamps and wetlands construction

Main Features

Equipped with Cummins, Isuzu or Doosan engine with good performance and reliability.
Multi Synchronous Drive System
Proprietary multi-synchronous drive motor design.Motors are mounted on front and rear of each pontoon.It offers superior tracking power as compared to a single motor design. A similar concept that is applied to a full time 4x4 gear system of a land vehicle.
Amphibious Modular Design
Designed to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into 40ft container. Both the assembly and disassembly processes can be achieved in under 3 hours if equipped with proper tools and crane.
No special tooling is required for the assembly and disassembly process. Supplementary pontoons can be added on each side to boost stability in deeper water operation. Spud piles attach to supplementary pontoons help to overcome buoyancy effect, it offers added stability and enhanced operability.
Pontoons are designed and built with provision for future addition of supplementary pontoon and spud system.
Strengthened Boom
The Shape of the boom has been optimized by finite elements design, allowing the loads to be better distributed throughout the structure. This combined with increased material thickness means improved durability and reliability by limiting element fatigue.
Arm Assembly
In the arm assembly greater strength has been gained by using cast elements and reinforcement around the bosses to give it an increased lifetime.
Hydraulic Undercarriage Pontoons
Each pontoon has 3 watertight compartments and manhole.The track system (shoe, chain, roller, pin and bushing) is extremely controlled tight tolerance. The track shoe supported by multiple stands of track chains provided the advantage of uniform pulling force and superior weight distribution across each track shoe. The shape of shoe is optimized to generate the powerful thrust force under water and driving force on the ground also.
Driverr cabin
Operater cabin is supported with innovative silicone rubber shock absorber, which minimize the shock brought by the rough terrain and engine or hydraulic vibration and impact transmitted to the cabin, increase the stability of cabin and improve the operators' sitting quality and operating comfort.

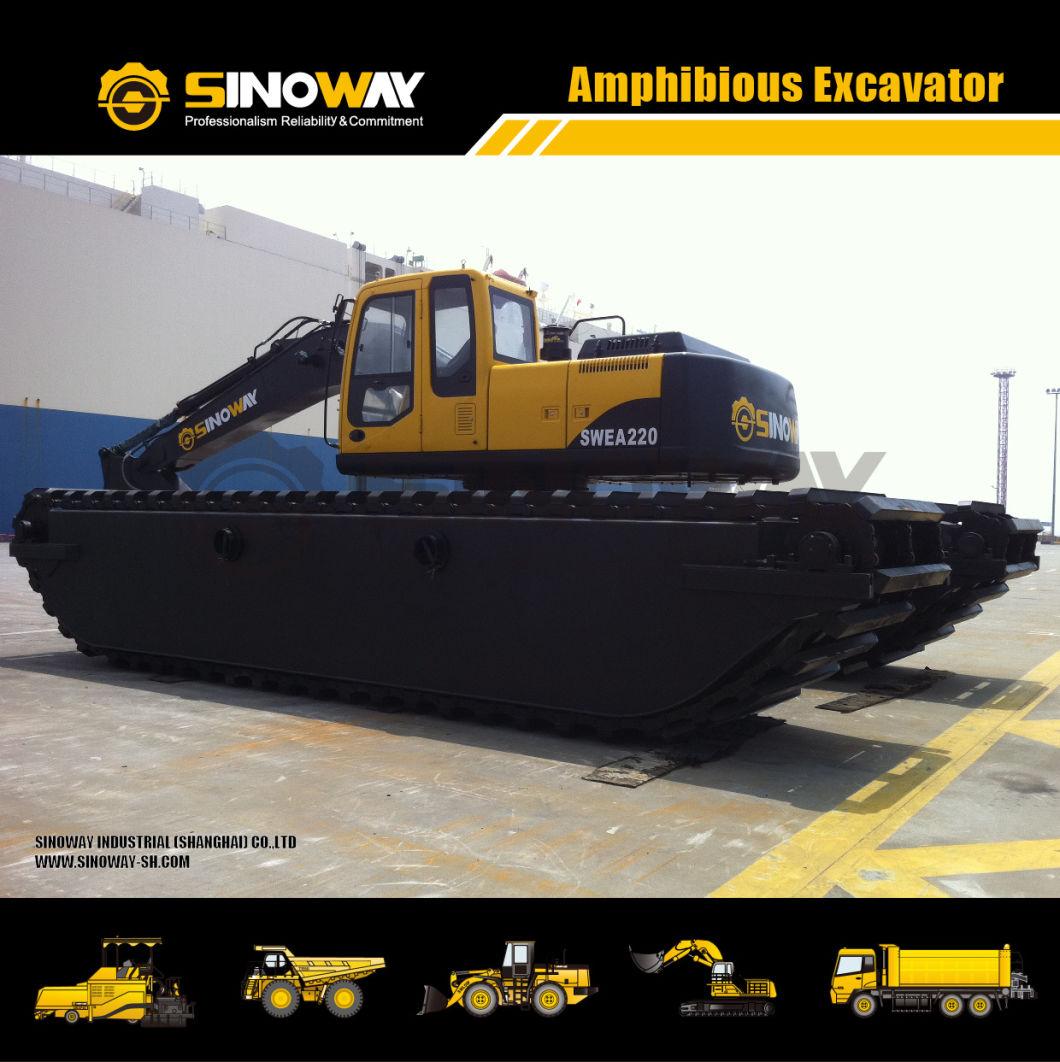

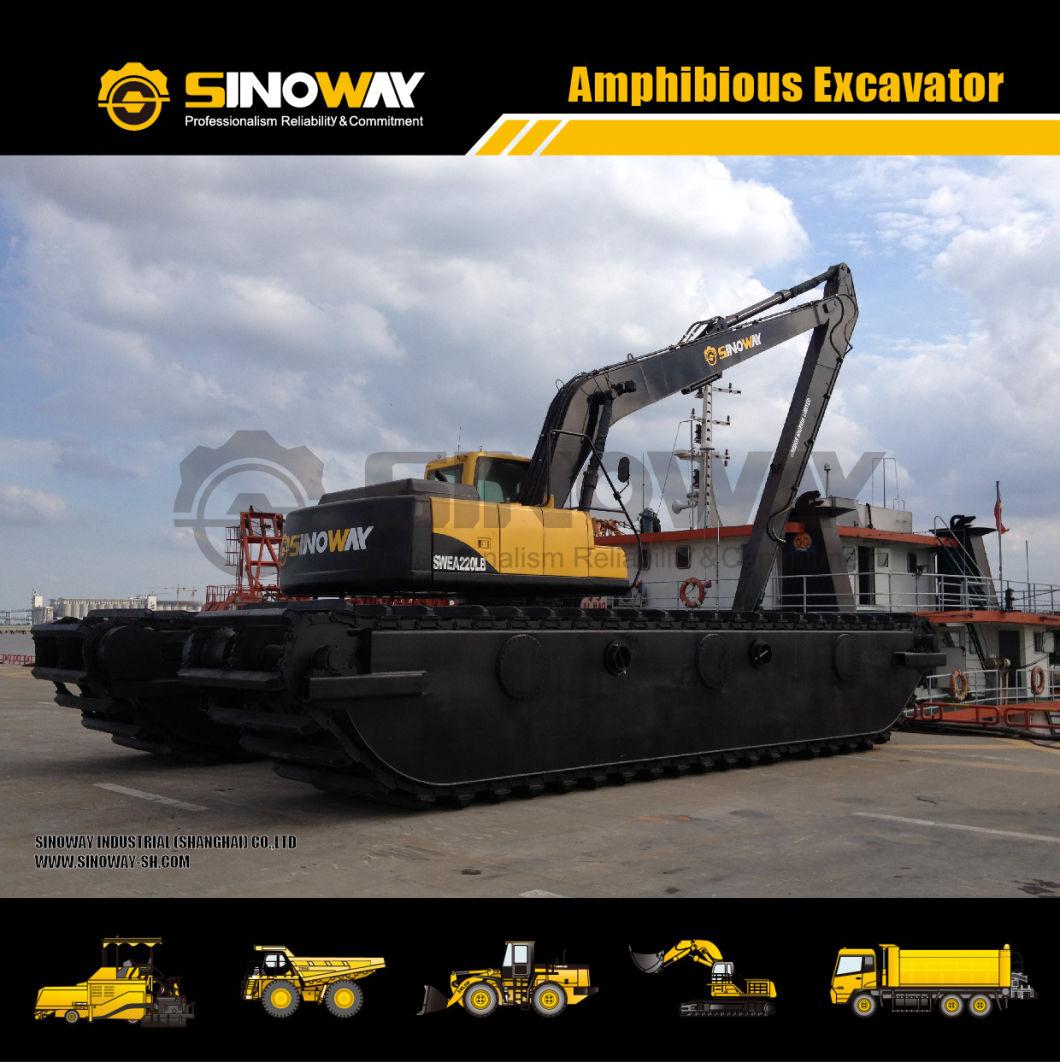

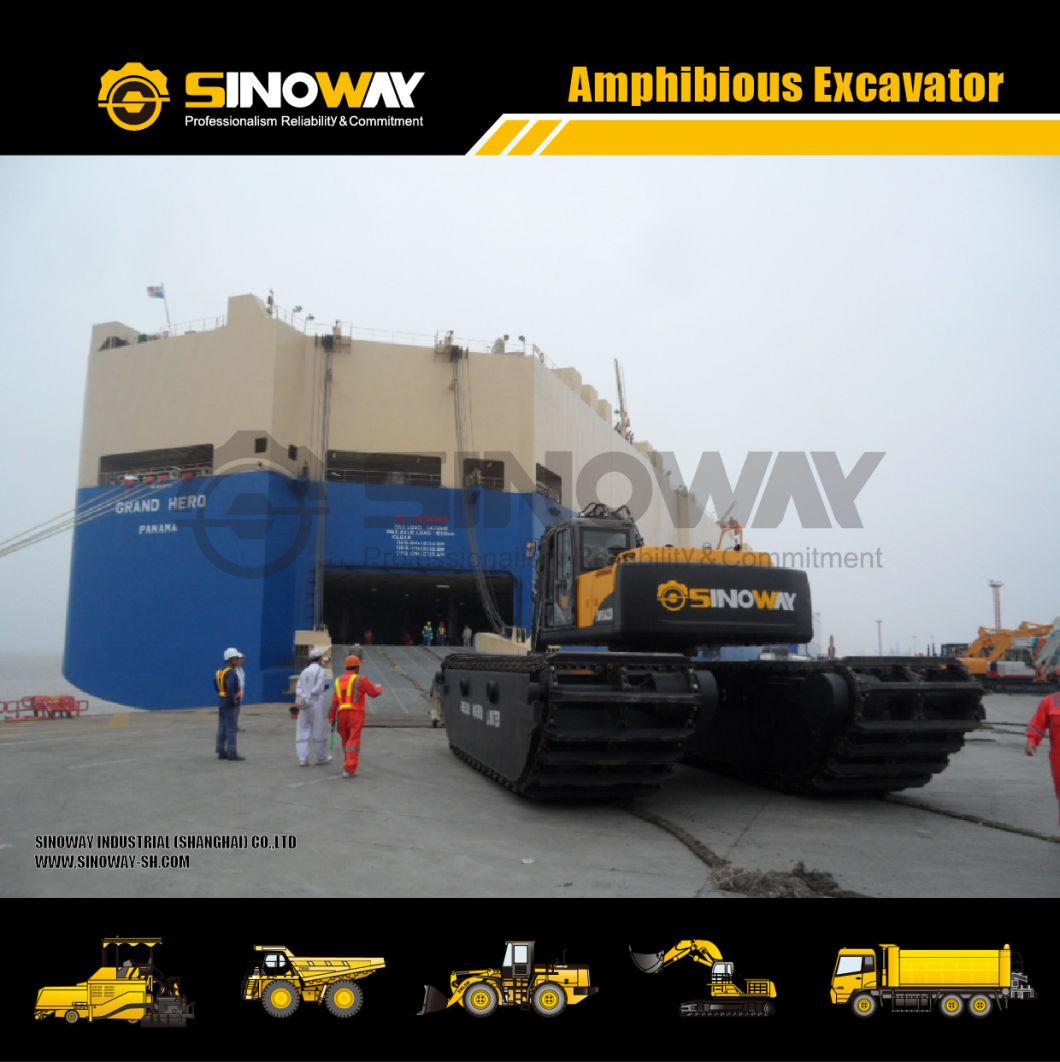

Product Show





Specifications

Engine
Model	Isuzu/Cummins/Doosan
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	110KW
Main Technical Specification
Operating weight	30000Kg
Standard bucket capacity	0.9m3
Slewing speed	11rpm
Stick digging force	97.64KN
Bucket digging force	122.85KN
Main Features
Tracked pontoon structure
Big torque travelling device
Big circular arc structure
High capacity of fuel tank
Main Applications
River/Beach earth moving
Swamp works
Dredging applications
Delta works
Waterway deepening
Hydraulic System
Main pump	KAWASAKI
Main valve	KAWASAKI
Motor	KAWASAKI
Hydraulic flow rate	2x210L/min
Hydraulic pressure	32MPa
Travelling System
Travelling speed	0~5.4km/h
Grade ability	65%
Ground pressure	0.014MPa
No. of chains	300%
Dimensions
Overall length	11200mm
Overall width	5350mm
Overall height	3900mm
Ground clearance	1192mm
Length of pontoon	8000mm
Width of pontoon	1500mm
Height of pontoon	1500mm
Optional
Wide bucket
Operating Scope
Stick length	2900mm
A: Max. cutting height	10577mm
B: Max. dumping height	7810mm
C: Max. digging depth	5704mm
D: Max. reach	10000mm

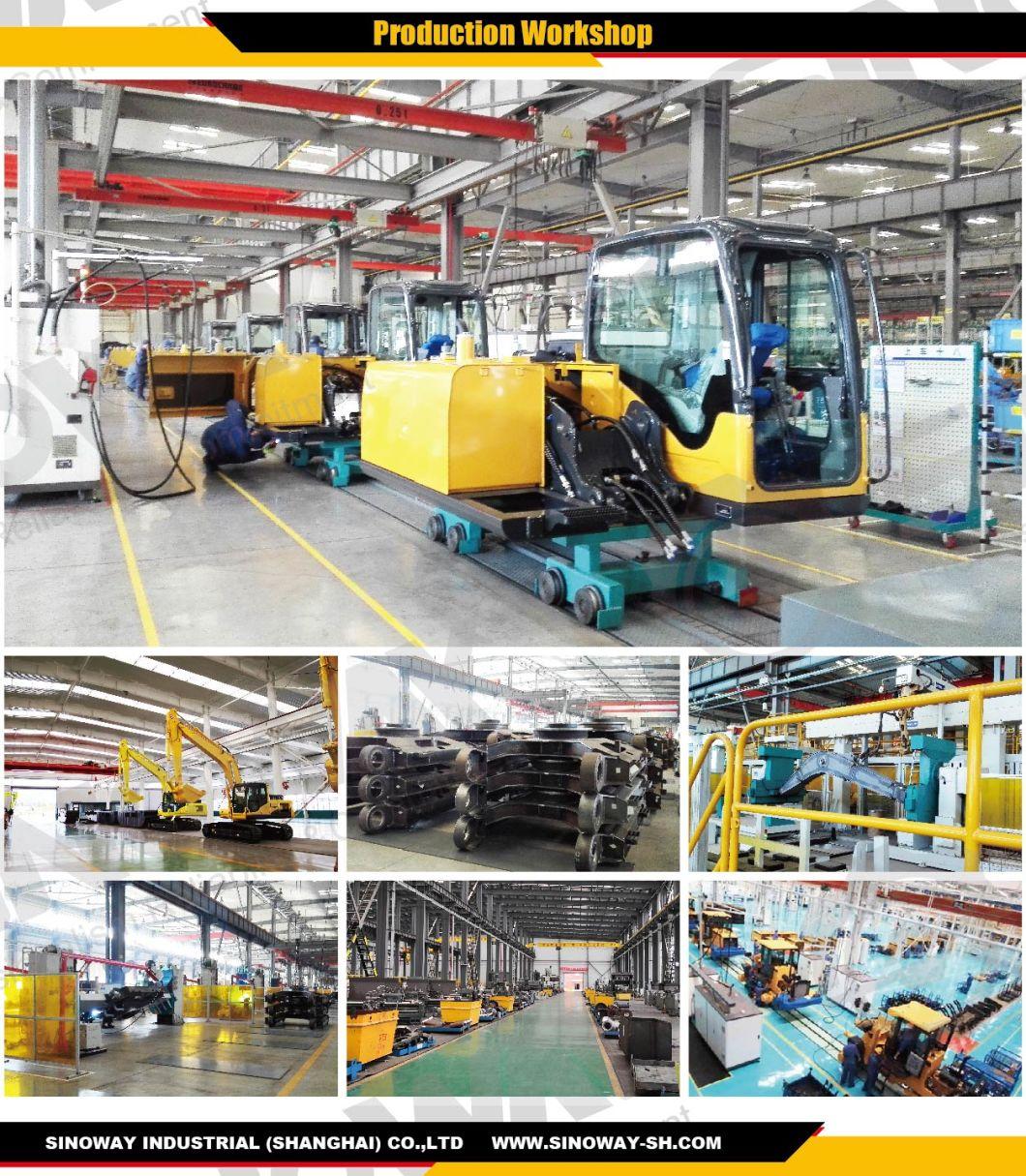

Production Line
