• Model NO.：SWSS6000
• Certification：ISO9001: 2000
• Condition：New
• Brand：Sinoway
• Engine Make：Cummins
• Rated Power：191 Kw
• Spreading Width：0-6000 mm
• Spreading Speed：3-7 Km,H
• Aggregate Size：3-30mm
• Front Spreading Hopper：1.7m3
• Warranty：One Year
• Transport Package：Naked
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：10 Units,Month

Basic Info.

Model NO. SWSS6000 Certification ISO9001: 2000 Condition New Brand Sinoway Engine Make Cummins Rated Power 191 Kw Spreading Width 0-6000 mm Spreading Speed 3-7 Km/H Aggregate Size 3-30mm Front Spreading Hopper 1.7m3 Warranty One Year Transport Package Naked Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 10 Units/Month

Product Description

Product Description
1-Hydraulic telescopic design enabled the flexible adjusting of spreading wide;
2-The openness of aggregate door and spreading speed are proportionally controlled. Spreading rate will not be affected by the truck speed;
3-Belt feeding of the material is controlled by level indicator. Materials feeding can be finished automatically;
4-Auger conveying of the material is controlled also by level indicator. Materials can be conveyed continuously;
5-The auger and roller are driven by independent motor and will not interfere with each other;
6-Hydraulic driven introduced in the walking system. The moving of truck is stable and the travel speed can be adjusted easily.
7-The cleaning, repairing and maintenance of equipment tends to be convenient.The receiving hopper introduces hydraulic control, which reduced the residual amount of aggregates after spreading work;
8- Self-locking tow hooks enabled the convenient connection and disconnection of spreader and dumper during spreading.
9-The height of hooks can be adjusted accordingly to catch with the traction rod on dumper.
10- High efficient diesel engine can meet the working requirement in different environment and with different loading capacity. Full hydraulic steering system applied on the truck makes the turning to be more flexible.
11- Stable and high efficient hydraulic braking system applied on the truck makes braking performance of the vehicle to be more superior.
12- Movable seat (operation console) applied to improve the vision of operator. Operation turns to be more intuitive.
he control force.

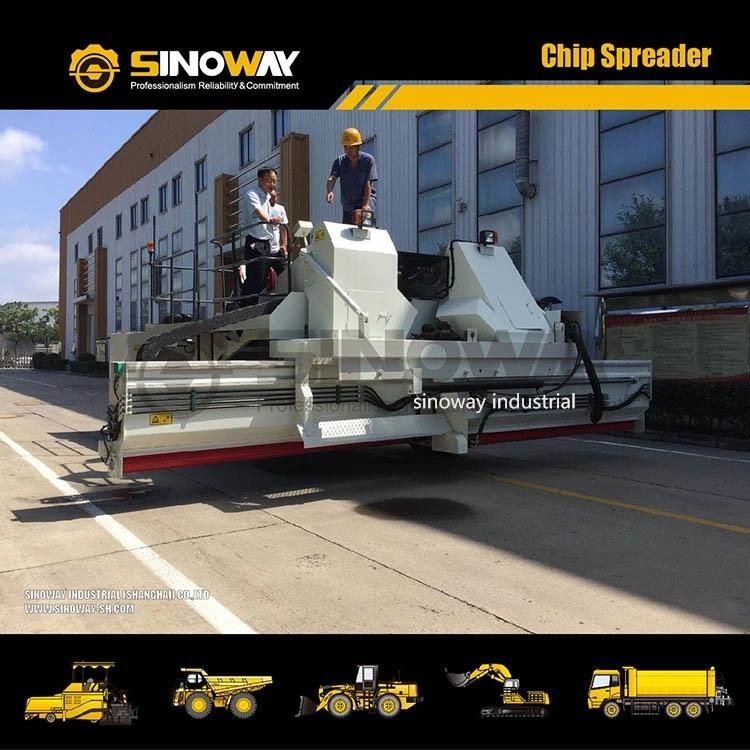

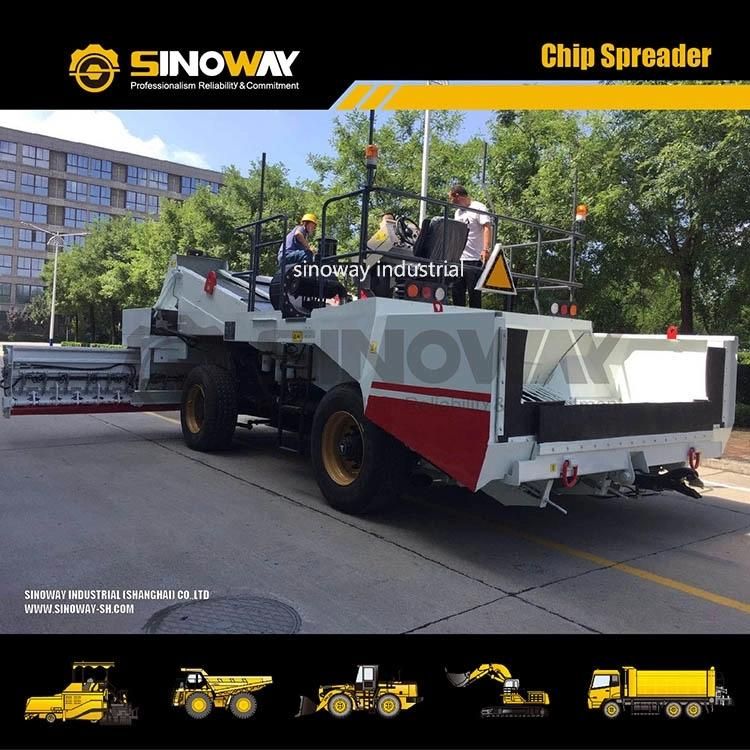

Product Show


Specifications


Engine make	CUMMINS
Rated power	191KW
Rated speed	2000r/min
Aggregate size	3~30mm
Spreading width	0~6000mm
Spreading rate	3~22L/m2
Spreading speed	3~7km/h
Max. travel speed	23km/h
Belt speed	180r/min
Auger speed	120r/min
Roller speed	95r/min
Lateral spreading ratio	≥95%
Longitudinal spreading ratio	≥95%
Max.front wheel turning angle	25°
Min.turning radius	9000mm
Min.ground clearance	310mm
Min. departure angle	12.5°
Front wheel base	2120mm
Rear wheel base	2400mm
Front spreading hopper	1.7m³
Rear receiving hopper	2.8m³
Total mass	12000kg
Transporting dimensions	7600×3300×2650mm
Working dimensions	7600×6150×2650mm
Transmission	CVT
No. of gear	F1 & R1
