• Model NO.：SWSC100
• Bucket Capacity：None
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000, ISO14001
• Condition：New
• Payload Capacity：10 Ton
• Operating Weight：30 Ton
• Engine Power：250HP
• Engine Make：Cummins
• Deck Dimension：8 X 6 M
• Brand：Sinoway
• Model：Swsc100
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. SWSC100 Bucket Capacity None Size Medium-Sized Certification CE, ISO9001: 2000, ISO14001 Condition New Payload Capacity 10 Ton Operating Weight 30 Ton Engine Power 250HP Engine Make Cummins Deck Dimension 8 X 6 M Brand Sinoway Model Swsc100 Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 100 PCS/Month

Product Description

Product Description

Dredging Equipment
Amphibious swamp transport vehicle is a special kind of vehicle used for transportation of people or equipment in soft terrain and marsh areas.
Sinoway SWSC100 amphibious swamp transporter is specifically designed to manoeuvre in marshy, swampy area and soft terrain, and it can also float on water as an added safety feature. It is completely self propelled and can virtually access all terrains. Amphibious transporters consist of an undercarriage and an upper structure with cabin, engine and platform.It can be equipped with winches and cranes according to different working conditions. At the same time, it can be refitted into swamp drilling platforms according to the situation. The machine can be custom-made to suit your needs too.

Main Features
Equipped with Cummins engine with good performance and reliability.
Multi Synchronous Drive System
Proprietary multi-synchronous drive motor design.Motors are mounted on front and rear of each pontoon.It offers superior tracking power as compared to a single motor design. A similar concept that is applied to a full time 4x4 gear system of a land vehicle.
Amphibious Modular Design
Designed to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into 40ft container. Both the assembly and disassembly processes can be achieved in under 3 hours if equipped with proper tools and crane.
No special tooling is required for the assembly and disassembly process.
Each pontoon has 3 watertight compartments and manhole.The track system (shoe, chain, roller, pin and bushing) is extremely controlled tight tolerance. The track shoe supported by multiple stands of track chains provided the advantage of uniform pulling force and superior weight distribution across each track shoe. The shape of shoe is optimized to generate the powerful thrust force under water and driving force on the ground also.
Driverr cabin
Operater cabin is supported with innovative silicone rubber shock absorber, which minimize the shock brought by the rough terrain and engine or hydraulic vibration and impact transmitted to the cabin, increase the stability of cabin and improve the operators' sitting quality and operating comfort.

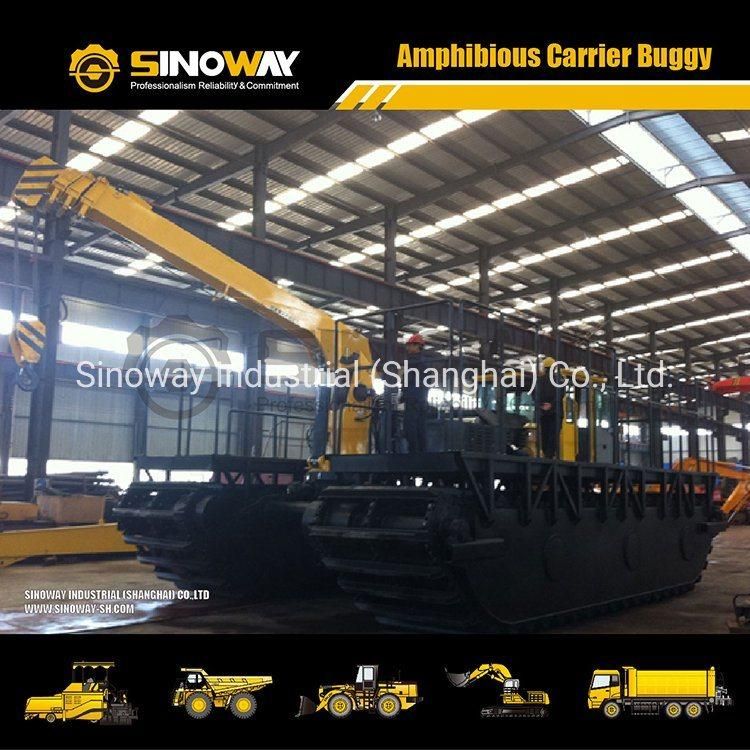

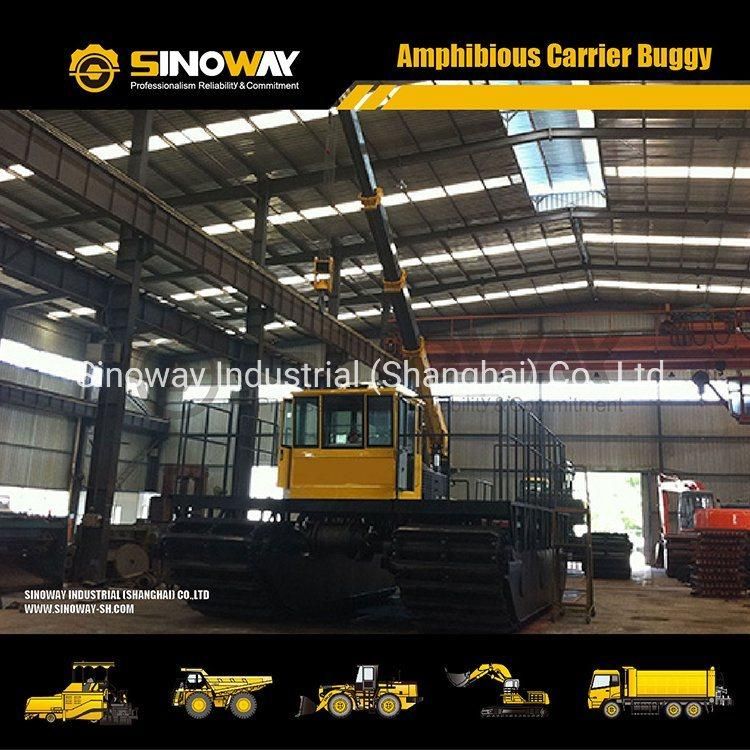

Machine Show




Specifications

Main technical Specification
Gross weight	30 ton
Max. payload	10 ton
Engine	Cummins
Type	4-cylinders, water cool, turbocharging
Rated power	186 kw (250 hp)/2200 rmp
Max. pressure	320 MPa
Max. flow	2 × 360 L/min
Main pump	Doosan
Multi-way valve	Doosan
Control valve	Doosan
Travel motor	Doosan
Travel speed on land	0~2.4 km/h
Travel speed on water	0~0.8 km/h
Grade ability	30°
Crane capacity	8 ton
Crane's working radius	12 m
Hydraulic winch's max pulling force	20 ton
Hydraulic winch's total rope length	50 m
Ground pressure	0.125 Kgf/cm2
Overall size (L × W × H)	9500×6050×4100 mm
Width of pontoon, length of pontoon	2010 mm/1700 mm
Platform size (L × W × H)	8500×6000×2100 mm
Cabin	All-steel broad cab, 360 visual angle, centralized control operator panel, ratating chair, air conditioner
Size (L × W × H)	1600×2000×1840 mm
