• Model NO.：SWMH250K
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Product Name：Material Handler
• Brand：Sinoway
• Model：Swmh250K
• Working Radius：10.2 M
• Max. Lifting Height：11.3 M
• Max. Lifting Moment：300kn.M
• Operating Weight：25 Ton
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 PCS Per Year

Basic Info.

Model NO. SWMH250K Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Product Name Material Handler Brand Sinoway Model Swmh250K Working Radius 10.2 M Max. Lifting Height 11.3 M Max. Lifting Moment 300kn.M Operating Weight 25 Ton Warranty One Year Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS Per Year

Product Description

Product Description

1-Dual engine ( Electric motor + Diesel engine) more environmental protection;
2-Electric operation has over-current and heat leakage protection device;
3-Utomatic identification of phase sequence to prevent reverse rotation of oil pump;
4-Hydraulic system power-off, oil self-locking protection device;
5-Multiple compound movements during operation to improve efficiency;
6-The hydraulic system is equipped with air-cooled radiator;
7-The gripper can rotate and change direction automatically 360 degrees;
8-When electric operation is carried out in the upper control room, there is a dual-purpose air conditioner for heating and cooling;

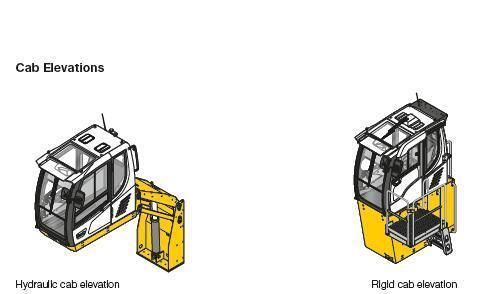

9- Hydraulic Cabin elevatied.

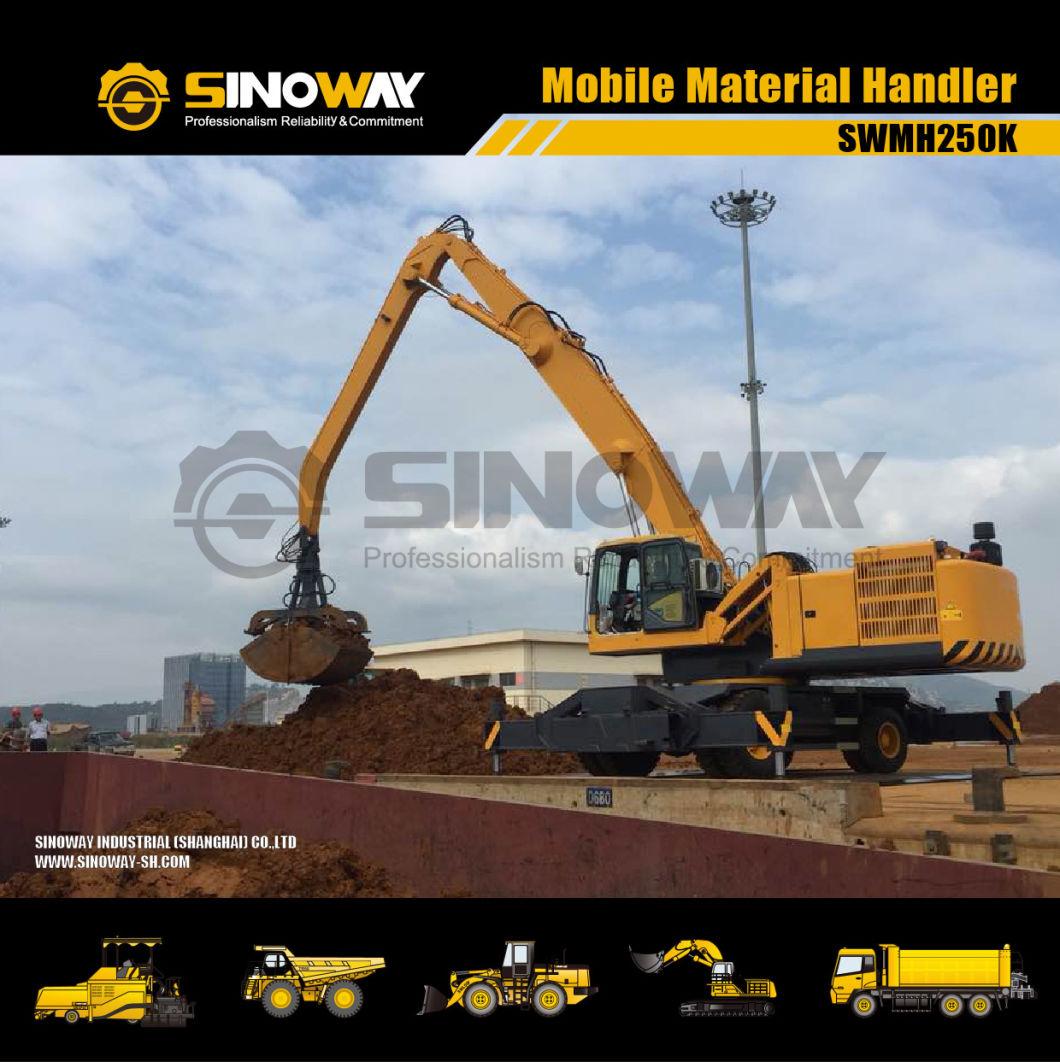

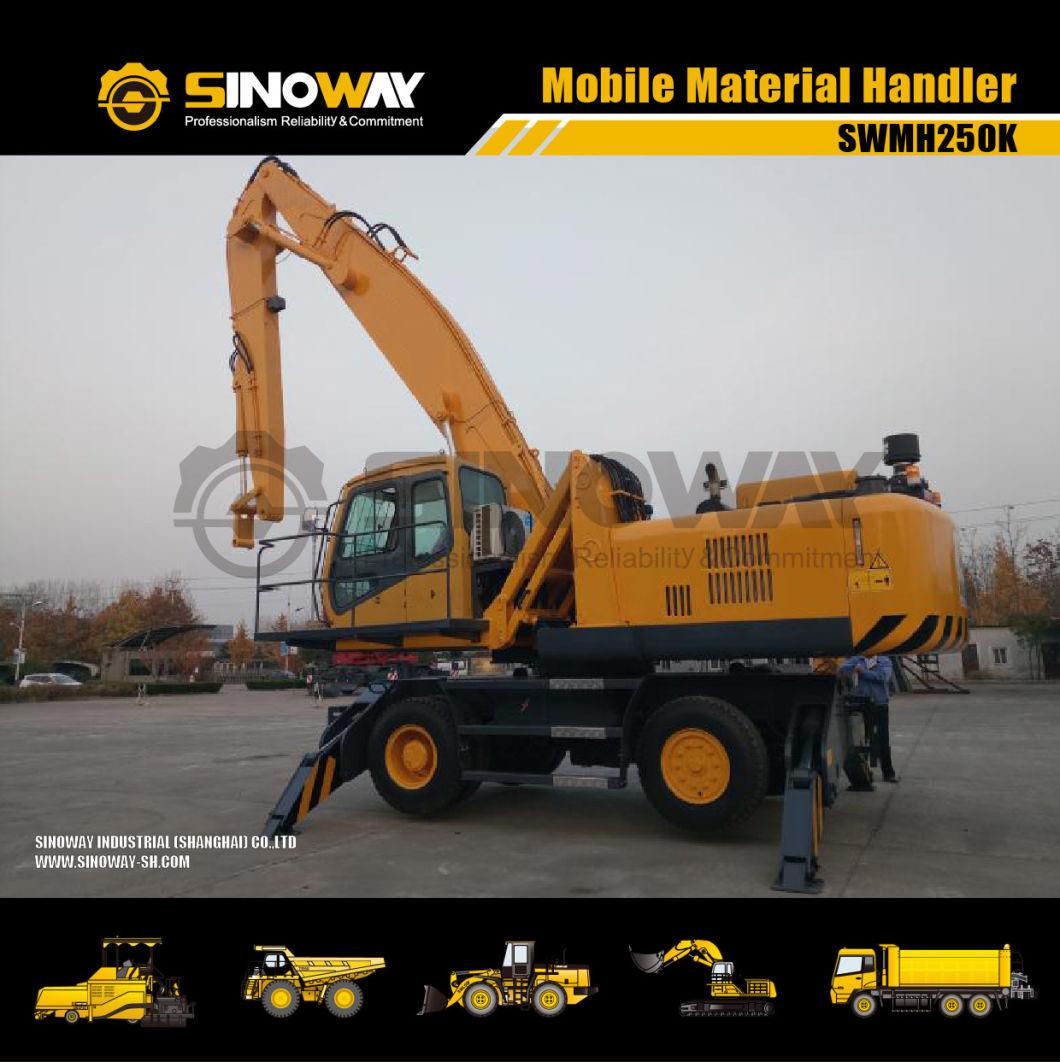

Product Show





Specifications


Mobile Material Handler SWMH250K
Power
Electrical motor	75KW
Rated speed	1200rpm
Max. swing speed(Electrical motor)	5r/min
Diesel engine	118KW
Rated speed	2200rpm
Max. swing speed(Diesel engine)	8r/min
Fuel tank capacity	320L
Main Technical Specification
Max. lifting capacity@Min. working radius	8500kg
Max. lifting capacity@Max. working radius	1000kg
Min. working radius	3000mm
Max. working radius	10200mm
Max. lifting moment	30.0t.m
Max. swing torque	75kN.m
Boom length	6200mm
Arm length	4000mm
Main luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤17s/≤11s
-Rise boom(Electrical/Diesel)	≤21s/≤11s
Auxiliary luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤20s/≤11s
-Rise boom(Electrical/Diesel)	≤9s/≤6s
Outrigger
-Full stretching(Electrical/Diesel)	≤16s/≤11s
-Full retracting(Electrical/Diesel)	≤12s/≤10s
Outrigger distance
-Lengthways	4500mm
-Transversal	4200mm
Travelling System
Max. travelling speed	15km/h
Min. turning radius	7.6m
Max. gradeability	10%
Min. ground clearance	250mm
Max. traction force	100kN
Approach angle	15.0°
Departure angle	15.0°
Braking distance(Speed:15km/h)	≤6.5m
Operating weight	25000kg(Including clam shell)

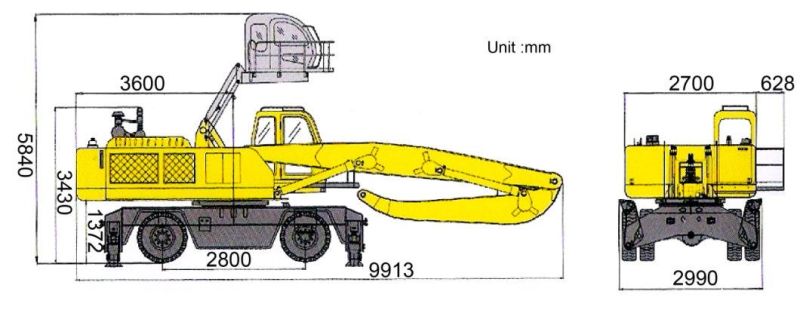

Dimension
Overall length	10800mm
Overall width	3000mm
Overall height	3430mm
Wheelbase	2800mm
Max.lifting height of cab	5840mm
Rear-end length/Slewing radius	3600mm
Counterweight clearance	1372mm
Upperstructure width	2700mm
