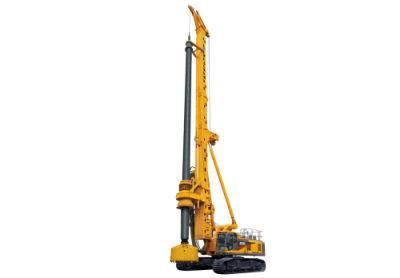

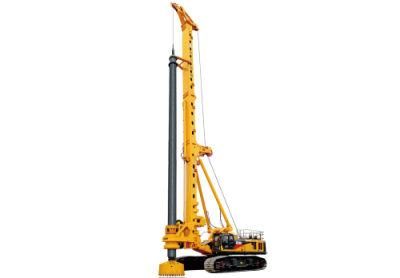

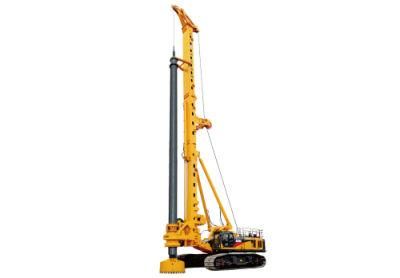

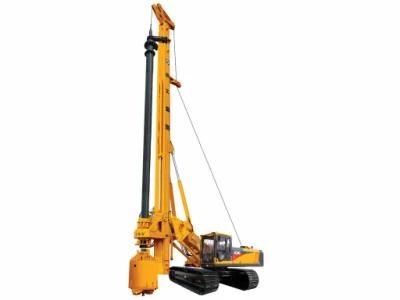

Xr400d Construction Hydraulic Rotary Piling Drilling Rig
Shanghai Super-Above Industry Holdings Co., Ltd.- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
Base Info
- Model NO.：xr400
- Power Source：Diesel
- Motor Power：373kw
- Noise：Without Noise
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Max Drilling Diameter：3000mm
- Max Drilling Depth：108m
- Application：Construction Work
- Advantage：Long Life Time
- After Sales Service：Engineers Serve Machinery Oversea, Free Spare Part
- Engine：Cummins 373kw
- Work Pressure：35MPa
- Max Torque：400kn.M
- Rotational Speed：7-23 R,Min
- Slewing Angle：360
- Dimension：10530 X 5100 X 28572mm
- Certificate：Ce ISO TUV
- Transport Package：Nude Packing
- Specification：132T
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8430509000
- Production Capacity：10000PC,Year
Description
XR400D rotary piling rigEngine Engine Brand CUMMINS Engine Type QSX15-C500 Rated Power kW 373kW Rotary Drive Max output torque kN . m 400 Rotary speed r/min 7~23 Max Drilling Diameter mm 3000 Max Drilling Depth m 108 Crowd Cylinder Max pull-down piston push kN 300 Max pull-down piston pull kN 400 Max pull-down piston stroke m 6 Crowd Winch Max pull-down piston push kN 300 Max pull-down piston pull kN 400 Max pull-down piston stroke m 16 Main Winch Max Pulling force kN 420 Max line speed m/min 60 Auxiliary Winch Max Pulling force kN 100 Max line speed m/min 65 Mast Rake Side 0 ± 50 Forwards ± 50 Backwards ± 150 Undercarrige Max traveling speed km/h 1.3 Max grade ability % 35 Min Clearance mm 450 Track shoe width mm 900 Distance between tracks mm 3700 ~ 5100 Hydraulic System Working pressure Mpa 32 Overall Drilling Weight tons 132 Dimension Working condition mm 10530 x 5100 x 28572 Transportation condition mm 18025 x 3700 x 3500

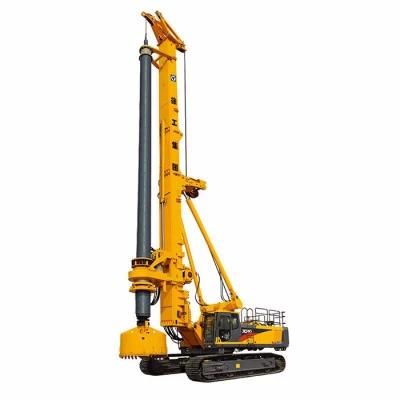

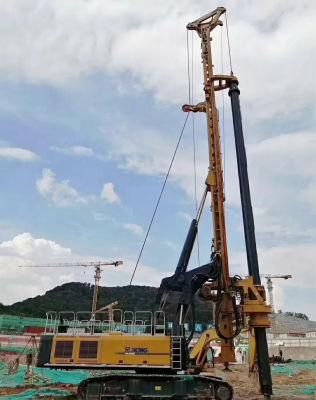

Details Photo:
Transportation:
Details Photo:
Transportation:
