• Model NO.：XR360
• Power Source：Diesel
• Motor Power：298kw
• Noise：Without Noise
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Max Drilling Diameter：2500mm
• Max Drilling Depth：90m
• Application：Construction Work
• Advantage：Long Life Time
• After Sales Service：Engineers Serve Machinery Oversea, Free Spare Part
• Engine：Cummins 298kw
• Work Pressure：35MPa
• Max Torque：320kn.M
• Rotational Speed：5.5-21 R,Min
• Slewing Angle：360
• Dimension：10480×4800×25155mm
• Certificate：Ce ISO TUV
• Transport Package：Nude Packing
• Specification：93T
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8430412200
• Production Capacity：10000PC,Year

ModelXR360EngineModel Cummins QM11-C400Rated PowerKW298Rotary
DriveMax. Output TorqueKN.M360Rotary SpeedR/Min7~20Max. Drilling DiametermmΦ2500Max. Drilling DepthM92/102Pull-Down
CylinderMax. Pull-down Piston PushKN240Max. Pull-down Piston PullKN250Max. Pull-down Piston StrokeM6Main
WinchMax. Pulling ForceKN320Max. Line SpeedM/Min72Auxiliary
WinchMax. Pulling ForceKN 80Max. Line SpeedM/Min65Mast RakeSide/Forwards/Backwards±4°/5°/15°UndercarrigeMax. Traveling SpeedKM/H1.5Max. Grade Ability%35Min. Clearancemm445Track Shoe Widthmm800Distance between Tracksmm3500~4800Hydraulic System        Working PressureMPA35Overall Drilling WeightT92DimesionWorking Conditionmm11000x4800x24586Transportation Conditionmm17380x3500x3810

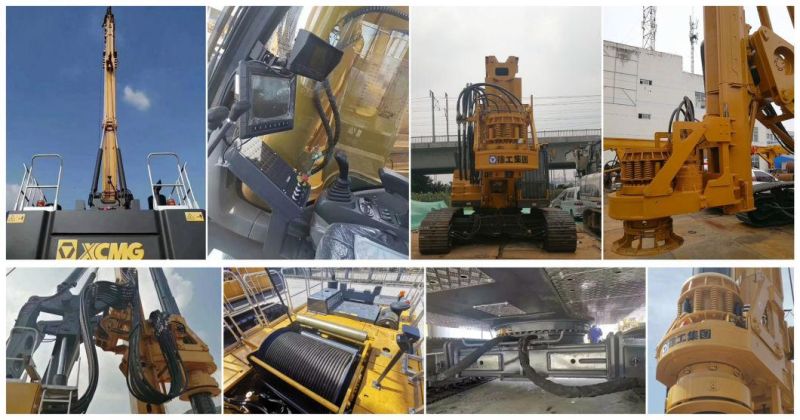

Details Photo:

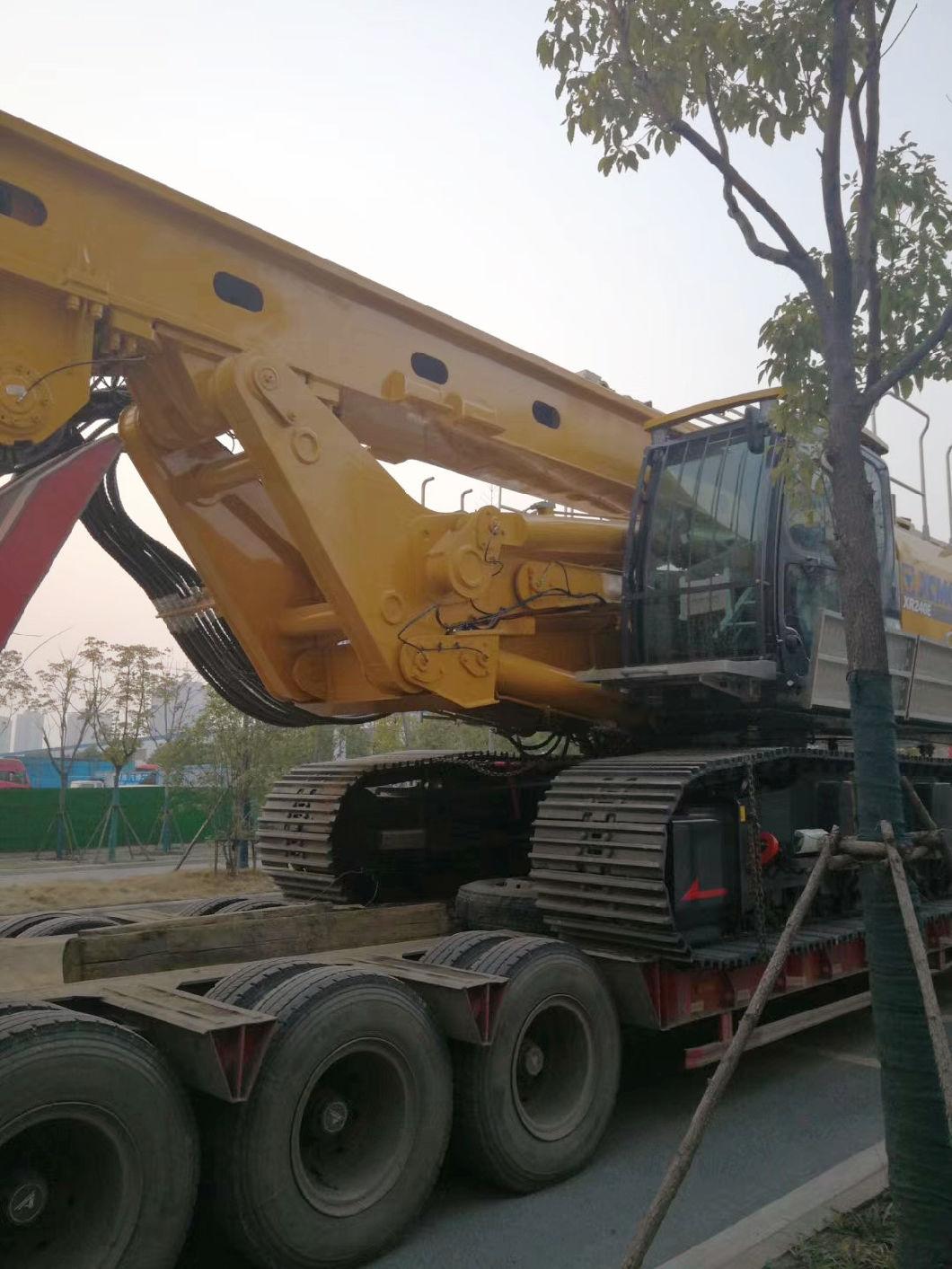

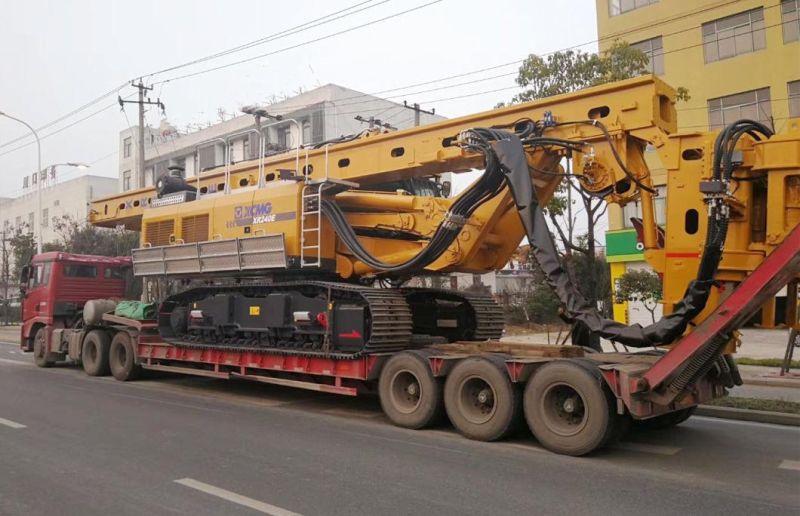

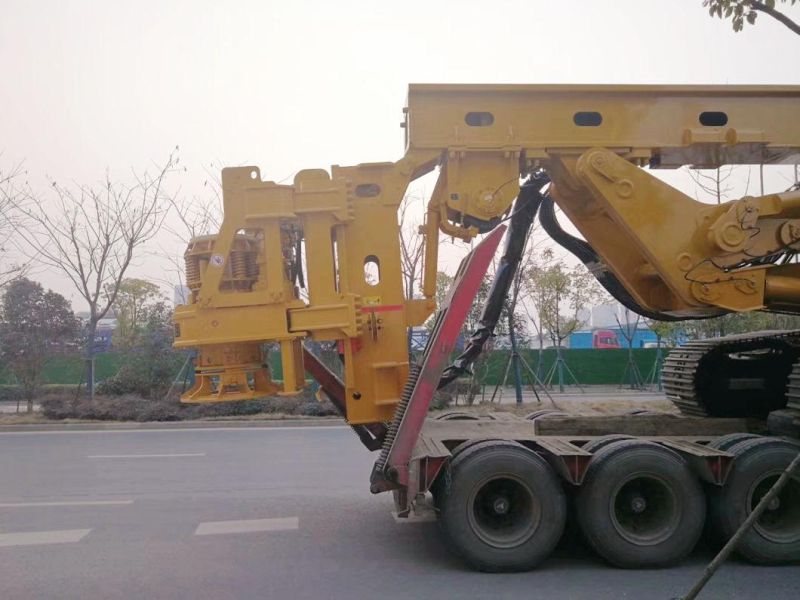

Transportation:
