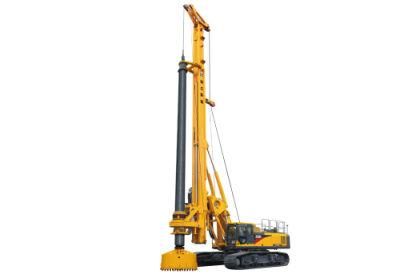

102m Depth Hydraulice Crawler Drilling Rig with Cummins Engine Xr400

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Pressure Pile Driver Type：Hydraulic Pile Driver
  • Pile Hammer Type：Hydraulic Hammer

Base Info

  • Model NO.：XR400D
  • Power Source：Diesel
  • Motor Power：373kw
  • Noise：Without Noise
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Max Drilling Diameter：3000mm
  • Max Drilling Depth：108m
  • Application：Construction Work
  • Advantage：Long Life Time
  • After Sales Service：Engineers Serve Machinery Oversea, Free Spare Part
  • Engine：Cummins 373kw
  • Work Pressure：35MPa
  • Max Torque：400kn.M
  • Rotational Speed：7-23 R,Min
  • Slewing Angle：360
  • Dimension：10530 X 5100 X 28572mm
  • Certificate：Ce ISO TUV
  • Transport Package：Nude Packing
  • Specification：132T
  • Trademark：Super-above
  • Origin：Jiangsu, China
  • HS Code：8430509000
  • Production Capacity：10000PC,Year

Description

XR400D rotary piling rigEngineEngine BrandCUMMINSEngine TypeQSX15-C500Rated PowerkW373kWRotary DriveMax output torquekN . m400Rotary speedr/min7~23Max Drilling Diametermm3000Max Drilling Depthm108Crowd CylinderMax pull-down piston pushkN300Max pull-down piston pullkN400Max pull-down piston strokem6Crowd WinchMax pull-down piston pushkN300Max pull-down piston pullkN400Max pull-down piston strokem16Main WinchMax Pulling forcekN420Max line speedm/min60Auxiliary WinchMax Pulling forcekN100Max line speedm/min65Mast RakeSide0± 50Forwards± 50Backwards± 150UndercarrigeMax traveling speedkm/h1.3Max grade ability%35Min Clearancemm450Track shoe widthmm900Distance between tracksmm3700 ~ 5100Hydraulic SystemWorking pressureMpa32Overall Drilling Weighttons132DimensionWorking conditionmm10530 x 5100 x 28572Transportation condition mm18025 x 3700 x 3500
Details Photo:

102m Depth Hydraulice Crawler Drilling Rig with Cummins Engine Xr400

Transportation:

102m Depth Hydraulice Crawler Drilling Rig with Cummins Engine Xr400102m Depth Hydraulice Crawler Drilling Rig with Cummins Engine Xr400
102m Depth Hydraulice Crawler Drilling Rig with Cummins Engine Xr400


102m Depth Hydraulice Crawler Drilling Rig with Cummins Engine Xr400
