Farm Machinery Telescopic 3000kg Wheel Loader

QINGDAO SATA IMPORT AND EXPORT CO., LTD.
  • Certification：UL, ISO, CE
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：TL3000
  • Type：Small Loader
  • Name：Telescopic Loader
  • Boom Type：Telescopic Boom Loader
  • Steering Type：Full Wheel Steering
  • Attachments：Quick Hitch, Fork, Bucket, Clamp, Platform
  • Color：Yellow, White, Green, Red, Customize
  • Usage for Farming：Telescopic Loader with Bale Grapple
  • Usage for Construction：Telescopic Loader with Concrete Mixer
  • Shipment：by Container
  • Warranty：1 Year
  • Transport Package：Nude Package
  • Trademark：SATA
  • Origin：Shandong, China
  • HS Code：8427209000
  • Production Capacity：2000units,Year

Description

Engine modelYunnei brand,Diesel engineIn-line,water cooling,4-stroke,Four cylinderRate power:85KWRated speed:2400rpmOption:Cummins engine(74.5kw),EPA4 KOHLER/CUMMINS engineTransmissionHydraulic torque converter transmission;
Shaft wheel brakeBucket size1.5m3Bucket width2300mmBucket typeBucket with teethRated loading capacity3000kg(Including attachments)Kerb weight7100kgDimension68600x2300x2860mmMax lifting height6000mmPin axles height5400mmOperation systemSteering system,hydraulic steeringDriving modeHydraulic system,4WDQuick change systemKAT/Volvo /SMControl systemHydraulic lever controlBrake systemBrake system of safety auxiliary air disc brake;
Hand brakeTires16/70-24,Width:380mm,Diameter:1075mmwheelbase2430mmWheel track1700mmSystem pressure20MpaPressure output96L/minMore pictures:

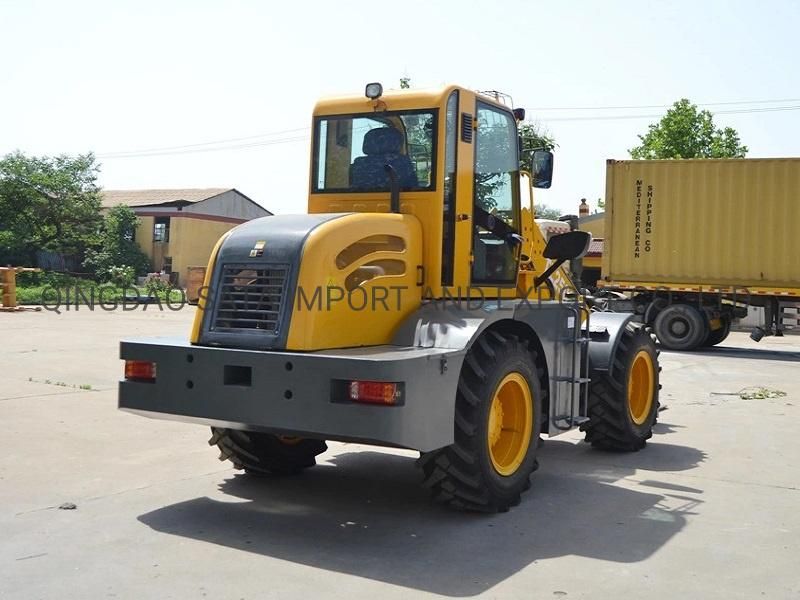

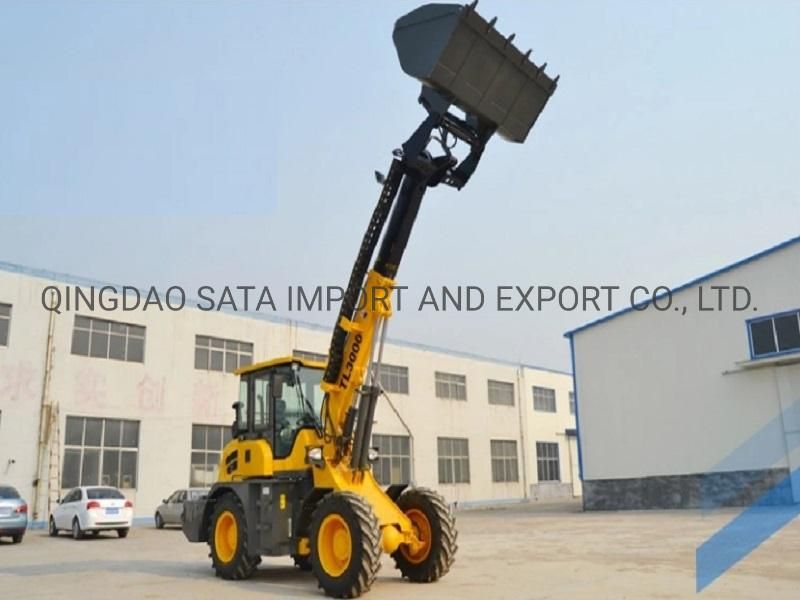

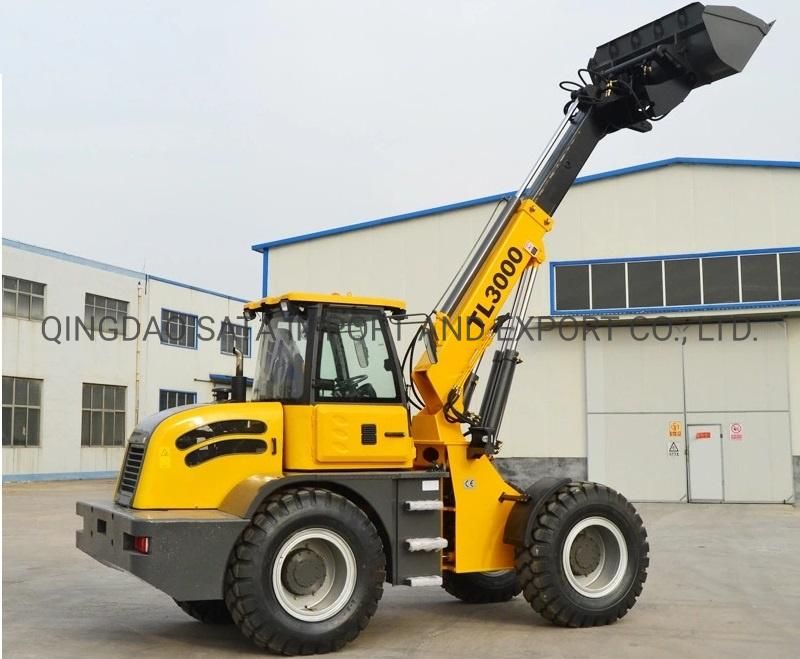

Farm Machinery Telescopic 3000kg Wheel Loader
Farm Machinery Telescopic 3000kg Wheel Loader
Farm Machinery Telescopic 3000kg Wheel Loader

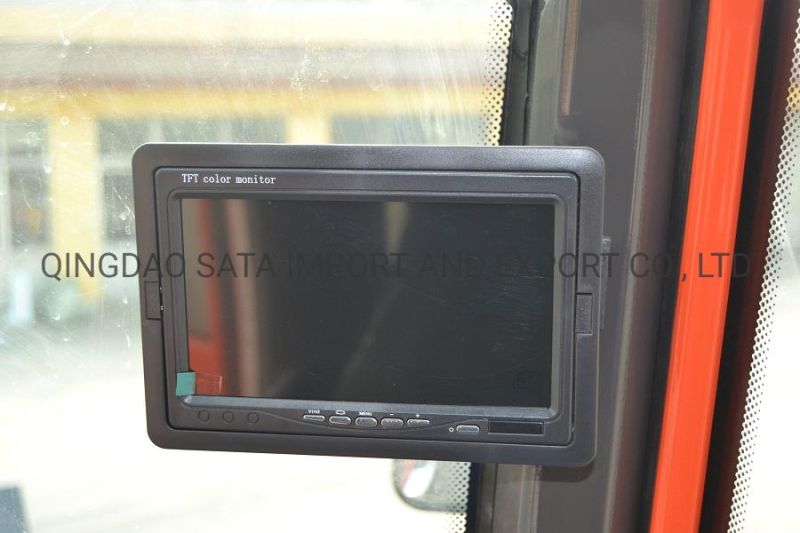

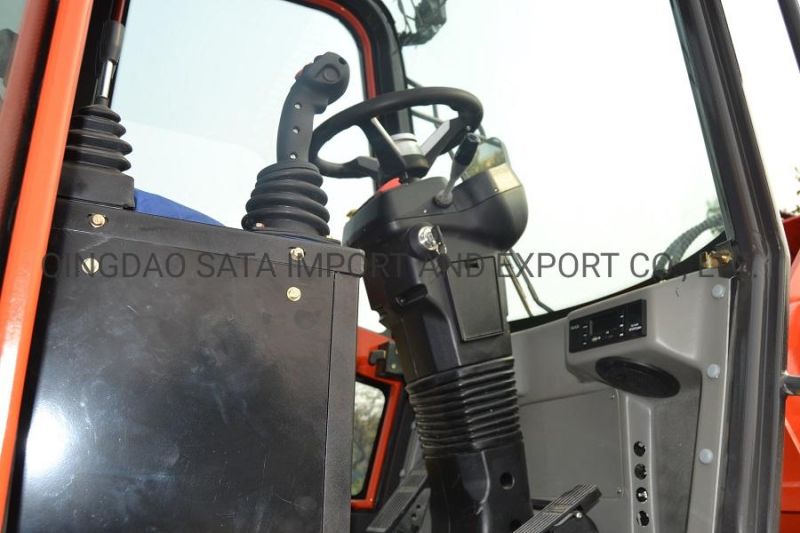

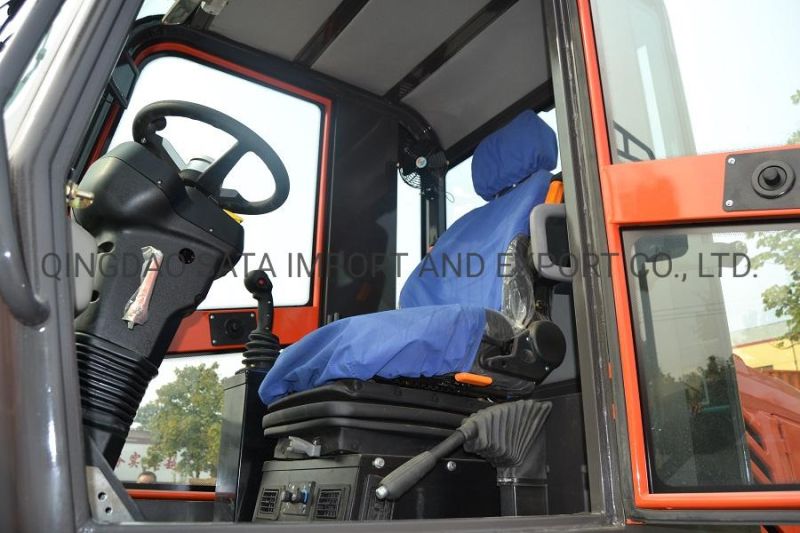

Detail show:
Farm Machinery Telescopic 3000kg Wheel Loader
Farm Machinery Telescopic 3000kg Wheel Loader
Farm Machinery Telescopic 3000kg Wheel Loader
Farm Machinery Telescopic 3000kg Wheel Loader

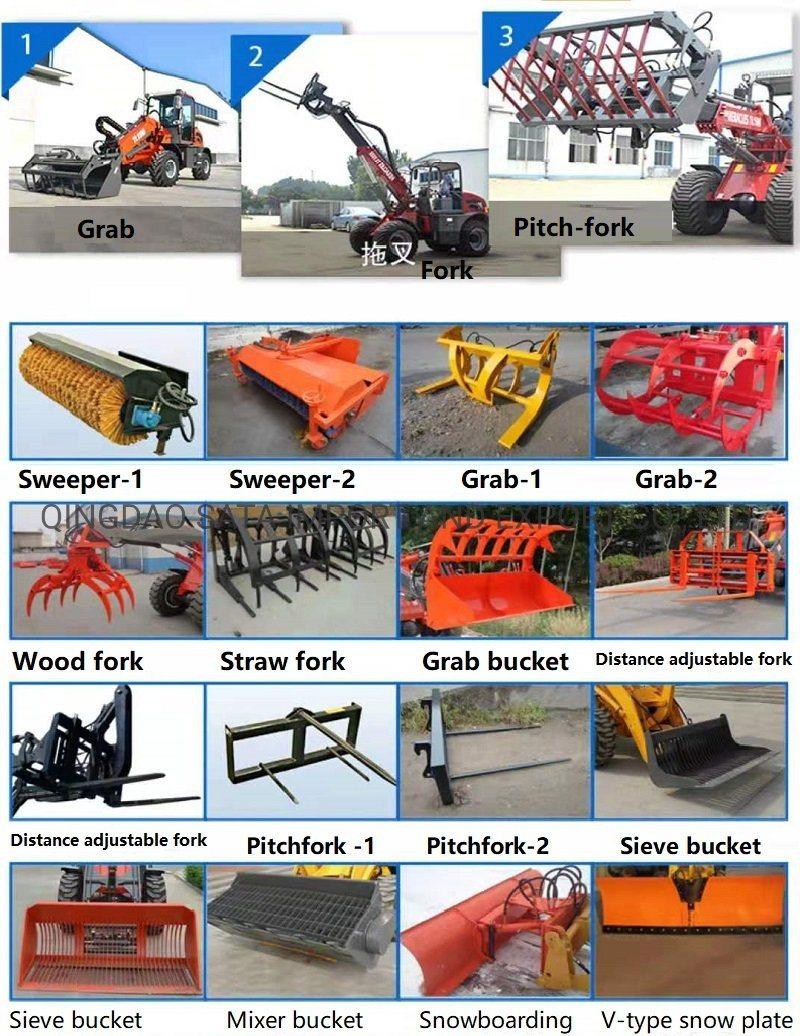

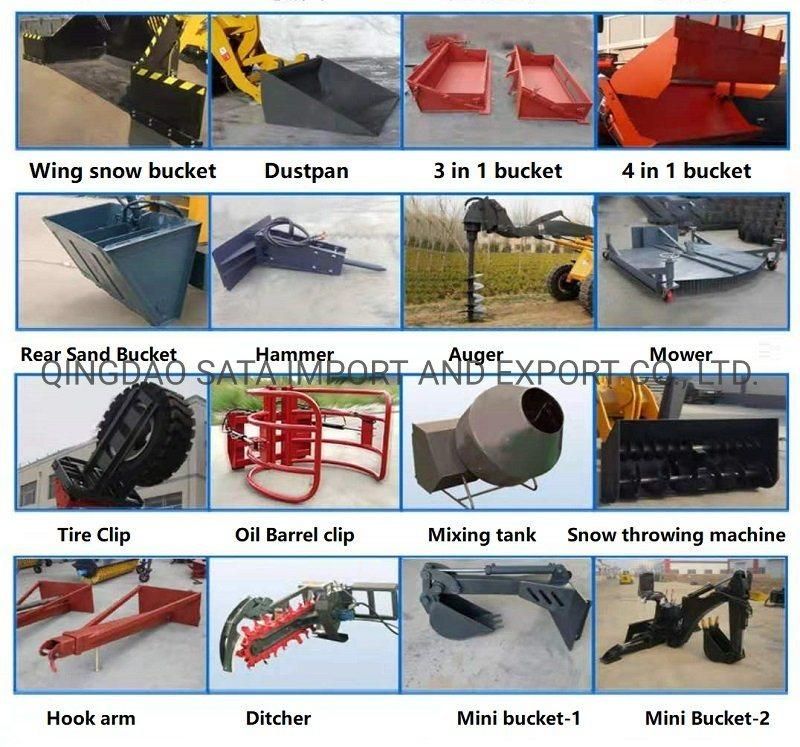

Attchments:
Farm Machinery Telescopic 3000kg Wheel Loader
Farm Machinery Telescopic 3000kg Wheel Loader

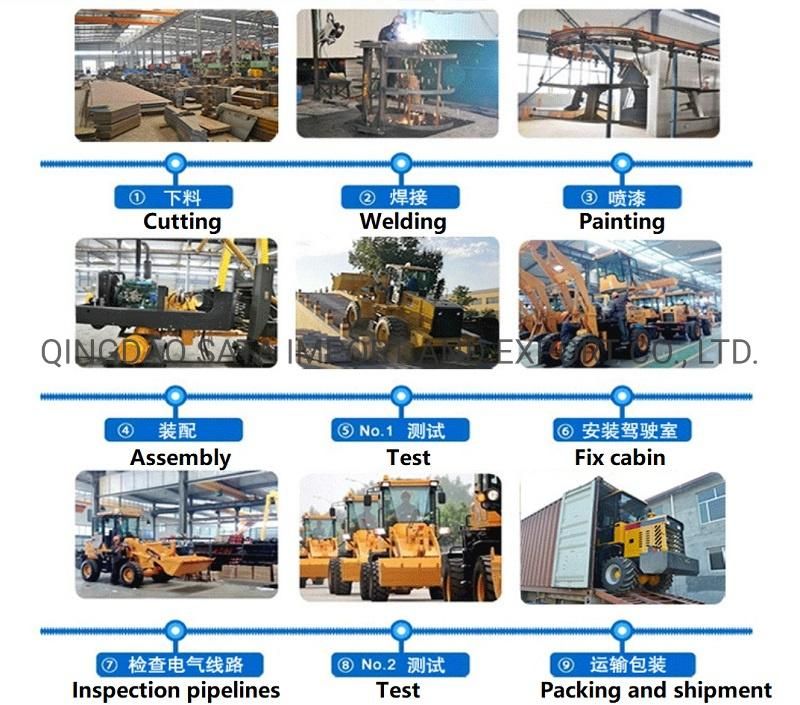

Factory show:
Farm Machinery Telescopic 3000kg Wheel Loader

Our service
Pre-Sales Service:After Sales Service:
* Inquiry and consulting support.
* Oversea sample testing support.
* Visiting our Factory.
* Transporting from factory to door		* Training how to install the machine,
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Warranty and whole working life service
