Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce

QINGDAO SATA IMPORT AND EXPORT CO., LTD.
  • Certification：UL, ISO, CE
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：TL2000
  • Type：Small Loader
  • Name：1.5ton Telescopic Loader
  • Boom Type：Telescopic Boom Loader
  • Steering Type：Full Wheel Steering
  • Attachments：Quick Hitch, Fork, Bucket, Clamp, Platform
  • Color：Yellow, White, Green, Red, Customize
  • Usage for Farming：Telescopic Loader with Bale Grapple
  • Usage for Construction：Telescopic Loader with Concrete Mixer
  • Shipment：by Container
  • Warranty：1 Year
  • Transport Package：Nude Package
  • Trademark：SATA
  • Origin：Shandong, China
  • HS Code：8427209000
  • Production Capacity：2000units,Year

Description

Engine modelYunnei brand,Diesel engineIn-line,water cooling,4-stroke,Four cylinderRate power:55KWRated speed:2400rpmOption:Yuchai engine(60KW/65KW),YTOE engine(58KW/62KW) Cummins engine(60kw),EPA4 KOHLER/CUMMINS engineTransmissionHydraulic torque converter transmission;
Shaft wheel brakeBucket size1m3Bucket width1900mmBucket typeBucket with teethRated loading capacity2000kg(Including attachments)Kerb weight5800kgDimension6600x2050x2700mmMax lifting height5000mmPin axles height4600mmOperation systemSteering system,hydraulic steeringDriving modeHydraulic system,4WDQuick change systemKAT / Volvo /SMControl systemHydraulic lever controlBrake systemBrake system of safety auxiliary air disc brake;
Hand brakeTires16/70-20,Width:380mm,Diameter:1075mmwheelbase2500mmWheel track1600mmSystem pressure20MpaPressure output96L/minMore pictures:
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce
Detail show:
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce

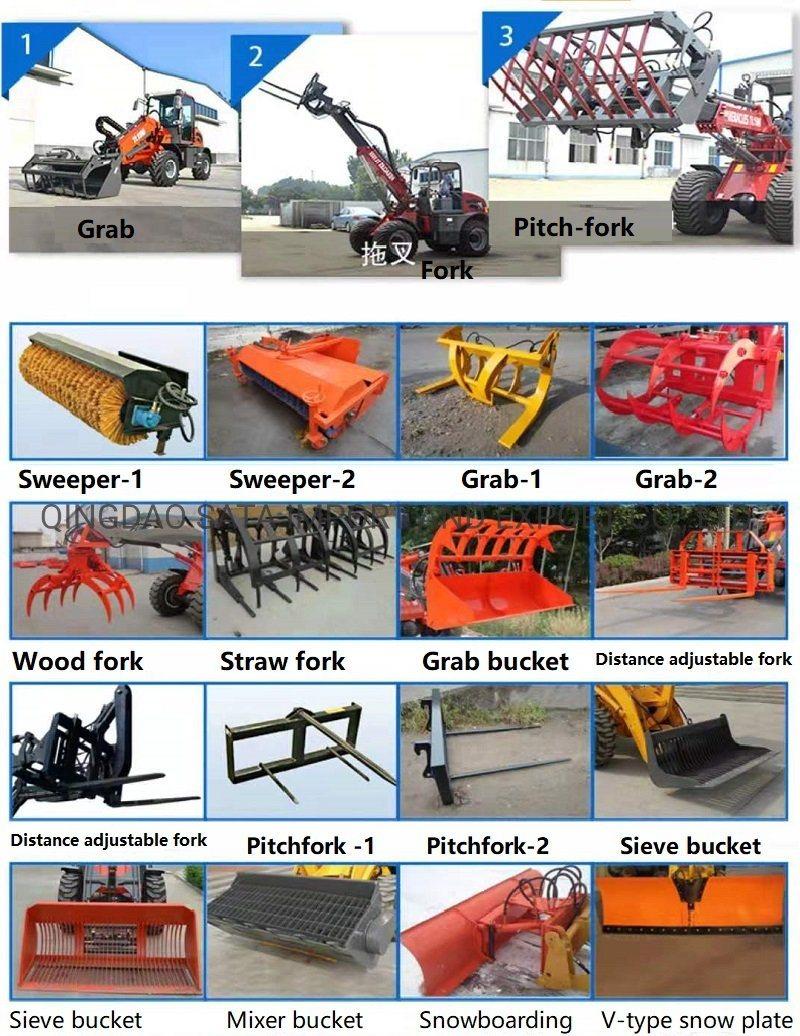

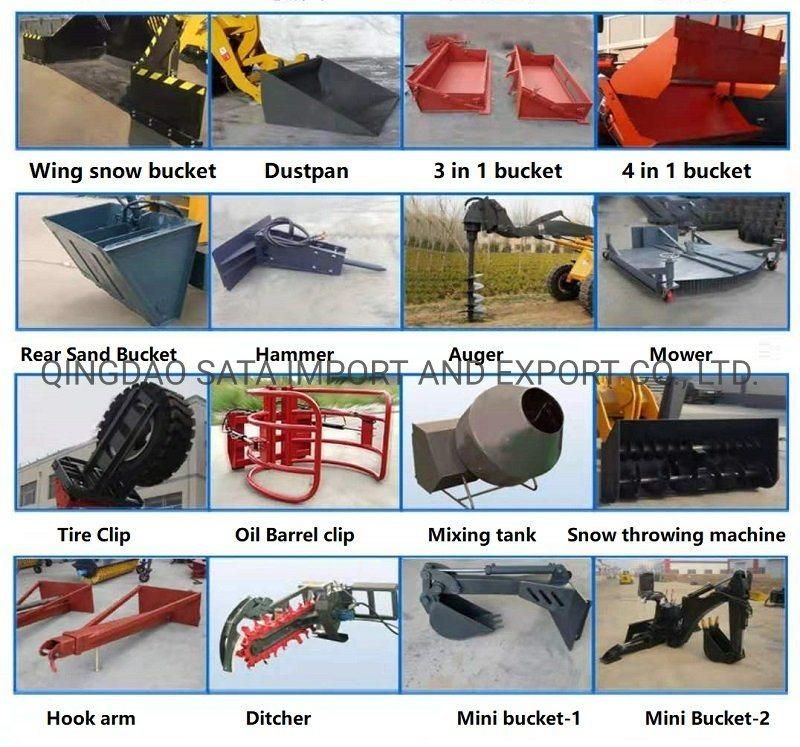

Attchments:
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce

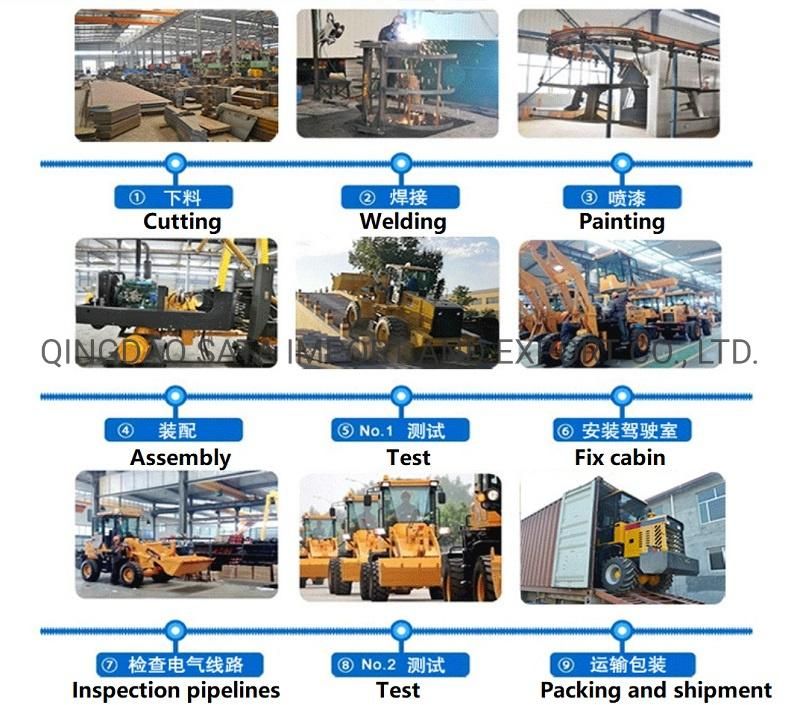

Factory show:
Agricultural Machinery Tl2000 Wheel Mini Telescopic Boom Loader with Ce

Our service
Pre-Sales Service:After Sales Service:
* Inquiry and consulting support.
* Oversea sample testing support.
* Visiting our Factory.
* Transporting from factory to door		* Training how to install the machine,
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Warranty and whole working life service
