China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price

QINGDAO SATA IMPORT AND EXPORT CO., LTD.
  • Certification：UL, ISO, CE
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：TL2000
  • Type：Small Loader
  • Name：Telescopic Loader
  • Boom Type：Telescopic Boom Loader
  • Steering Type：Full Wheel Steering
  • Attachments：Quick Hitch, Fork, Bucket, Clamp, Platform
  • Color：Yellow, White, Green, Red, Customize
  • Usage for Farming：Telescopic Loader with Bale Grapple
  • Usage for Construction：Telescopic Loader with Concrete Mixer
  • Shipment：by Container
  • Warranty：1 Year
  • Transport Package：Nude Package
  • Trademark：SATA
  • Origin：Shandong, China
  • HS Code：8427209000
  • Production Capacity：2000units,Year

Description

Engine modelYunnei brand,Diesel engineIn-line,water cooling,4-stroke,Four cylinderRate power:85KWRated speed:2400rpmOption:Cummins engine(74.5kw),EPA4 KOHLER/CUMMINS engineTransmissionHydraulic torque converter transmission;
Shaft wheel brakeBucket size1.5m3Bucket width2300mmBucket typeBucket with teethRated loading capacity3000kg(Including attachments)Kerb weight7100kgDimension68600x2300x2860mmMax lifting height6000mmPin axles height5400mmOperation systemSteering system,hydraulic steeringDriving modeHydraulic system,4WDQuick change systemKAT/Volvo /SMControl systemHydraulic lever controlBrake systemBrake system of safety auxiliary air disc brake;
Hand brakeTires16/70-24,Width:380mm,Diameter:1075mmwheelbase2430mmWheel track1700mmSystem pressure20MpaPressure output96L/minMore pictures:

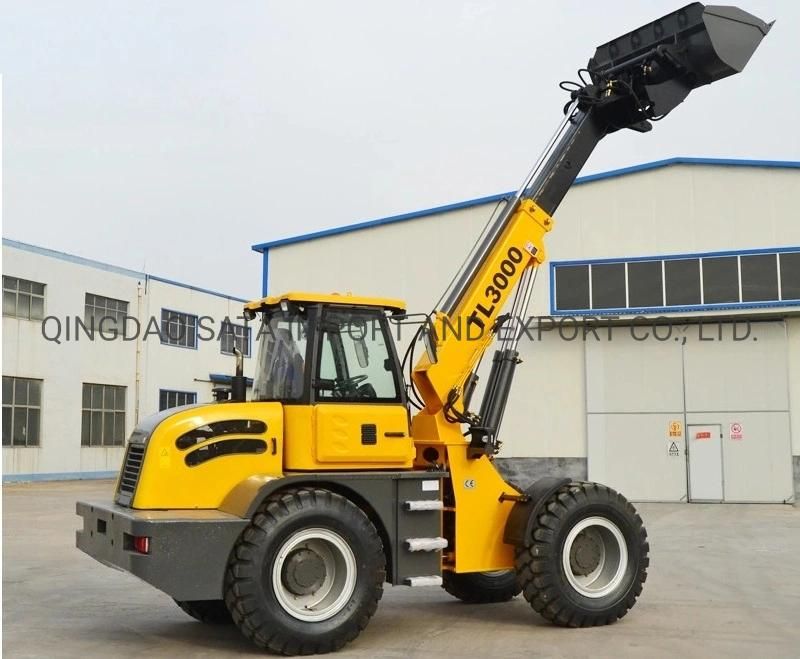

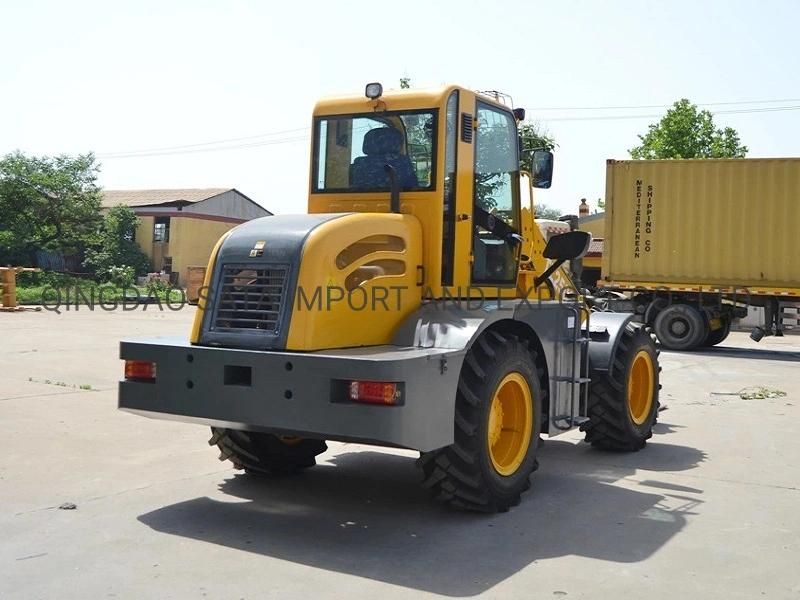

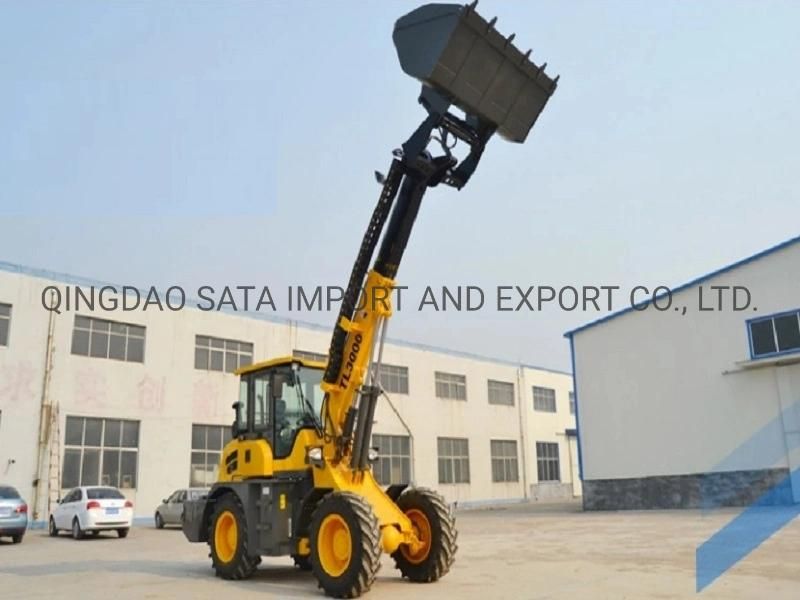

China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price

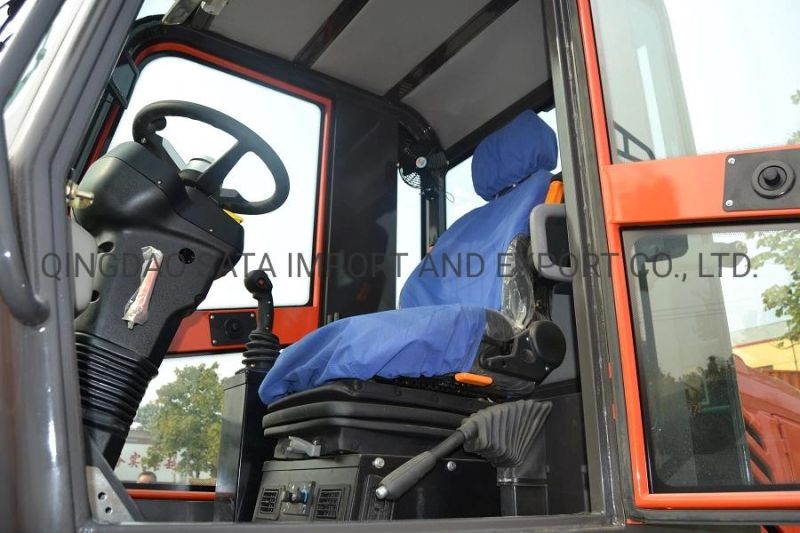

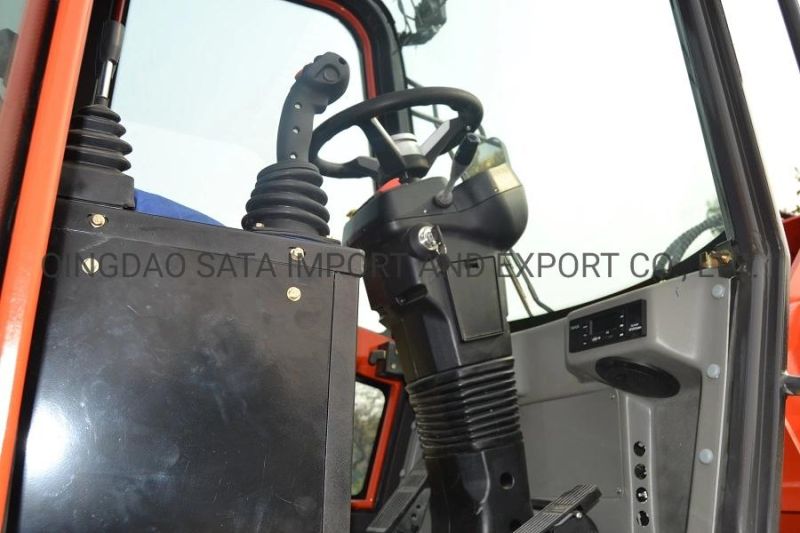

Detail show:
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price

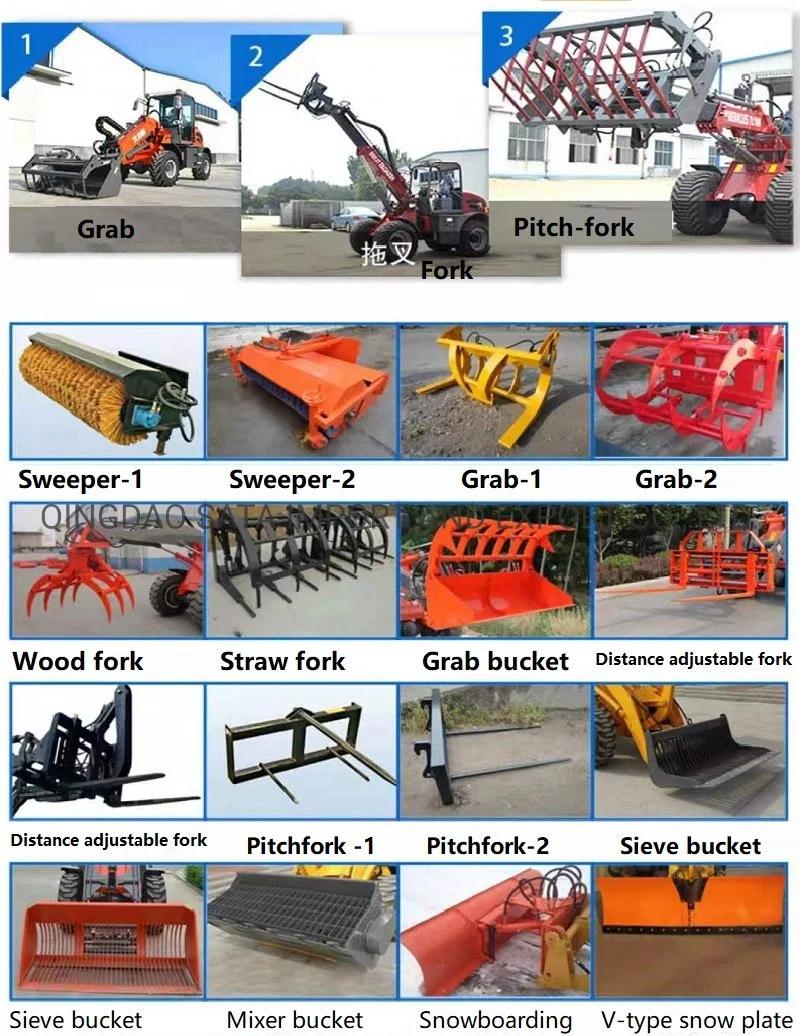

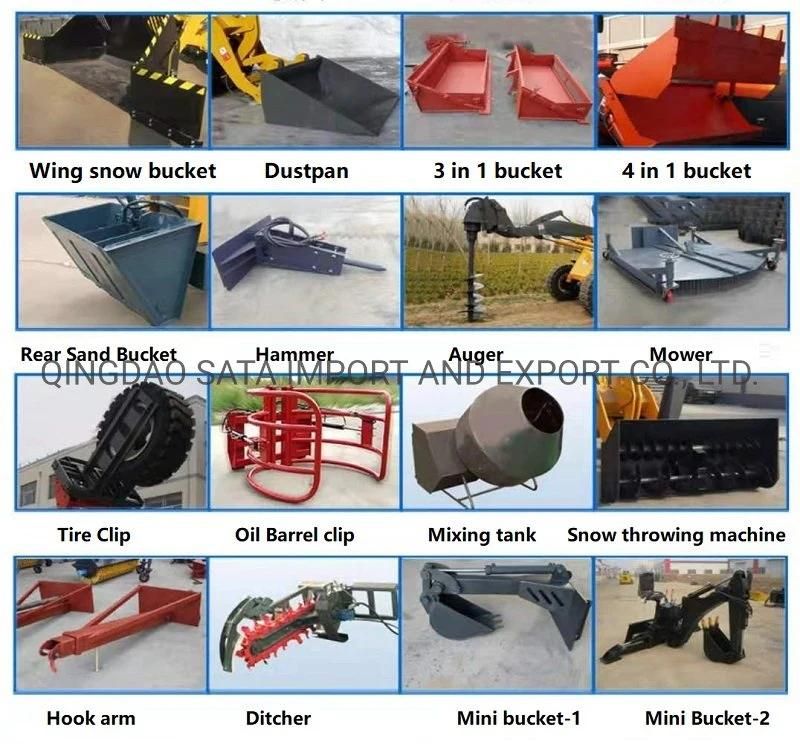

Attchments:
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price

Factory show:
China EPA4 Euro5 Multifunction Front Boom Telescopic Wheel Loader Price

Our service
Pre-Sales Service:After Sales Service:
* Inquiry and consulting support.
* Oversea sample testing support.
* Visiting our Factory.
* Transporting from factory to door		* Training how to install the machine,
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Warranty and whole working life service
