• Model NO.：ATV-9
• Size：Small-Scale
• Certification：CE, ISO9001: 2000, SGS
• Condition：New
• Warranty：2 Years
• Weight：550kgs
• Application：Digging,Assistant Excavating
• Featuress：ATV,UTV Towable Backhoe
• After-Sales Service Provided：Free Spare Parts,Video Technical Support,Online Su
• Engine：9,13,15HP Gasoline Engine
• Max Digging Depth：2400mm
• Stabilizer Width：1800mm
• Bucket Size：12 Inch
• Working Depth：8inch
• Bucket Width：220mm,300mm,400mm,500mm,600mm
• Color：Red,Blue,Black,Green,Orange,as Your Request
• Transport Package：Irong Crate Packing
• Specification：180X110X90 cm
• Trademark：GOOLER
• Origin：Shandong, China
• Production Capacity：5000 Pieces,Year

Basic Info.

Model NO. ATV-9 Size Small-Scale Certification CE, ISO9001: 2000, SGS Condition New Warranty 2 Years Weight 550kgs Application Digging,Assistant Excavating Featuress ATV/UTV Towable Backhoe After-Sales Service Provided Free Spare Parts,Video Technical Support,Online Su Engine 9/13/15HP Gasoline Engine Max Digging Depth 2400mm Stabilizer Width 1800mm Bucket Size 12 Inch Working Depth 8inch Bucket Width 220mm/300mm/400mm/500mm/600mm Color Red/Blue/Black/Green/Orange/as Your Request Transport Package Irong Crate Packing Specification 180X110X90 cm Trademark GOOLER Origin Shandong, China Production Capacity 5000 Pieces/Year

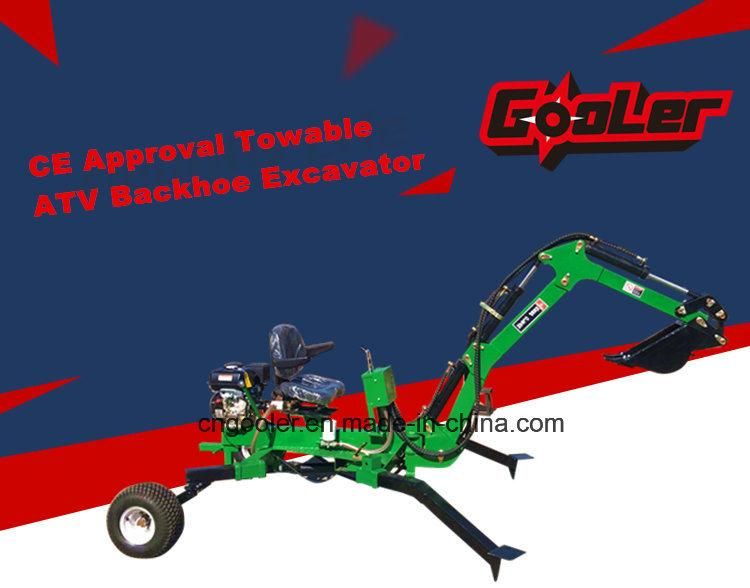

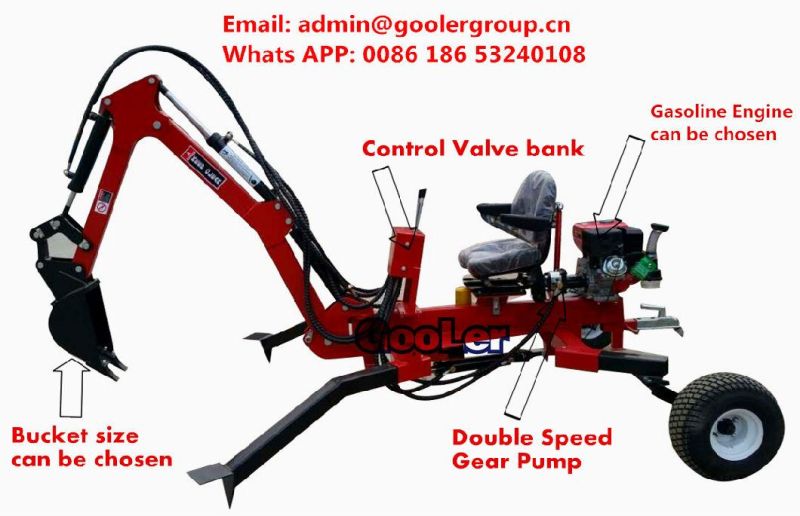

Product Description

 Features:

1) 9hp self powered backhoe

2) matched any trailer

3) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.

4) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting



Options for Additional Configuration:

1) 200mm, 300mm, 400mm, 500mm, 600mm wide extra buckets

2) 9HP Gasoline engine brand like Kohler, Honda, B&S etc.

3) Gasoline engine bigger power like 15HP.

4)Tyre can be changed as your request


MODEL	ATV-9
Power	9HP Gasoline engine
STRUCTURE WEIGHT	550kgs
MAX DIGGING DEEP	2400mm
MAX DIGGING RADIUS	2800mm
MAX DIGGING HEIGHT	2500mm
MAX UNLOADING HEIGHT	1200mm
STABILIZER WIDTH	1800mm
SWING ANGLE FOR BOOM	140 degree
BUCKET TURNNING ANGLE	160 degree
BUCKET CUBAGE	0.036m³
BUCKET WIDTH	Optional: 220mm/300mm/400mm/500mm,600mm
PUMP	DOUBLE SPEED GEAR PUMP
COUPLER SIZE	2" BALL FOR EASY TOWING
DIMENSIONS (L x W x H)	1800mmx1100mmx900mm

_Packaging

Selling Units: Single Item

Single Package Size: 180 X 110 X 190cm

Single Gross Weight: 550kg

Package Type: Iron Frame Packing or Wooden Packing.
                         For One Sample 1800mm X 1100mm X 900 mm Iron Frame Package                           With Film Dustcover.
                        For Container Then 3pcs in One 2200mm X 900mm X 2550mm Iron                            Frame Package With Film Dustcover
