China Top Brand Dt3 3-4t/H Drummed Asphalt Melter Machine
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Drummed Asphalt Melter
- Object：Soil Surface
- Moving Type：Fixed
- Mixing Method：Intermittent Compulsory
- Automatic Grade：Automatic
- Product Capacity：3-4t,H
Base Info
- Model NO.：DT3
- Certification：ISO9001: 2000
- Condition：New
- Bitumen Heating Temperature：120-140 C
- Bitumen Barrel Capacity：20PCS
- Gross Power：36kw
- Gross Weight：17000kg
- Transport Package：Nude Package
- Specification：8000x1750x2560mm
- Trademark：Dagang
- Origin：China
- Production Capacity：10000
Description
Basic Info.
Model NO. DT3 Certification ISO9001: 2000 Condition New Bitumen Heating Temperature 120-140 C Bitumen Barrel Capacity 20PCS Gross Power 36kw Gross Weight 17000kg Transport Package Nude Package Specification 8000x1750x2560mm Trademark Dagang Origin China Production Capacity 10000Product Description
China Top Brand Dt3 3-4t/H Drummed Asphalt Melter MachineFeatures:
Drummed bitumen is widely used since it is easy for transportation and storage.
Dagang DT3 Drum Bitumen Decanter is designed for fast melting and loading the bitumen from the barrel to your application equipment continuously and smoothly.
Parameter:
Model | DT3 | DT6 | DT8 |
Productivity (t/h) | 3-4 | 6-8 | 8-10 |
Bitumen heating temperature(°C) | 120-140 | 120-140 | 120-140 |
Bitumen barrel capacity(pcs) | 20 | 32 | 44 |
Heat transfer oil heating furnace capacity(kcal/h) | 30×104 | 50×104 | 60×104 |
Heat transfer oil working temperature (°C) | 200-240 | 200-240 | 200-240 |
Gross power (kW) | 36 | 38 | 38 |
Gross Weight (kg) | 17000 | 22000 | 28000 |
Overall dimension(L×W×H) (mm) | 8000×1750×2560 | 9050×2550×2560 | 12000×2550×2560 |

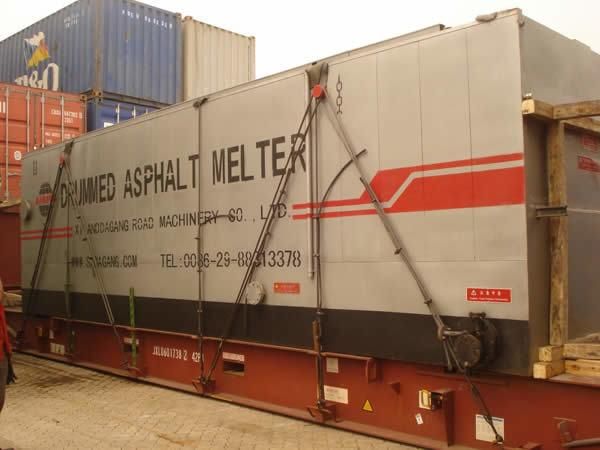

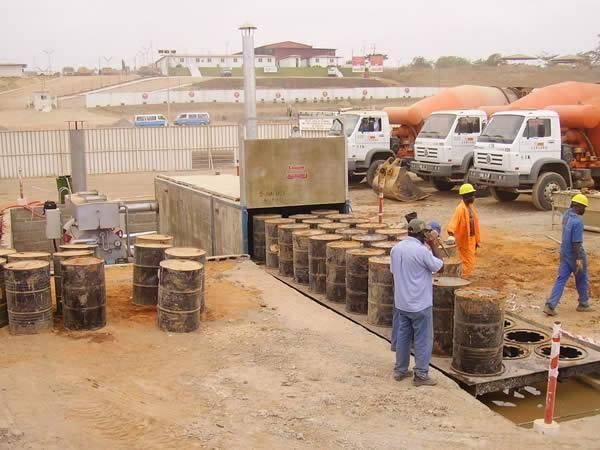

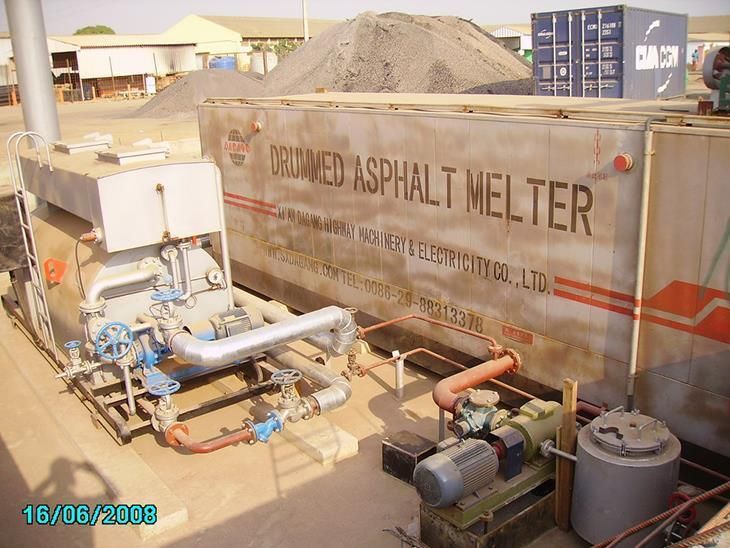

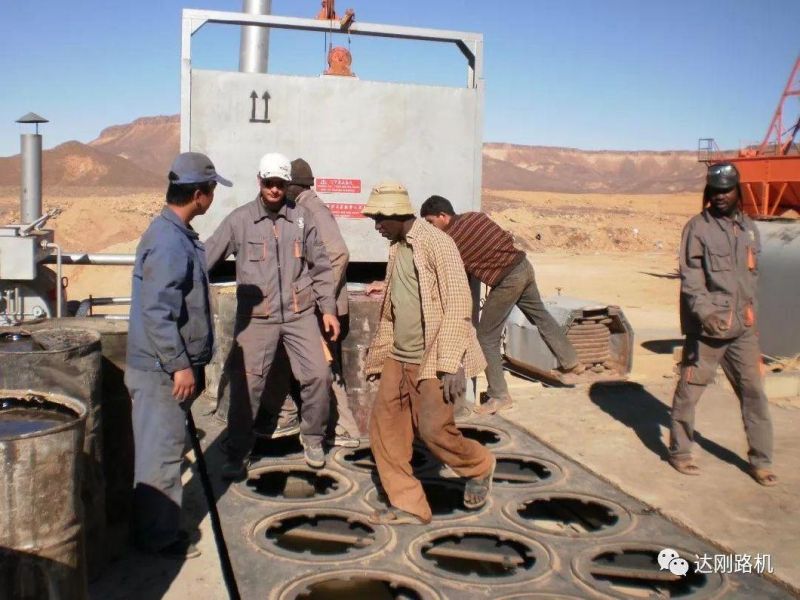

Pictures:
