• Model NO.：SD22S
• Condition：New
• Color：Yellow
• Operating Weight (Kg)：23450kg
• Rated Power/Rated Speed (Kw/Rpm)：175,1850
• Center Distance of Track (mm)：2000
• Fuel Tank (L)：450
• Digging Depth (mm)：540
• Transport Package：Nude
• Specification：220hp
• Trademark：Shantui
• Origin：China
• HS Code：8429119000
• Production Capacity：100units Per Month

Basic Info.

Model NO. SD22S Condition New Color Yellow Operating Weight (Kg) 23450kg Rated Power/Rated Speed (Kw/Rpm) 175/1850 Center Distance of Track (mm) 2000 Fuel Tank (L) 450 Digging Depth (mm) 540 Transport Package Nude Specification 220hp Trademark Shantui Origin China HS Code 8429119000 Production Capacity 100units Per Month

Product Description

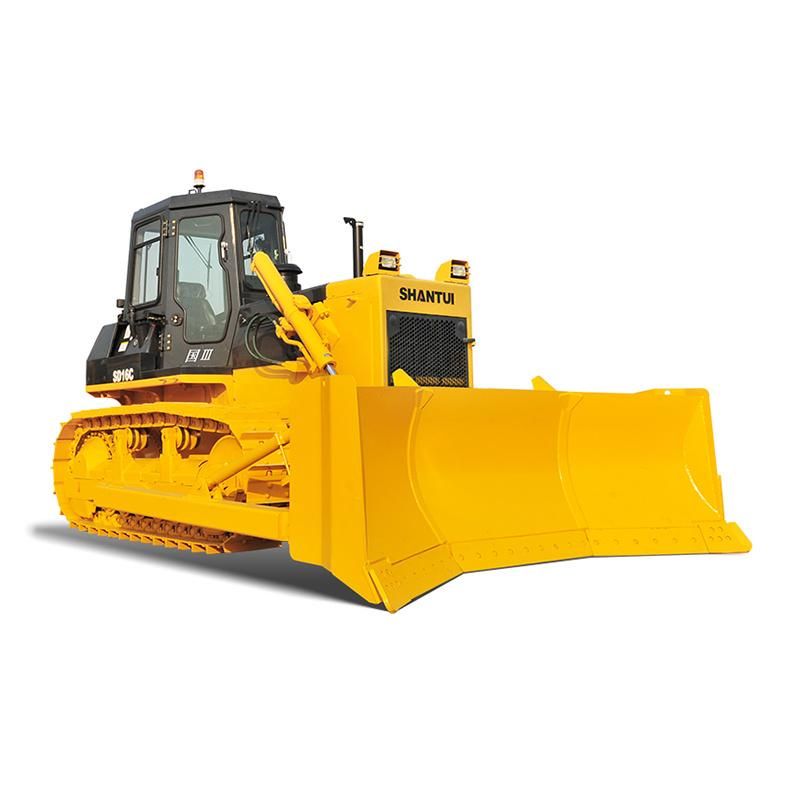

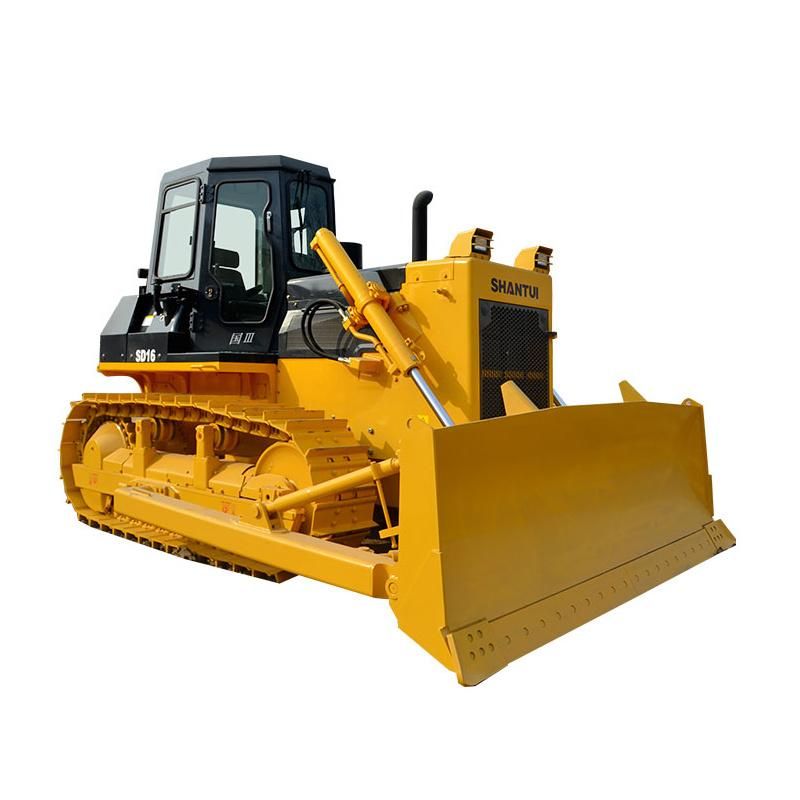

Shantui New Price Mini Bulldozer With Good Quality

With 175kW/1800rpm, this engine conforms to China-III emission regulation.

Power System

The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

The rated power reaches 175kW, featuring high torque reserve coefficient.

The radially sealed intake system is applied to effectively prolong the engine life.

Drive system

The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.


Driving/Riding Environment

The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.

The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.

The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.

Working adaptability

Shantui's stable and reliable chassis system is applicable to diversified severe working conditions.

The product features long ground length, high ground clearance, stable driving, and good trafficability.

The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability

Parameter name	SD22 (Standard version)	SD22C (Coal version)	SD22W (Rock version)	SD22F (Forestry version)	SD22D (Desert version)	SD22E (Extended version)	SD22R (Environmental sanitation version)	SD22S (Wetland version)
Performance parameters
Operating weight (Kg)	23450	24000	23600	24700	24600	24600	26000	25700
Ground pressure (kPa)	66	57.5	66	64	56	66	36	35.2
Engine
Engine model	WP12/QSNT-C235	WP12/QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235	WP12/QSNT-C235	WP12/QSNT-C235
Rated power/rated speed (kW/rpm)	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800
Overall dimensions
Overall dimensions of machine (mm)	5495*3725*3402	5820*4200*3402	5495*3725*3402	5495*3725*3402	5495*3725*3402	5495*3725*3402	6290*4365*3745	6290*4365*3402
Driving performance
Forward speed (km/h)	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2
Reversing speed (km/h)	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2
Chassis System
Center distance of track (mm)	2000	2000	2000	2000	2000	2000	2250	2250
Width of track shoes (mm)	560/610/660	660	560/610/660	610/660	660	560/610/660	910	910
Ground length(mm)	2730	2730	2730	2730	3050	3050	3480	3480
Tank capacity
Fuel tank (L)	450	450	450	450	450	450	450	450
Working device
Blade type	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Coal blade	Rock straight tilting blade, rock angle blade, rock U-blade, and rock semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Sanitation blade	Straight tilting blade
Digging depth (mm)	540	538	540	540	540	540	550	550
Ripper type	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	--	--
Ripping depth (mm)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	--	--
