• Model NO.：LW180K
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Rated Operating Load：1800kg
• Bucket Capacity：0.9~1.1cbm
• Machine Weight：6200kg
• Dump Clearance at Maximum Lift：2650~2970mm
• Reach at Maximum Lift：900~1000mm
• Wheel Base：2300mm
• Rated Power/Speed：58,2400kw,Rpm
• Transport Package：Container, Roro, Bulk
• Specification：5980x2060x2950mm
• Trademark：Maxizm
• Origin：Xuzhou, China
• HS Code：842951000
• Production Capacity：500

Basic Info.

Model NO. LW180K Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Rated Operating Load 1800kg Bucket Capacity 0.9~1.1cbm Machine Weight 6200kg Dump Clearance at Maximum Lift 2650~2970mm Reach at Maximum Lift 900~1000mm Wheel Base 2300mm Rated Power/Speed 58/2400kw/Rpm Transport Package Container, Roro, Bulk Specification 5980x2060x2950mm Trademark Maxizm Origin Xuzhou, China HS Code 842951000 Production Capacity 500

Product Description

1 ton front end loader LW180K small wheel loader XCG for sale





Product description

1,The streamline exterior, large-view glasses, and arc ballast feature beautiful modeling and are in line with international mainstream level.

2,The extended wheelbase (2,300mm) design applied adapts to diversified super-heavy working conditions, with the stability leading the industry.

3,The engineering version leading Yuchai engine for small-sized loaders features China-II emission compliance.

4,The special high capacity torque converter ensures the maximum utilization of engine power.

5,The super-large luxury cab (1,550mm in longitudinal length) features large space and good visibility.

Parameter


Description	Unit	Parameter value
Rated operating load	kg	1800
Bucket capacity	m³	0.9~1.1
Machine weight	kg	6200
Dump clearance at maximum lift	mm	2650~2970
Reach at maximum lift	mm	900~1000
Wheel base	mm	2300
Tread	mm	1550
Max.breakout force	kN	≥58
Hydraulic cycle time-raise	s	5
Total hydraulic cycle time	s	≤8.5
Min. turning radius over tyres	mm	4470
Articulation angle	°	35
Gradeability	°	28
Tyre size		16/70-20
Overall machine dimension L×W×H	mm	5980×2060×2950
Model		YC4D80-T20
Rated Power/Speed	kW/rpm	58/2400

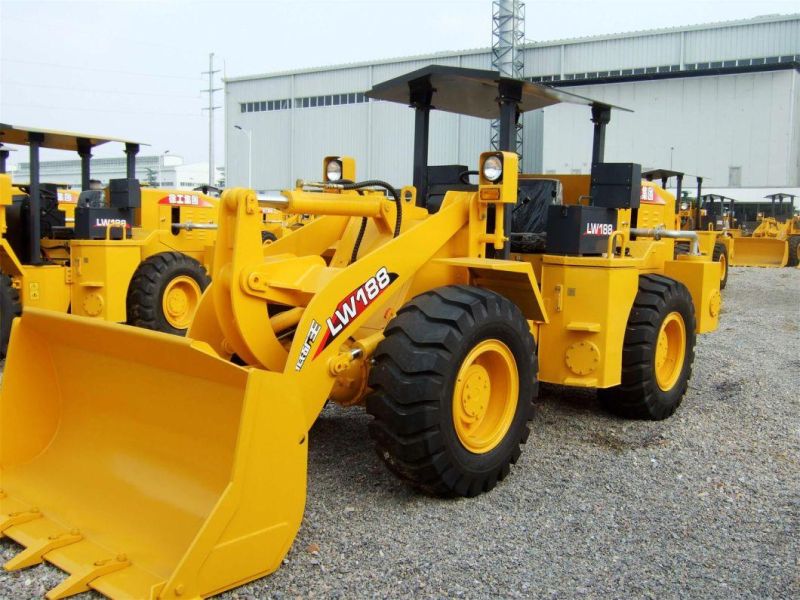

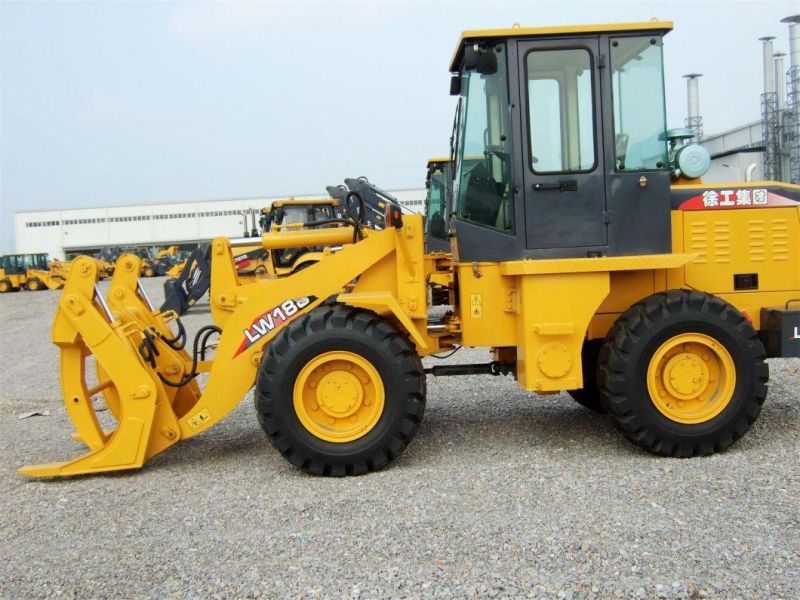

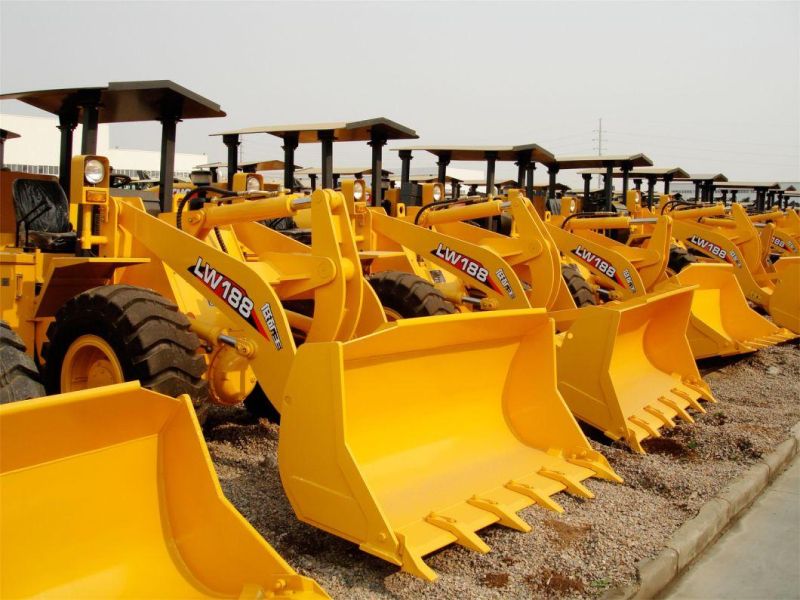

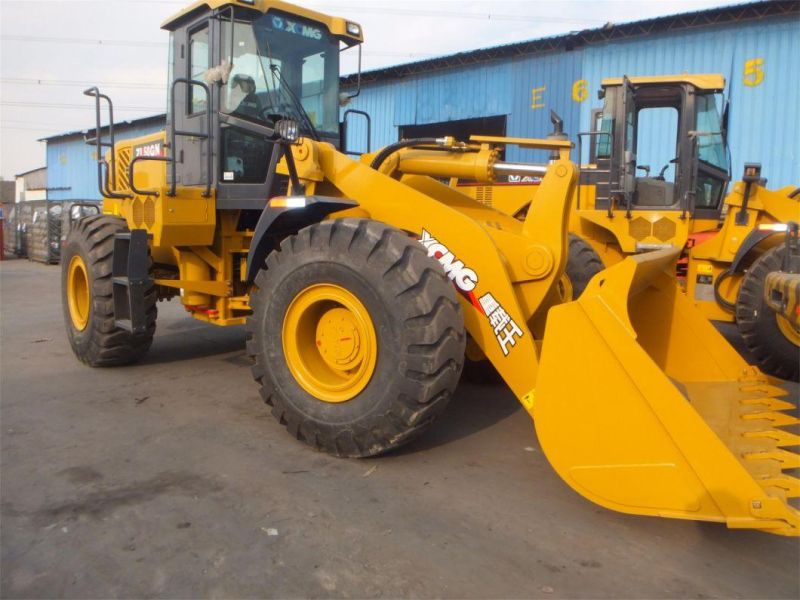

Product photos
