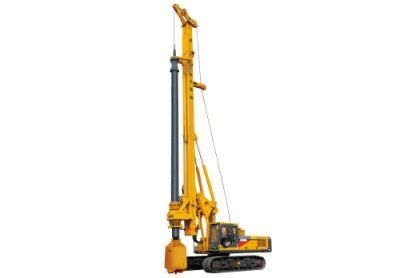

Xr220d Civil Construction Hydraulic Power Rotary Pile Drilling Machine
Shanghai Super-Above Industry Holdings Co., Ltd.- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
Base Info
- Model NO.：XR220D
- Power Source：Diesel
- Motor Power：242kw
- Noise：Without Noise
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Max Drilling Diameter：2000mm
- Max Drilling Depth：80m
- Application：Construction Work
- Advantage：Long Life Time
- After Sales Service：Engineers Serve Machinery Oversea, Free Spare Part
- Engine：Cummins 242kw
- Work Pressure：35MPa
- Max Torque：220kn.M
- Rotational Speed：7-22 R,Min
- Slewing Angle：360
- Dimension：8968 X 4400 X 22688mm
- Certificate：Ce ISO TUV
- Transport Package：Nude Packing
- Specification：78T
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8430412200
- Production Capacity：10000PC,Year
Description
EngineEngine Brand CUMMINS Engine Type QSL9 Rated Power kW 242 Rotary Drive Max output torque kN . m 220 Rotary speed r/min 7~22 Max Drilling Diameter mm 2000 Max Drilling Depth m 67(special designed 80) Crowd Cylinder Max pull-down piston push kN 200 Max pull-down piston pull kN 200 Max pull-down piston stroke m 5 Crowd Winch Max pull-down piston push kN 250 Max pull-down piston pull kN 250 Max pull-down piston stroke m 15 Main Winch Max Pulling force kN 230 Max line speed m/min 70 Auxiliary Winch Max Pulling force kN 80 Max line speed m/min 60 Mast Rake Side 0 ± 40 Forwards ± 50 Backwards ± 150 Undercarrige Max traveling speed km/h 1.5 Max grade ability % 35 Min Clearance mm 450 Track shoe width mm 800 Distance between tracks mm 3250 ~ 4400 Hydraulic System Working pressure Mpa 35 Overall Drilling Weight t 78 Dimension Working condition mm 8968 x 4400 x 22688 Transportation condition mm 16785 x 3250 x 4305
