Cummins Engine Hydraulic Crawler Core Drilling Rig Xr180

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Pressure Pile Driver Type:Hydraulic Pile Driver
  • Pile Hammer Type:Hydraulic Hammer

Base Info

  • Model NO.:SR180D
  • Power Source:Diesel
  • Motor Power:194kw
  • Noise:Without Noise
  • Certification:CE, ISO 9001:2000
  • Condition:New
  • Max Drilling Diameter:1800mm
  • Max Drilling Depth:60m
  • Application:Construction Work
  • Advantage:Long Life Time
  • After Sales Service:Engineers Serve Machinery Oversea, Free Spare Part
  • Engine:Cummins 194kw
  • Work Pressure:35MPa
  • Max Torque:180kn.M
  • Rotational Speed:6-33 R,Min
  • Slewing Angle:360
  • Dimension:8350X4200X20480mm
  • Certificate:Ce ISO TUV
  • Transport Package:Nude Packing
  • Specification:58T
  • Trademark:Super-above
  • Origin:Jiangsu, China
  • HS Code:8430412200
  • Production Capacity:10000PC,Year

Description

DescriptionUnitParameter valueMax. drilling diametermm1800Max. drilling depthmstandard configuration (5-section friction Kelly bar)46,optional configuration (4-section-locking Kelly bar)Allowable luffing scope (from center of drill rod to slewing center)mm3560~3900Drilling rig dimension in working condition (L × W × H)mm8350×4200×20480Drilling rig dimension in transport condition (L × W × H)mm14255×3000×3455Weight of overall unit (standard configuration, excluding drilling tool)t58EngineModel CUMMINS QSB6.7Rated power/speedkW194/(2200r/min)Max. working pressure of hydraulic systemMPa35Rotary driveMax. torquekN •m180Rotational speedr/min7~27Crowd cylinderMax. Pushing forcekN160Max. Pulling forcekN180Max. strokemm5000Main winchMax. pulling forcekN180Max. single-rope speedm/min65Diameter of the steel wire ropemm180Auxiliary winchMax. pulling forcekN50Max. single-rope speedm/min70Diameter of the steel wire ropemm16Drilling mastLeft/right inclination of mast°3/3Front/back inclination of mast°5/15Rotary table slewing angle°360TravelingMax. traveling speed of the overall unitkm/h1.5Max. climbable gradient of the overall unit%35CrawlerWidth of crawler platemm700External width of crawler (min.-max.)mm2960~4200Center distance between two longitudinal wheels of crawlermm4270Average ground pressurekPa94
Details Photo:

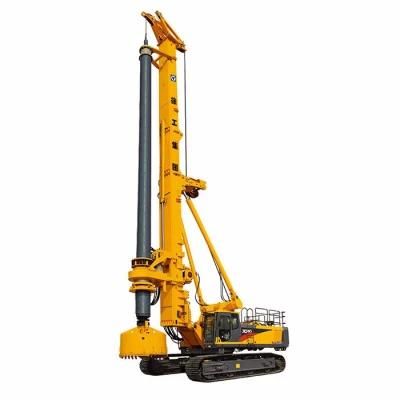

Cummins Engine Hydraulic Crawler Core Drilling Rig Xr180


Transportation:

Cummins Engine Hydraulic Crawler Core Drilling Rig Xr180Cummins Engine Hydraulic Crawler Core Drilling Rig Xr180
Cummins Engine Hydraulic Crawler Core Drilling Rig Xr180

Cummins Engine Hydraulic Crawler Core Drilling Rig Xr180
Cummins Engine Hydraulic Crawler Core Drilling Rig Xr180
