Hydraulic Piling Driver Xr220d 80m Depth Rotary Drilling Rigs

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Pressure Pile Driver Type:Hydraulic Pile Driver
  • Pile Hammer Type:Hydraulic Hammer

Base Info

  • Model NO.:xr220d
  • Power Source:Diesel
  • Motor Power:242kw
  • Noise:Without Noise
  • Certification:CE, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Max Drilling Diameter:2000mm
  • Max Drilling Depth:80m
  • Application:Construction Work
  • Advantage:Long Life Time
  • After Sales Service:Engineers Serve Machinery Oversea, Free Spare Part
  • Engine:Cummins 242kw
  • Work Pressure:35MPa
  • Max Torque:220kn.M
  • Rotational Speed:7-22 R,Min
  • Slewing Angle:360
  • Dimension:8968 X 4400 X 22688mm
  • Certificate:Ce ISO TUV
  • Transport Package:Nude Packing
  • Specification:78T
  • Trademark:Super-above
  • Origin:Jiangsu, China
  • HS Code:8430412200
  • Production Capacity:10000PC,Year

Description

EngineEngine BrandCUMMINSEngine TypeQSL9Rated PowerkW242Rotary DriveMax output torquekN . m220Rotary speedr/min7~22Max Drilling Diametermm2000Max Drilling Depthm67(special designed 80)Crowd CylinderMax pull-down piston pushkN200Max pull-down piston pullkN200Max pull-down piston strokem5Crowd WinchMax pull-down piston pushkN250Max pull-down piston pullkN250Max pull-down piston strokem15Main WinchMax Pulling forcekN230Max line speedm/min70Auxiliary WinchMax Pulling forcekN80Max line speedm/min60Mast RakeSide0± 40Forwards± 50Backwards± 150UndercarrigeMax traveling speedkm/h1.5Max grade ability%35Min Clearancemm450Track shoe widthmm800Distance between tracksmm3250 ~ 4400Hydraulic SystemWorking pressureMpa35Overall Drilling Weightt78DimensionWorking conditionmm8968 x 4400 x 22688Transportation condition mm16785 x 3250 x 4305

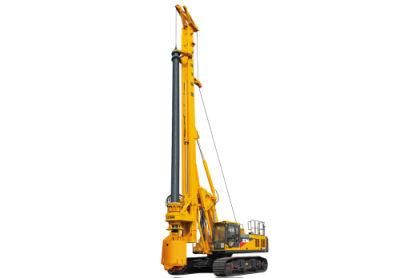

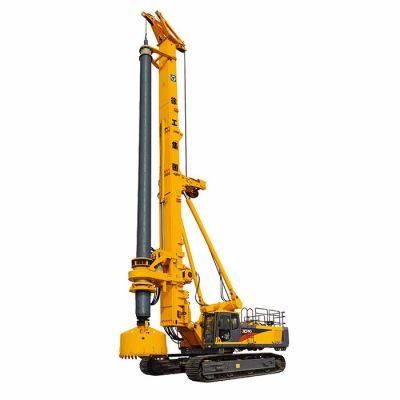

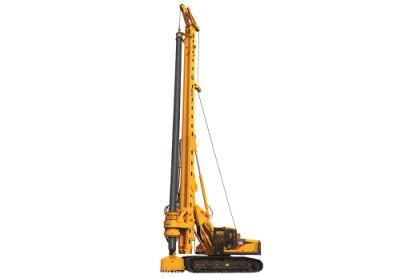

Details Photo:

Hydraulic Piling Driver Xr220d 80m Depth Rotary Drilling Rigs


Transportation:

Hydraulic Piling Driver Xr220d 80m Depth Rotary Drilling RigsHydraulic Piling Driver Xr220d 80m Depth Rotary Drilling Rigs
Hydraulic Piling Driver Xr220d 80m Depth Rotary Drilling Rigs


Hydraulic Piling Driver Xr220d 80m Depth Rotary Drilling Rigs
